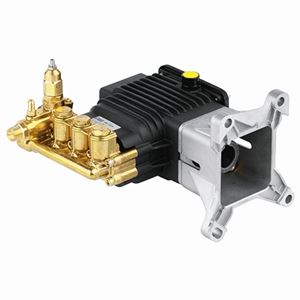

Picture of 4000PSI, 4.0GPM AR Direct Drive Pump with Unloader & Easy Start

4000PSI, 4.0GPM AR Direct Drive Pump with Unloader & Easy Start

SKU: RSV4G40HDF40EZ

Brand: Annovi Reverberi - AR North America

Only $256.43

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


This Annovi Reverberi / AR North America RSV4G40HDF40EZ / RSV4G40HD-F40EZseries pumps are designed to direct drive on gasoline engines ranging from 5 – 13 h.p. Intended use for medium to heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 500 hours at maximum performance of 4 gpm at 4,000 psi. The RSV is a result of our combined 60 years of pumps building experience and expertise


Features
• Triplex pump with Easy Start is smooth starting
• Features a compact and efficient intergraded unloader valve and fixed chemical injector
• Thermal relief valve included at no cost
• Built In easy start valve
• Forged brass head & valve covers
• Ceramic coated stainless steel plungers
• Direct drive with 4 bolt gas mounting flange


Specifications
• AR number on pump head RSV 4G40B
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 13.75 GHP
• Max. Fluid Temp.: 140° F.
• Inlet Port: 3/8" FPT
• Outlet Port: 3/8" Male NPT
• Oil capacity: 16 oz
• Replaces RSV4G40B
• Weight: 14.0 lb.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

Annovi Reverberi Pump Oil (16 oz)

SKU: AR64516

Annovi Reverberi AR64516 16 oz Crankcase Oil is formulated for AR and most other triplex pumps. Also used on AR Blue Clean Models: AR610, AR620, AR630 and AR767


Specifications:
• Special blend, 30W viscosity, non-detergent crank case lubricating oil
• Exceeds wear prevention requirements of all major hydraulic pump mfg's
• Contains anti-wear, rust inhibitor and deoxidizer additives
• Packaged in 16 oz bottles
NOT FOR USE IN CAT PUMPS or AXIAL PUMPS
• Weight: 1.0 Lbs.

Price: $5.30

3/8 FPT Quick Coupler Socket, Brass

SKU: QCS2FB

Brass Quick Connect Socket with Female 3/8" NPT


Features:
• Disconnects with a simple pull to retract socket sleeve
• Ball bearing snap connection
• Precision machined parts
• Click lock design


Specifications:
• Quick connect coupler / socket
• Material: Brass
• Inlet: 3/8" Female NPT
• Outlet: 3/8" Female quick connect
• 4,200 PSI working pressure


Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"

Price: $2.67

Garden Hose Inlet Connector 3/8 MPT

SKU: 300.119

3/8" Male Garden Hose Inlet Connector for Pressure Washer Pump


Specifications
• Material: Brass
• Inlet: 3/4" Female GH
• Outlet: 3/8" MPT

Price: $2.40

1/4" x 1-5/16" Straight Key, 1" Solid Shaft Engines

SKU: 8102.2801.00

1/4” Universal engine shaft key for 1"Solid Shaft Engines


Specifications:
• Works on most 1" solid shaft engines with a 1/4" keyway
• 1/4" W x 1-5/16" L
• Key may have to be cut to length

Price: $3.15
