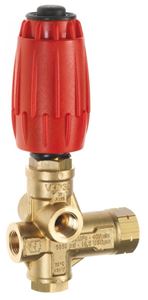

Newly introduced Mecline VHP39-EZ Unloader with EZ start replaces AL608EZ and AL609EZ unloaders.
Featuring: • Built-In easy start valve relieves back pressure during engine start up• Over sized handle – easier adjustment• Forged valve body – excellent strength• Two by-pass ports
Specifications:• Maximum Pressure: 5,650 PSI• Max. Volume: 10.5 GPM• Adjustable pressure• Built-In easy start valve• Brass valve body• Max. Fluid Temp.: 194° F.• Inlet Ports (1): 3/8" FNPT• Discharge Ports (1): 3/8” FNPT• Bypass Ports (2): 3/8” FNPT• Replaces AL608EZ and AL609EZ• Weight: 2.05 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Accutek® S1003-CB Steel Female Hex Coupling 3/8 Female Pipe x 1/4 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.11 lbs
Accutek® S1003-DC Steel Female Hex Coupling 1/2 Female Pipe x 3/8 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.25 lbs
