Specifications:
• Works on most 3/4" horizontal & 7/8" vertical engines with solid shafts and a 3/16" keyway
• 3/16" W x 1-1/2" L
• Key may have to be cut to length

Specifications:
• Special blend, non-detergent crank case lubricating oil
• Exceeds wear prevention requirements of all major hydraulic pump mfg's
• Contains anti-wear, rust inhibitor and deoxidizer additives
• Packaged in 4.5 oz bottles
• Weight: 0.30 Lbs

This Annovi Reverberi / AR North America RMW2.2G24-EZ, RMW22G24-EZ aluminum vertical plunger pump will pump up to 2.2 GPM at 2,400 PSI. It spins at 3400 RPM in a direct drive system coupled with a gasoline engine. The matching flange provides convenient connection to most 7/8” shaft 4 - 7 HP engines. The hollow shafted pump includes a built-in pressure control valve, and chemical injection system. Comes with Thermal Relief Valve and Easy Start Valve (EZ).

Features:
• 3-Piston alternating volumetric pumps for use on cleaning units

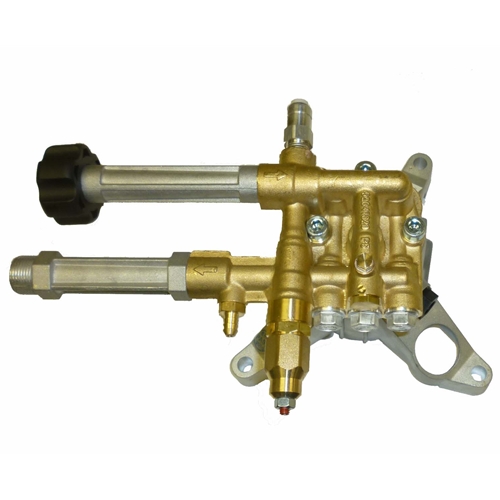

• Check the HOLE in the ARM location relative to the inlet/outlet Port (2nd Picture)

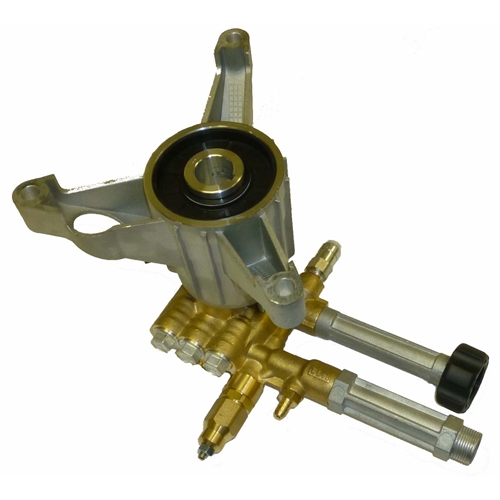

• This pump is Front Mounted (3rd picture)
• Pump body in die-cast aluminum alloy
• Pistons driven by swash plate mechanism
• Two bearing systems, to support the pump shaft and pistons
• Pistons in hardened and tempered steel
• Pump head in aluminum
• Double gasket sealing system
• Intake valves fitted above the pistons for greater efficiency
• Integral regulating valve
• Integral detergent suction system

Specifications:
• Max. Volume: 2.2 GPM
• Max. Discharge Pressure: 2,400 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 7/8” Hollow
• Maximum Horsepower Requirements (Industrial): 4.8 GHP
• Maximum Horsepower Requirements (Standard): 5.9 GHP
• Inlet Port: 3/4" GHA (garden hose)
• Outlet Port: 22mm-14 (Twist Connect)
• Weight: 7.3 lb.
