Picture of Suttner ST-49.3 Mini Rotating Sewer Nozzle 1/8", # 5.0, 2 Side 2 Back 7,300 PSI

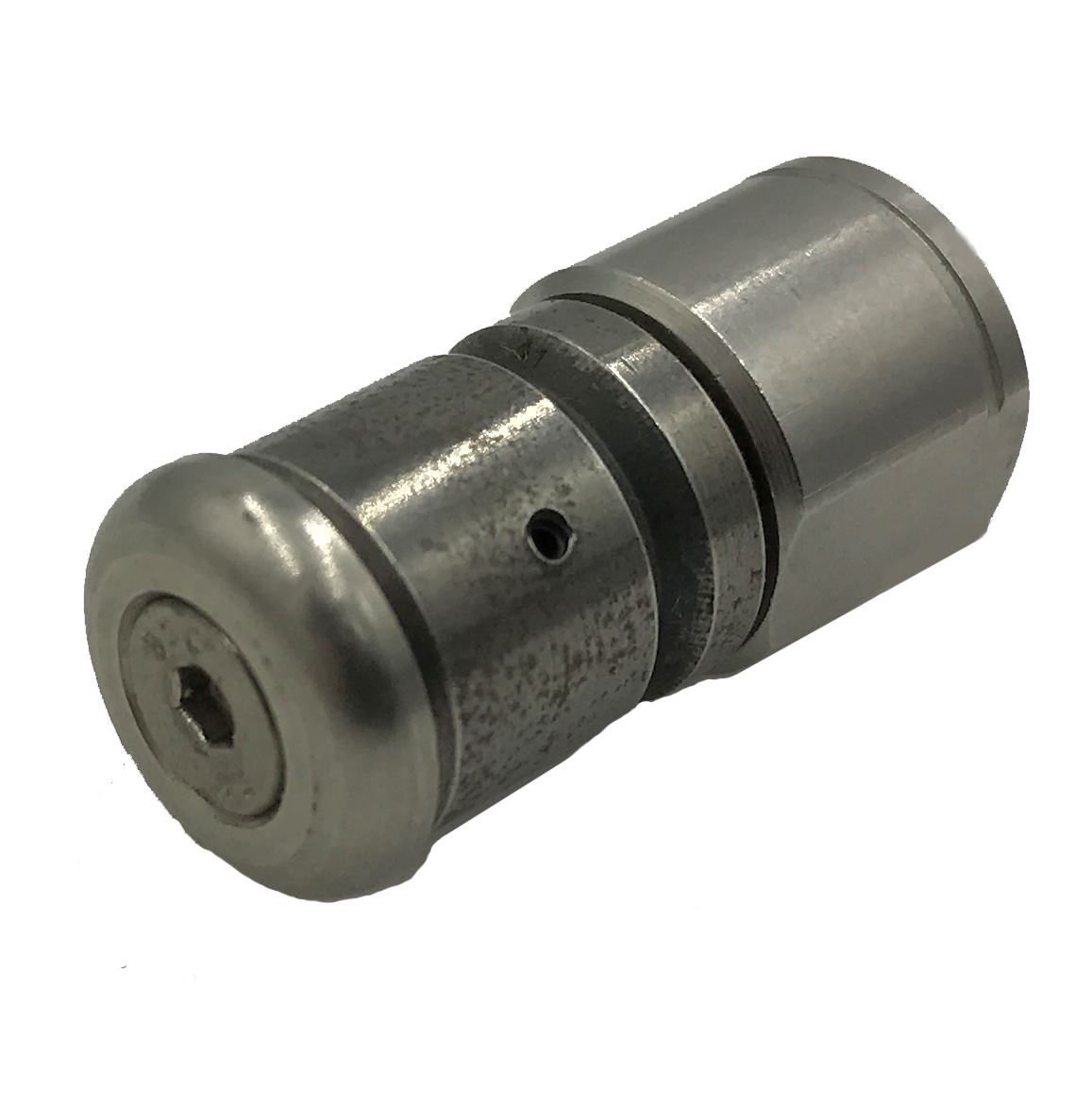

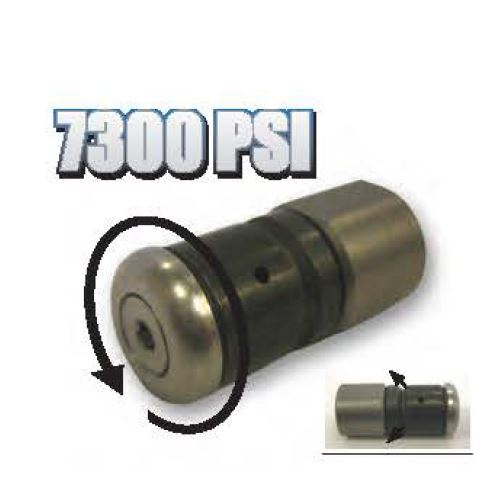

Suttner ST-49.3 Mini Rotating Sewer Nozzle 1/8", # 5.0, 2 Side 2 Back 7,300 PSI

SKU: 200049950

Brand: Suttner America

$40.19

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


1/8” Suttner ST-49.3 Mini Stainless Steel Rotating Sewer Jetter Nozzle, # 5.0. Limited (or reduced) spinning speed for higher cleaning performance. Two radial jets hit the pipe wall directly with great impact, resulting in excellent cleaning capacity. Two strategically placed retracting jets provide cleaning energy as well as the thrust in one function, resulting in a low water consumption, while maximizing cleaning and flushing away the loosened residues. Housing and Rotor are hardened stainless steel parts with grinded contact surfaces for extended lifetime


Features
• High Quality, German engineered components
• 2 Rotating radial jets (90°) to the pipe wall for best cleaning results
• 2 Rotating rear jets (45°) for forward thrust and flushing away of the waste material
• Physically small for cornering ability
• Rated at 7300 PSI and 248° F


Specifications
• Inlet: 1/8” Female
• Nozzle Size: # 5.0
• 2 Side ports, 2 Backward, 0 Forward
• Material: Stainless steel
• Maximum Pressure: 7,300 PSI
• Max. Fluid Temperature: 248º F
• Outside Diameter (O.D.): 0.47”
• Length: 1.0”
• Weight: .05 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of 1/8" x 50' Sewer Jetter Hose 4,800 PSI Black

1/8" x 50' Sewer Jetter Hose 4,800 PSI Black

SKU: 686200007

Propulse Jetter Clean 1/8” X 50’ Lateral Line and Drain Cleaner Sewer Hose. Ideal for consumer and commercial sewer jetters with operating pressures of 4,800 PSI or less. Jetter Clean hoses offer optimum flexibility and lightweight construction.


ProPulse, a Schieffer Company, backed by more than 90 years of innovation


MADE IN USA
Every foot of Propulse Jetter Clean is manufactured at our ISO9001:2008 certified factory in the USA using 100% domestically sourced materials


Features:
• Suitable for consumer and commercial applications
• Reinforcement: One layer of polyester braid
• Cover: Thermoplastic smooth finish with printed lay line
• Burst (Minimum): 2.5:1 working pressure
• Easily slides into sewer lines and pipes
• Glossy black abrasion resistant cover

Specifications:
• Inner Diameter: 1/8” ID
• Length: 50’
• Working (Maximum) Pressure: 4,800 PSI
• Burst (Minimum): 12,000 PSI
• Optimal Recommended Flow Rate: Up to 1.5 GPM
• Max. Fluid Temperature: 160º F.
• Inlet: 1/8” MPT with 1/4” MPT Bushing (Solid)
• Outlet: 1/8” MPT (Solid)
• Weight 1.5 lbs

  Price: $40.28
Picture of ARGUS 1/4" Female Poppet Screw Coupling x 1/4" MNPT 10,000 PSI ISO 14540

ARGUS 1/4" Female Poppet Screw Coupling x 1/4" MNPT 10,000 PSI ISO 14540

SKU: QXF-0404-MNPT


Kuriyama Alfagomma® Argus QX 1/4" Female Screw Coupling x 1/4" MNPT 10,000 PSI ISO 14540. Thanks to the exclusive ALFAGOMMA TOP COAT – Galvanic Coating – proprietary technology, the complete range of ARGUS Quick release couplings can boast an extraordinary wear and corrosion resistance, so as to guarantee a longer lifespan to your system


Features:
• ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines
• Their robust construction and tested components make them ideally suited for high and intermittent pressure loads
• During the coupling action, valves that release and/or block the flow are automatically activated
• The QX quick release coupling, formed by coupling plug and coupling socket, is coupled by a screwing action with the hand nut of the plug component


Specifications:
• Product Type: Female Coupler with Male Thread
• Dash: 04
• Inside Diameter: 1/4”
• Working Pressure: 10,150 PSI
• Burst Pressure: 40,650 PSI
• Norm: ISO 14540
• Thread: NPTF
• Temperature: -22º F - 257º F
• End Type: Female
• Second End Type: 1/4-18 MNPT
• Weight: 0.30 lb

  Price: $23.12
Picture of GP 15º x #2.0 M-Style Spray Nozzle 1/4" NPT-M

GP 15º x #2.0 M-Style Spray Nozzle 1/4" NPT-M

SKU: 915020M


General Pump 15° x #2.0 M-Style Spray Nozzle 1/4” NPT-M


Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability


Specifications
• Tip Angle: 15°
• Nozzle Size: 2.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $3.18
Picture of GP 65º x #1.3 M-Style Spray Nozzle 1/4" NPT-M (Water Broom)

GP 65º x #1.3 M-Style Spray Nozzle 1/4" NPT-M (Water Broom)

SKU: 965013M


General Pump 65° x #1.3 M-Style Spray Nozzle 1/4” NPT-M. Replacement Nozzles for BE & General Pump Water Brooms and Under Carriage Cleaners


Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability


Specifications
• Tip Angle: 65°
• Nozzle Size: 1.3
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• BE part # 85.265.013
• Weight: 0.05 oz


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $3.18
