1/8” Suttner ST-49.3 Mini Stainless Steel Rotating Sewer Jetter Nozzle, # 7.0. Limited (or reduced) spinning speed for higher cleaning performance. Two radial jets hit the pipe wall directly with great impact, resulting in excellent cleaning capacity. Two strategically placed retracting jets provide cleaning energy as well as the thrust in one function, resulting in a low water consumption, while maximizing cleaning and flushing away the loosened residues. Housing and Rotor are hardened stainless steel parts with grinded contact surfaces for extended lifetime

Features
• High Quality, German engineered components
• 2 Rotating radial jets (90°) to the pipe wall for best cleaning results
• 2 Rotating rear jets (45°) for forward thrust and flushing away of the waste material
• Physically small for cornering ability
• Rated at 7300 PSI and 248° F

Specifications
• Inlet: 1/8” Female
• Nozzle Size: # 7.0
• 2 Side ports, 2 Backward, 0 Forward
• Material: Stainless steel
• Maximum Pressure: 7,300 PSI
• Max. Fluid Temperature: 248º F
• Outside Diameter (O.D.): 0.47”
• Length: 1.0”
• Weight: .05 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

1/4” Suttner ST-49 Stainless Steel Rotating Sewer Jetter Nozzle, # 9.0. Does not have a forward spraying orifice, but has 2 orifices angled to the side and 3 orifices angled backwards and to the side. Rotating duct style has 90° side ports that are ideal for cleaning industrial sized air conditioning and heating ducts

Features
• High Quality, German engineered components
• 2 Side ports, 0 Forward, 3 Backward
• Corrosion resistant stainless steel and brass construction

Specifications
• Inlet: 1/4” Female
• Nozzle Size: # 9.0
• Material: Stainless steel & brass
• Maximum Pressure: 4,000 PSI
• Outside Diameter (O.D.): .745”
• Weight: .08 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

3/8” Suttner ST-49 Stainless Steel Rotating Sewer Jetter Nozzle, # 10.0. With centric front jet and 3 orifices angled backwards and to the side. Slides easily into drain pipes and sewer lines. Front jet for penetrating of clogged pipes and frozen pipelines and rear jets for flushing debris or clearing sides of pipes while attached to sewer hose

Features
• High Quality, German engineered components
• 1 Centric front jet breaks up clogs & debris
• 3 Backward ports drive the nozzle forward and flush debris
• Rotating style adds extra agitation and surface cleaning
• Corrosion resistant stainless steel and brass construction

Specifications
• Inlet: 3/8” Female
• Nozzle Size: # 10.0
• Material: Stainless steel & brass
• Maximum Pressure: 4,000 PSI
• Outside Diameter (O.D.): .94”
• Weight: .15 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Sewer Jetter /Cleaner Kit – Heavy-Duty Foot Valve, Hose Reel, 3/8” X 200' Hose and Nozzles. Will attach to any pressure washer with a 3/8 QC socket or plug outlet from pressure washer

Features
• This is a complete package; take a look at all the things included...
• The sewer kit clears blockages without the need for chemicals.
• The hose is designed to have a small outside diameter that allows the hose and nozzle to fit through sewer lines and pipes.
• Sewer hose is lighter, more flexible and has an outer cover which allows it to slide thru pipes more easily
• This kit works best on 4" to 8" Pipes.

Specifications
• 200’ of 3/8” ProPulse Sewer hose
• General Pump D30006 hose reel (3/8” x 200’ capacity ) with GP 3/8 QC inlet
• General Pump 210375 hose reel cart

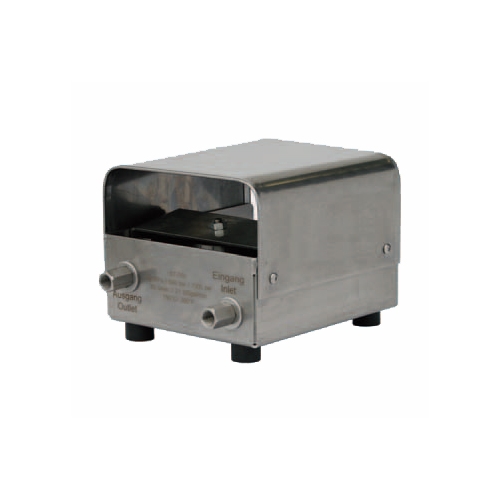

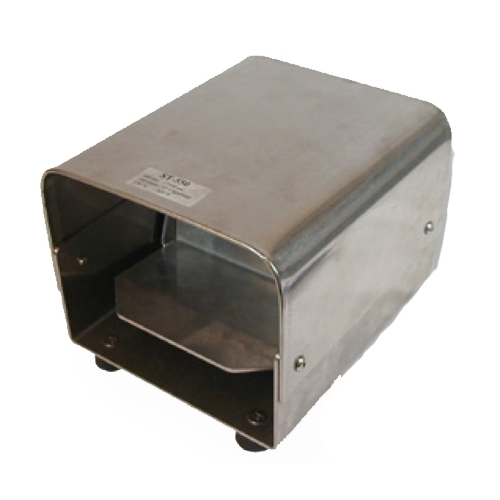

• 5,000 PSI Heavy-Duty Suttner Foot valve with 3/8 GP quick connects
• 6’ Jumper hose with GP 3/8 QC’s (foot valve to reel)
• Suttner 3/8” #4.0 Laser sewer nozzle
• Suttner 3/8” #4.5 Rotating sewer nozzle
• 3/8” F x 1/4” M Steel adapter (foot valve)
• Max. Pressure: 4,000 PSI
• Weight: 87.0 lb
