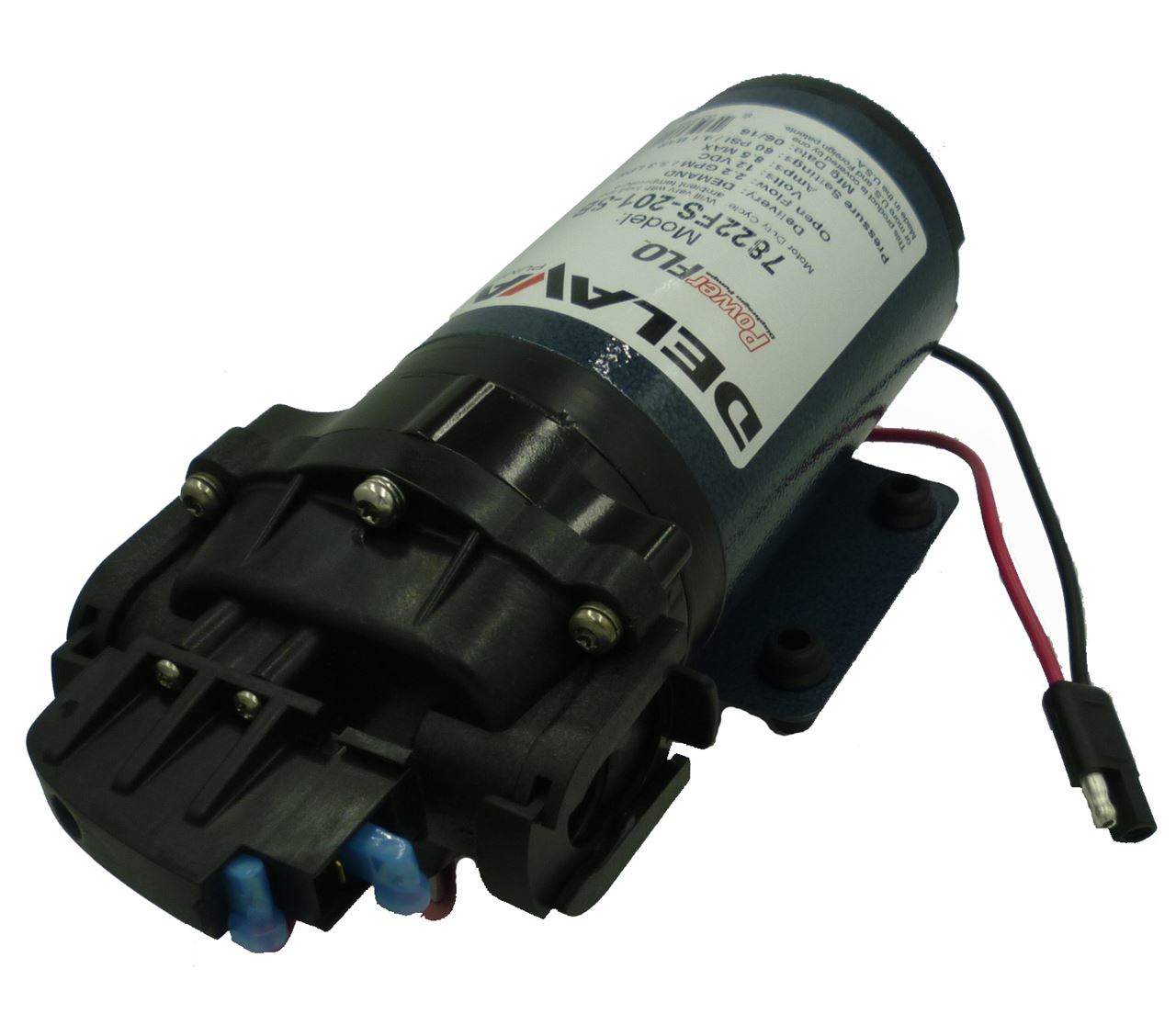

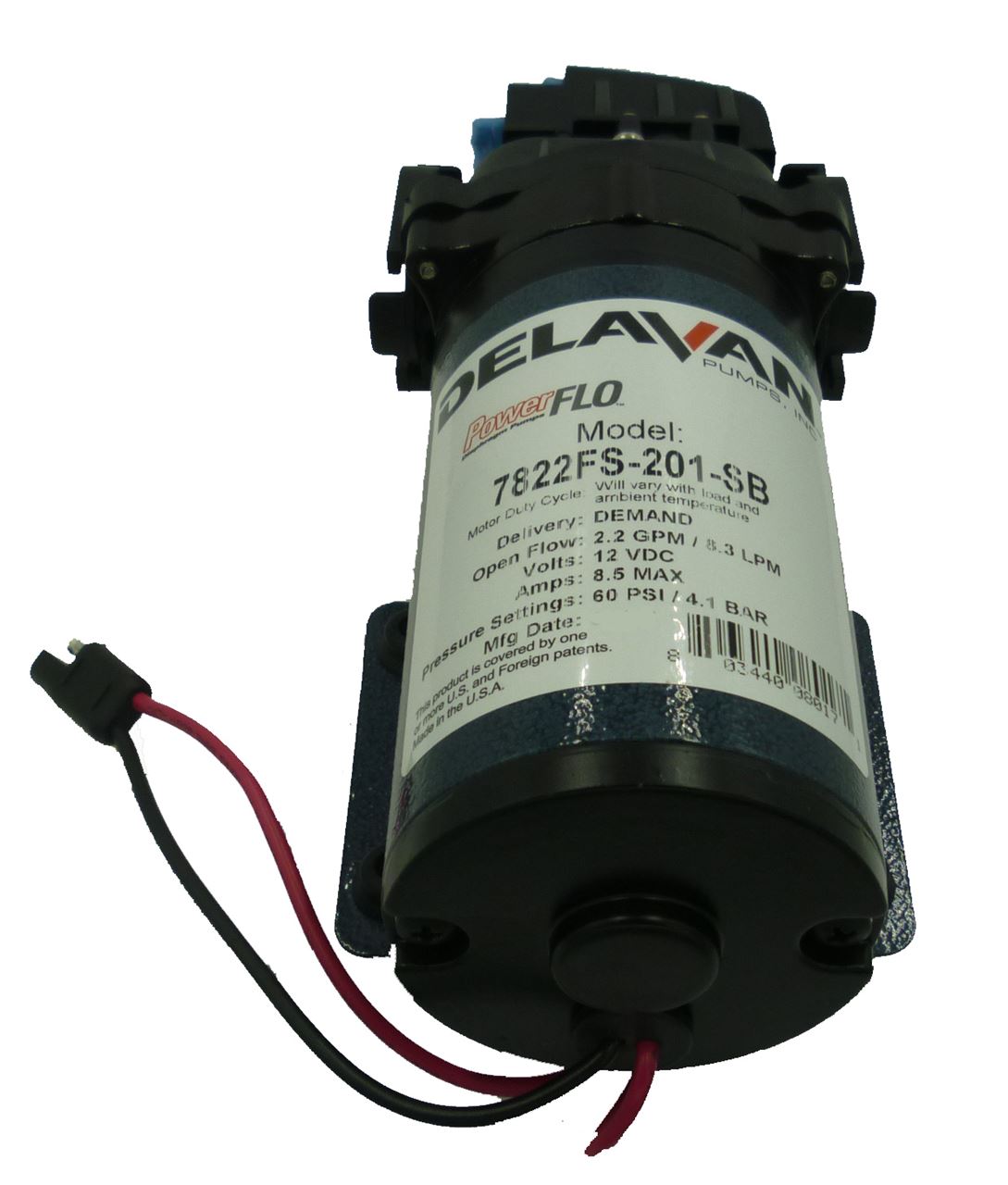

Picture of Delavan Diaphragm Flex Pump 12 V, 60 PSI, 2.2 GPM, 3/4" QA Ports

Delavan Diaphragm Flex Pump 12 V, 60 PSI, 2.2 GPM, 3/4" QA Ports

SKU: 7822FS-201-SB

Brand: Delavan Ag Pumps, Inc.

$69.93

QTY:
ADD TO CART
ADD TO WISHLIST
Customer Product Rating
Product Description


Delavan PowerFLO™ 7822FS Flex Series 2.2 GPM 60 PSI Diaphragm Pump with 3/4” Quick Attach Ports. Thanks to the new 3/4” Quick Attach adapter system and bolt pattern, the Flex Pump can fit into most competitor spray systems that use 3/4” quick attach with ease. The new Flex Pump will be able to replace your old pump and provide a new level of performance and life. You can figuratively speaking “feel the difference in weight and productivity” between the two pumps. The new Delavan 12 Volt Flex Pumps represent years of testing and improvements, with state of the art components like improved pressure switches, efficient valve design and a new mounting and attachment system. These features create the best value in 12 Volt diaphragm pumps for your sprayer.


Features:
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase
• This demand pump will turn off when the spray gun or boom is turned off, saving energy and increasing the life of the pump


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 6” long with 2-pin connector
• Max Amps: 8.5
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel


NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act


Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 3-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140°F Max.
• Priming Capabilities: 14’
• Max. Flow: 2.2 GPM
• Pressure Shut-Off: 60 PSI
• Inlet/Outlet Ports: 3/4 Quick Attach
• Packaging: Small box
• Weight: 6.0 lbs



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
