www.PWMall.com. PWMall-200049400-Suttner Single Turbo Nozzle Driver 1/4"F x 1/4"M 5,800 PSI

See All 3 items

Suttner Single Turbo Nozzle Driver 1/4"F x 1/4"M 5,800 PSI

SKU: 200049400

Brand: Suttner America

Price: $101.81

QTY:

ADD TO CART

ADD TO WISHLIST

Product Description

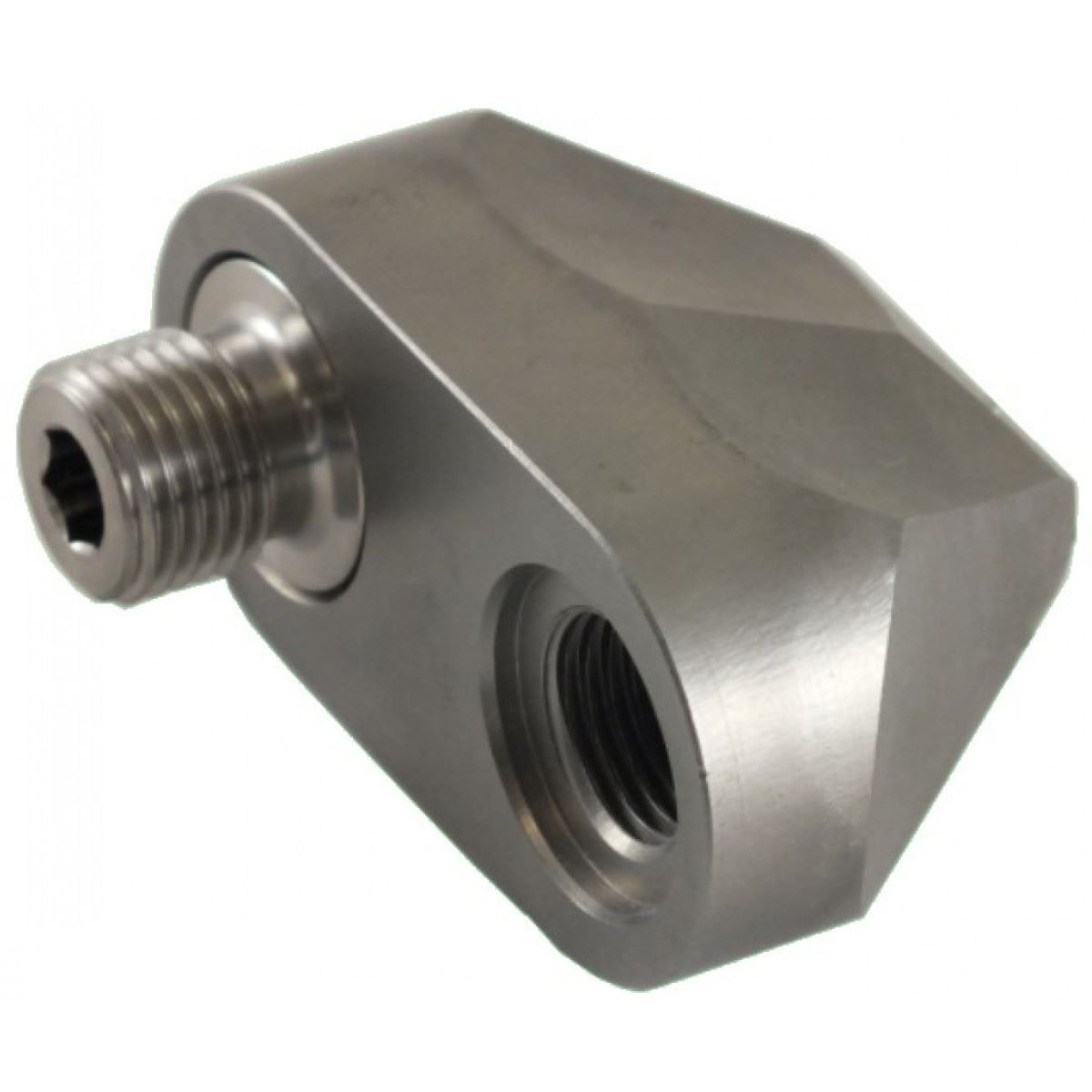

Suttner Single Turbo Nozzle Driver. With 1/4"F Inlet & 1/4"M Outlet and rated to 5,800 PSI

Features:
• High Quality, German engineered components
• Designed for connecting the ST-357 rotating nozzle to a sewer cleaning hose
• Hardened stainless steel body with extra sharp edges

Specifications:
• Material: Hardened stainless steel
• Maximum Pressure: 5,800 PSI
• Inlet: 1/4” Female
• Outlet: 1/4” Male
• Max Flow: 16.0 GPM
• Outside Diameter (O.D.): 2.063”
• Note: Requires ST-357 1/4” turbo nozzle (Not Included)
• Weight: 0.45 lbs

Nominal Thread Size (NPT)	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Actual I.D. Measurement	3/8"	1/2"	5/8"	3/4"	1"	1-3/8"

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

5,000 PSI 2.5" Pressure Gauge Test Set with QC's

SKU: PK-QCG-5000

Valley 5,000 PSI Quick Connect 2.5" Pressure Gauge Set. It can be easily put in line with the quick connect ends and used to monitor/set/test your pressure washer

Specifications:
• Accurately view pressure for all units up to 5,000 PSI
• Casing: 2 1/2" Diameter
• Pointer: Black aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: 304 Stainless steel
• Fill Material: Glycerin (liquid)
• 3/8 Brass quick connects for easy mounting
• Max. Pressure: 5,000 PSI
• Weight: 0.80 lbs

Price: $19.76

1/4" Suttner #4.0 ST-49 Milling Sewer Nozzle 3 Front 4 Rear 5,076 PSI

SKU: 649010234040

1/4” Suttner #4.0 ST-49 Milling Sewer Cleaning Nozzle. With 3 Front and 4 Rear jets and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• With its 3 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• Centric jet is plugged
• 3 Lateral front jets 0.5 mm drilled
• 4 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel rear and centric front jets
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations

Specifications:
• Nozzle Size: # 4.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .95”
• Weight: 2.8 oz

Nominal Thread Size (NPT)	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Actual I.D. Measurement	3/8"	1/2"	5/8"	3/4"	1"	1-3/8"

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Price: $136.76

Suttner ST-357 #4.0 Turbo Nozzle 3,625 PSI

SKU: 200357540

Suttner ST-357 Turbo / Rotating #4.0 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment

Features
• Increases cleaning efficiency as much as 200%
• The 0° rotation creates a cleaning and tearing action
• Ideal for hard surfaces
• Improved materials for longer life

Specifications
• Nozzle Size # 4.0
• Max PSI: 3,625
• Max Temp.: 190° F
• Inlet: 1/4" Female NPT
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 0.68 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Price: $62.08

MTM Brass Nozzle Orifice Cleaner / Unclogger Tool

SKU: 17.0703

MTM Hydro's Brass Nozzle Cleaner feature a 1/4" QC plug for easy storage and a 0.8mm diameter cleaning pin for even the smallest nozzles. Keep your nozzles in top condition by regularly cleaning them to ensure optimum pressure and GPM

Specifications:
• Body & Cap Material: Brass
• Pin Size: 0.8MM (3.0 Nozzle size or greater)
• QC Plug: 1/4”
• Weight: 0.10 lbs

Price: $6.65
