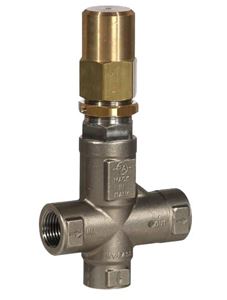

PA VS 500 Safety & Pressure Regulating Valve 8,100 PSI. With rated pressures up to 7,250 PSI and flows up to 21.0 GPM

Features:
• Compensated pressure regulating valve
• Regulates the bypass of the fluid with a minimum variation of the pressure
• Suitable to be utilized as a safety valve
• Central body and fittings in brass
• Internal components in Sst
• Moving parts totally protected

AS SAFETY VALVE ONLY FOR PRESSURE WASHERS:
• Secure intervention discharging all the flow
• Prompt and effective damping action against pressure spikes

AS A PRESSURE REGULATING VALVE:
• High balancing to guarantee slight variations of the rated pressure when the flow varies in bypass

Specifications:
• Rated Pressure: 7,250 PSI
• Permissible Pressure: 8,100 PSI
• Rated Temperature: 195° F
• Rated Flow Rate: 21.0 GPM
• Material: Brass and Sst
• Inlet Port: 1/2" F
• Bypass Port: 3/8" F
• AR40399
• Weight: 51.53 Oz

Mecline Shoulder Support for ML 210, ML 510, ML 710 ML210, ML510 & ML710 Trigger Guns

Specifications
• Inlet: 1/4" Male
• Size: 13" L x 5.5” W
• Weight: 9.0 oz

Mecline ML 710 High Pressure Trigger Gun. This 9,280 PSI rated trigger gun comes with 3/8 F inlet x 3/8 F outlet

Specifications
• Permissible Pressure: 10,150 PSI
• Rated Pressure: 9,280 PSI
• Rated Flow Rate: 16.0 GPM
• Rated Temperature: 250° F
• Inlet: 3/8" Female
• Outlet: 3/8" Female
• Weight: 30.0 oz

Mecline VHP51 Unloader Valve 8,000 PSI. With working pressures up to 7,250 PSI and flows up to 26.4 GPM, the VHP51 can continuously handle water up to 160° F (up to 194° F for short periods)

Featuring:
• Positioning of all o-rings before the threads, giving greater mechanical strength
• Ease of maintenance: the whole regulating unit can be totally removed from on top
• The locking ring nut has a set screw for a safer pressure setting
• A nickel-plated brass body, granting greater resistance to corrosion and overall wear
• All internal parts in stainless steel, including the outlet fitting and piston cylinder
• Internal safety lock to avoid overpressure
• Suitable for wall mount

Specifications:
• Rated Pressure: 7,250 PSI
• Permissible Pressure: 8,000 PSI
• Rated Temperature: 194° F
• Rated Flow Rate: 26.4 GPM
• Material: Chemically nickel-plated brass body. Internal parts in Stainless steel including fittings
• Inlet Port: 1/2" F
• Outlet Port: 1/2” F
• Bypass Port: 1/2”
• Replaces VHP50-500
• Weight: 40.57 Oz
