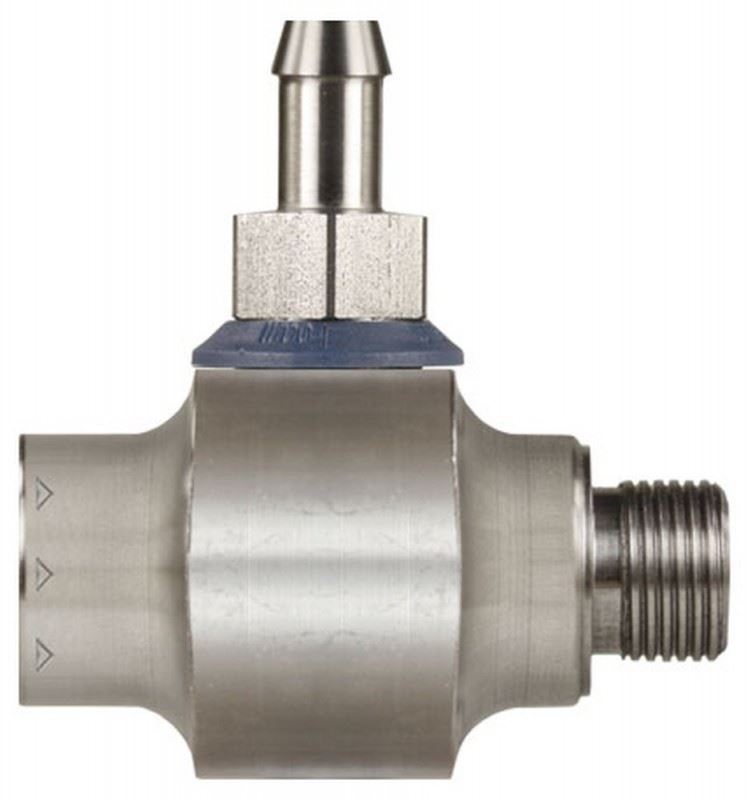

Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, #8.5, 5000 PSI, 3/8" F x 3/8” M

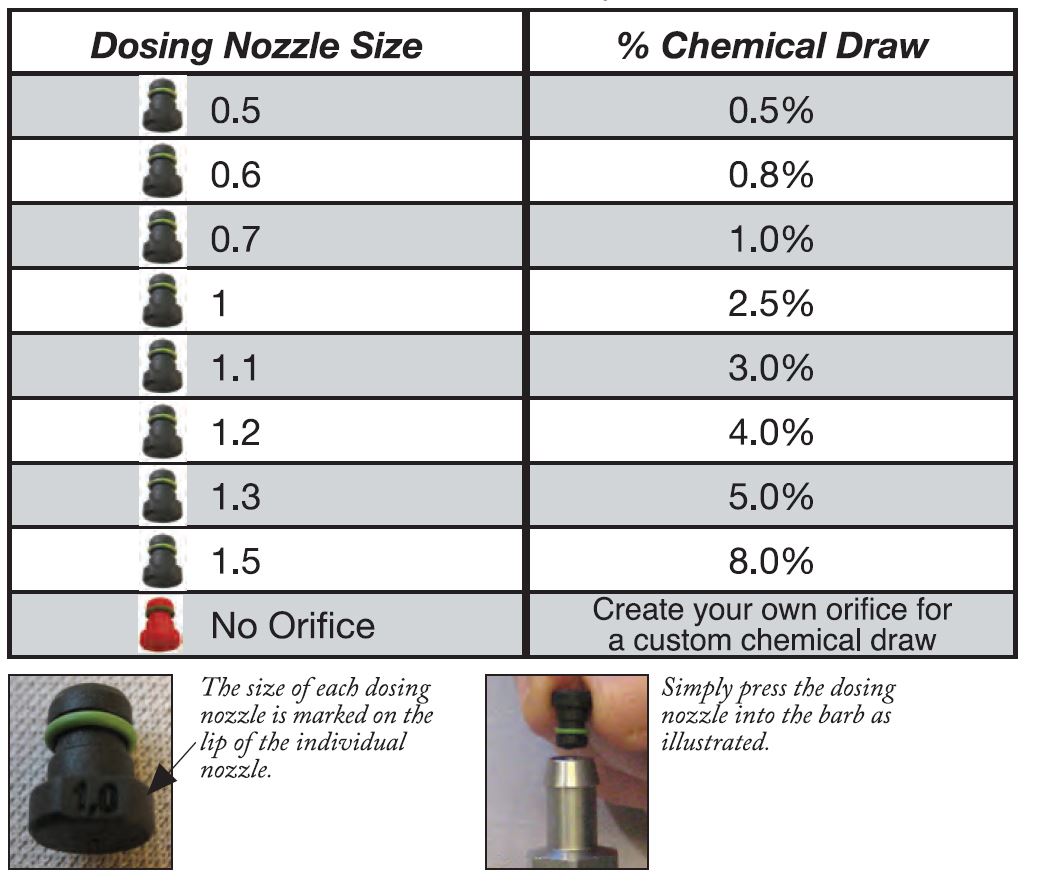

Features• Food grade quality and specifications• Durable Stainless Steel housing• 9 Metering / dosing nozzles included (See 2nd picture)• Uses .35" I.D. Hose
Specifications • Nozzle/Orifice Size: 8.5• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 0.71 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size
Nozzle Chart
See the ST-160 System Diagram below to determine the foam components needed
ST-160 System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Features:• Suitable for cold and hot water commercial pressure cleaning applications• Reinforcement: Two layers of high tensile braided steel – R2 Rating• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 10’• Working (Maximum): Up to 6,000 PSI• Burst (Minimum): 18,000 PSI• Color: Grey, “mark-less”• Maximum Temperature: 212° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Weight 3.30 lbs
Suttner ST-76 Foam Blaster Head 3,625 PSI with #5.0 x 3 Air Injector Nozzles and 1/2" F Inlet. The foamblaster ST-76 is designed for applications in agriculture, industry, municipal cleaning and fire fighting technology. Designed for high volume applications
Features• The foam blaster ST-76 is made out of a premium combination of stainless steel and plastic• Starting with an inlet pressure of only 435 PSI the foam blaster ST-76 is able to foam mixtures of water and foam agents with a flow of 5.3 - 15.8 GPM and without the addition of compressed air • By means of exchangeable air injector nozzles it is possible to adapt the foam blaster ST-76 to the requirements such as water quantity and inlet pressure in an optimal way• Stainless steel injector nozzle• Wider spray angle• For applications 6 GPM or higher • Throws foam 40 feet• Cover large areas
ST-76 with ST-160 Chemical Injector on YouTube
Specifications • Air Injector Nozzles (3) Size: 5.0• Max Pressure: 3,625 PSI• Flow Rate: 5.3 – 15.8 GPM• Max Temp: 212° F.• Inlet: 1/2" Female• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included• Weight: 1.15 lb
Please use Nozzle Chart to determine proper Spray Nozzle Size
Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use
Foam Nozzle Chart
Suttner ST-32 Stainless Steel Chemical Strainer with 5/16" or 3/8" Hose Barb. Soap enters through strainer preventing debris from entering the pump
Specifications:• Chemical resistant plastic screen out performs stainless steel screens• A durable alternative to lightweight strainers• Straight through design• Material: Stainless steel• Hose Barb: 5/16” or 3/8”• Weight: 0.06 lbs
Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, #9.0, 5000 PSI, 3/8" F x 3/8” M
Specifications • Nozzle/Orifice Size: 9.0• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 0.71 lb
