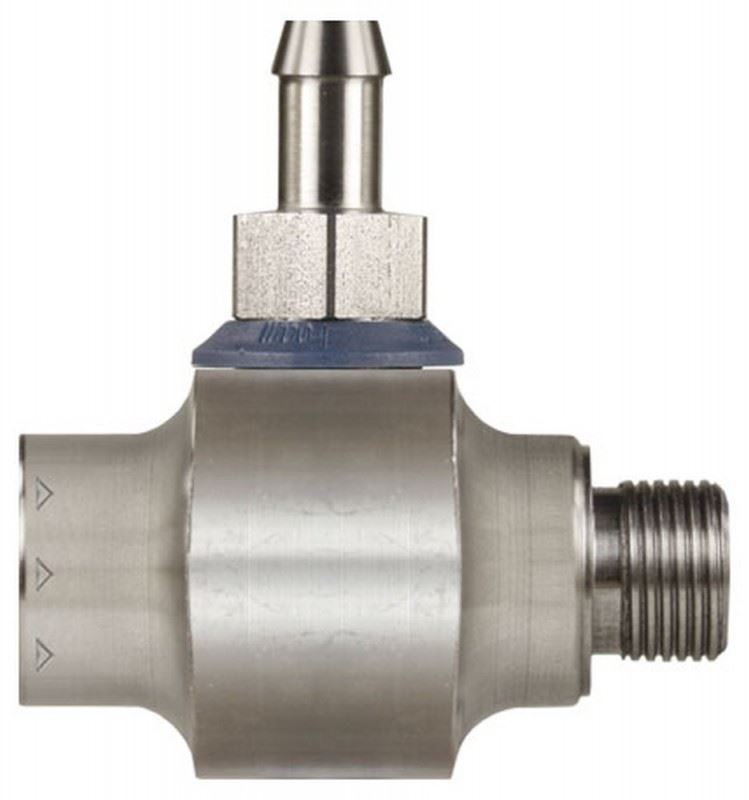

Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, #12.0, 5000 PSI, 3/8" F x 3/8” M
Features• Food grade quality and specifications• Durable Stainless Steel housing• 9 Metering / dosing nozzles included (See 2nd picture)• Uses .35" I.D. Hose
Specifications • Nozzle/Orifice Size: 12.0• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 0.71 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size

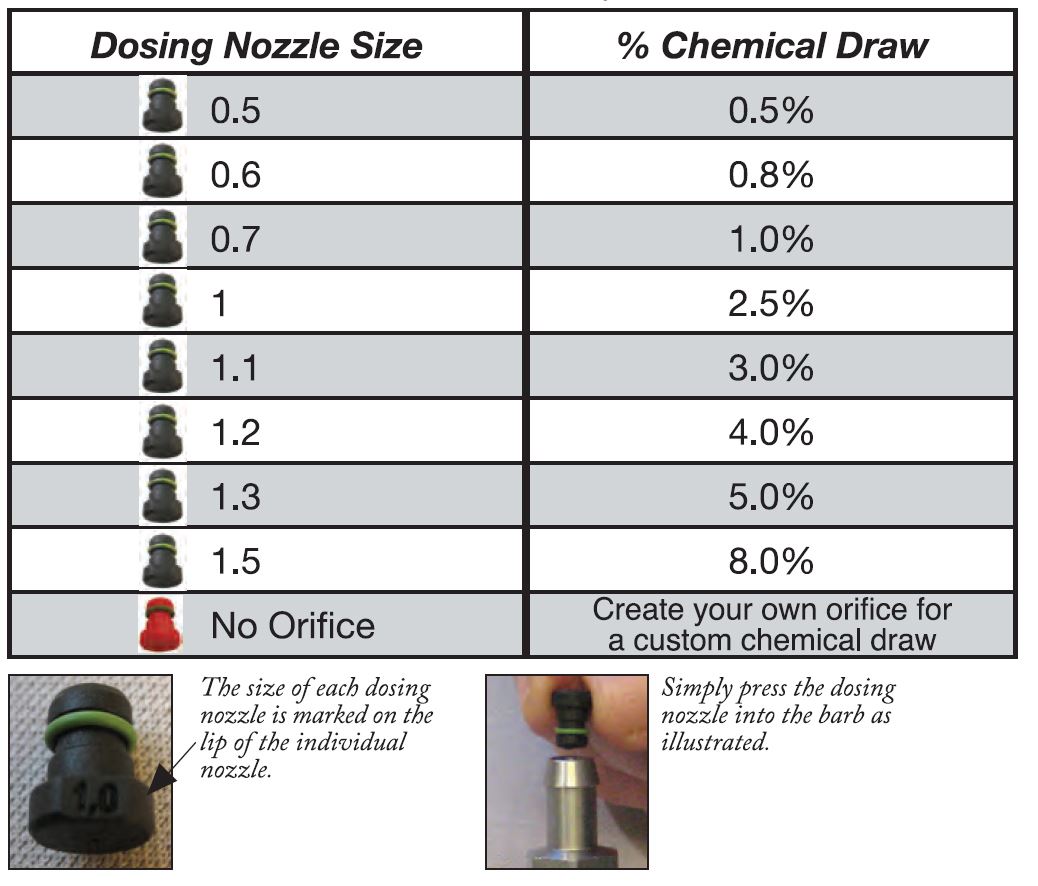

Nozzle Chart
See the ST-160 System Diagram below to determine the foam components needed
ST-160 System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Features• High Quality, German engineered components• Nickel plated, stainless steel internal• Double PTFE slide rings for easy movement• Bearing material: PTFE/Bronze• High performance plastic axial and radial slide bearing
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12 GPM• Max Temp: 300° F.• Inlet: 3/8" Male NPT• Outlet: 3/8" Female NPT• RPM: 30• Weight: 0.29 lb
Features• High Quality, German engineered components• The Relax-Action™, German Engineered Technology reduces trigger pulling force by 40% and holding force up to 90% compared to usual competitors spray gun• Relax-Action™ is designed for operators and applications with longer periods of cleaning time• Stainless Steel Housing• Ceramic ball together with a seal kit made out of stainless steel• Food Grade
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12.0 GPM• Max Temp: 300° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT• Weight: 1.25 lb
Mecline 40° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT
Features• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts• Ceramic insert is resistant to wear• The ceramic insert guarantees a more precise and stronger stream• Stainless Steel AISI303 body
Specifications• Flat fan jet angle: 40°• Nozzle Size: 12.0• Rated Pressure: 4,500 PSI• Permissible Pressure: 5,075 PSI • Rated Temperature: 300° F• Inlet: 1/4” Male NPT• Weight: 0.63 oz
Mecline 25° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT
Specifications• Flat fan jet angle: 25°• Nozzle Size: 12.0• Rated Pressure: 4,500 PSI• Permissible Pressure: 5,075 PSI • Rated Temperature: 300° F• Inlet: 1/4” Male NPT• Weight: 0.63 oz
