Picture of 1/2" F Suttner # 12.0 ST-49 Turbo Driver 6 Rear 7,252 PSI

1/2" F Suttner # 12.0 ST-49 Turbo Driver 6 Rear 7,252 PSI

SKU: 649082406120

Brand: Suttner America

$75.96

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


1/2” F Suttner #12.0 ST-49 Turbo Nozzle Driver With 6 Rear jet inserts and rated to 7,252 PSI


Features:
• High Quality, German engineered components

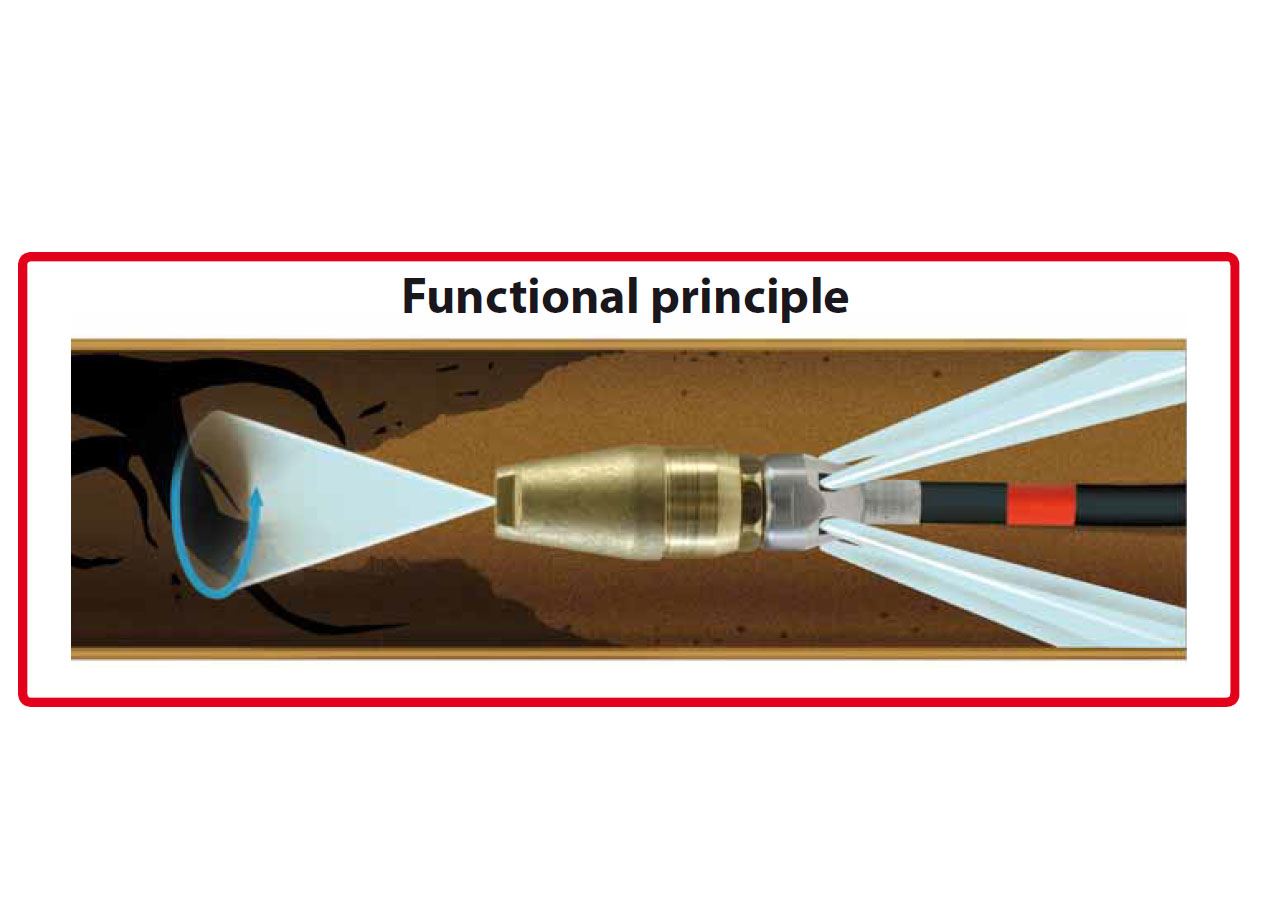

• Turbo nozzle driver and ST-457 or ST-559 turbo nozzle are the perfect combination for drilling through blockages with its rotary forward facing jet
• Driven up to the blockage by 6 powerful rear facing hardened stainless steel nozzles the high speed forward facing spinning jet creates a cone shape that has enough cutting force to blast through roots and scale
• It is also ideal for cutting up and shredding tissue and fat deposits


Note:

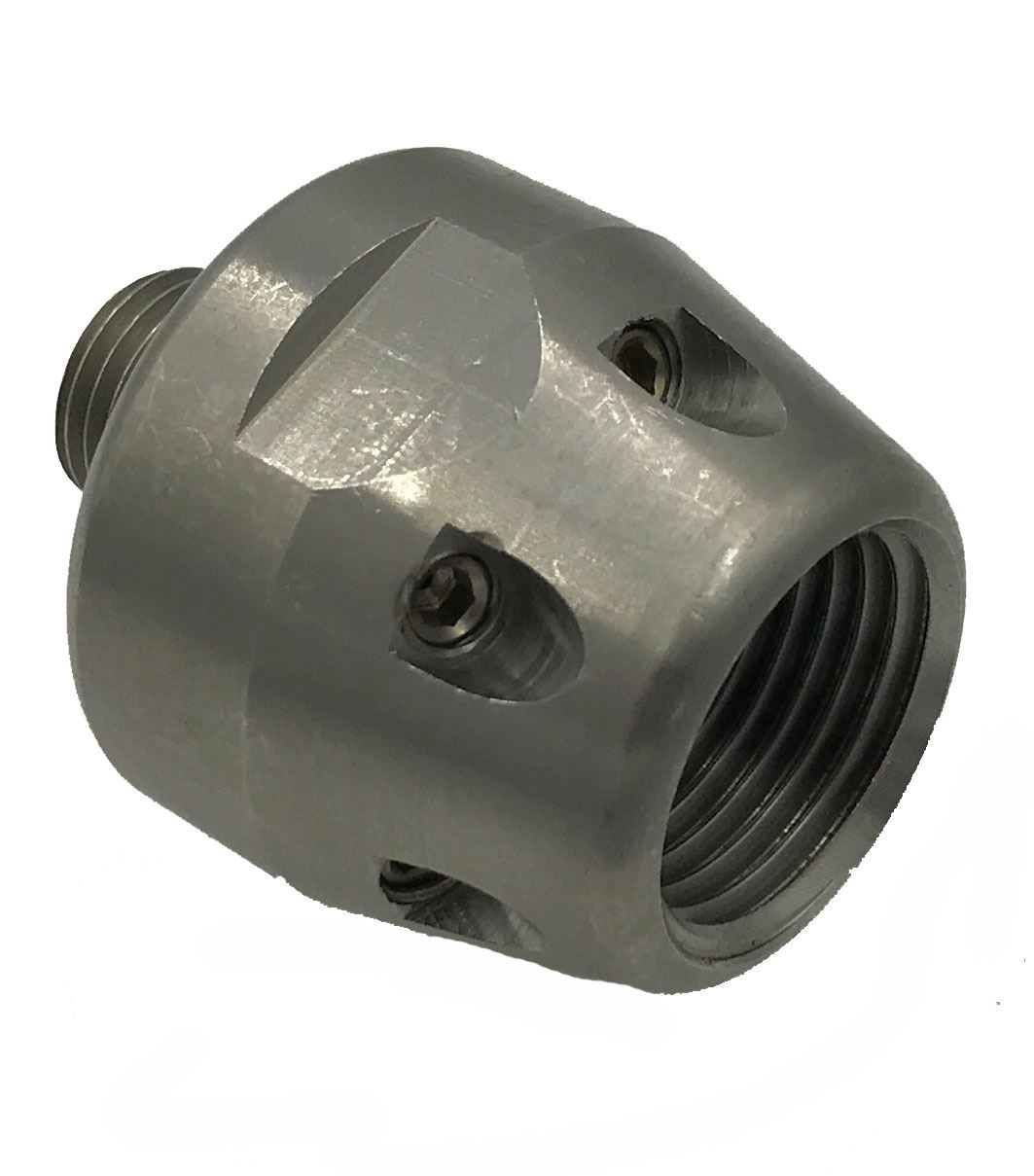

• Above shown item (1st Picture) is for the driver portion only

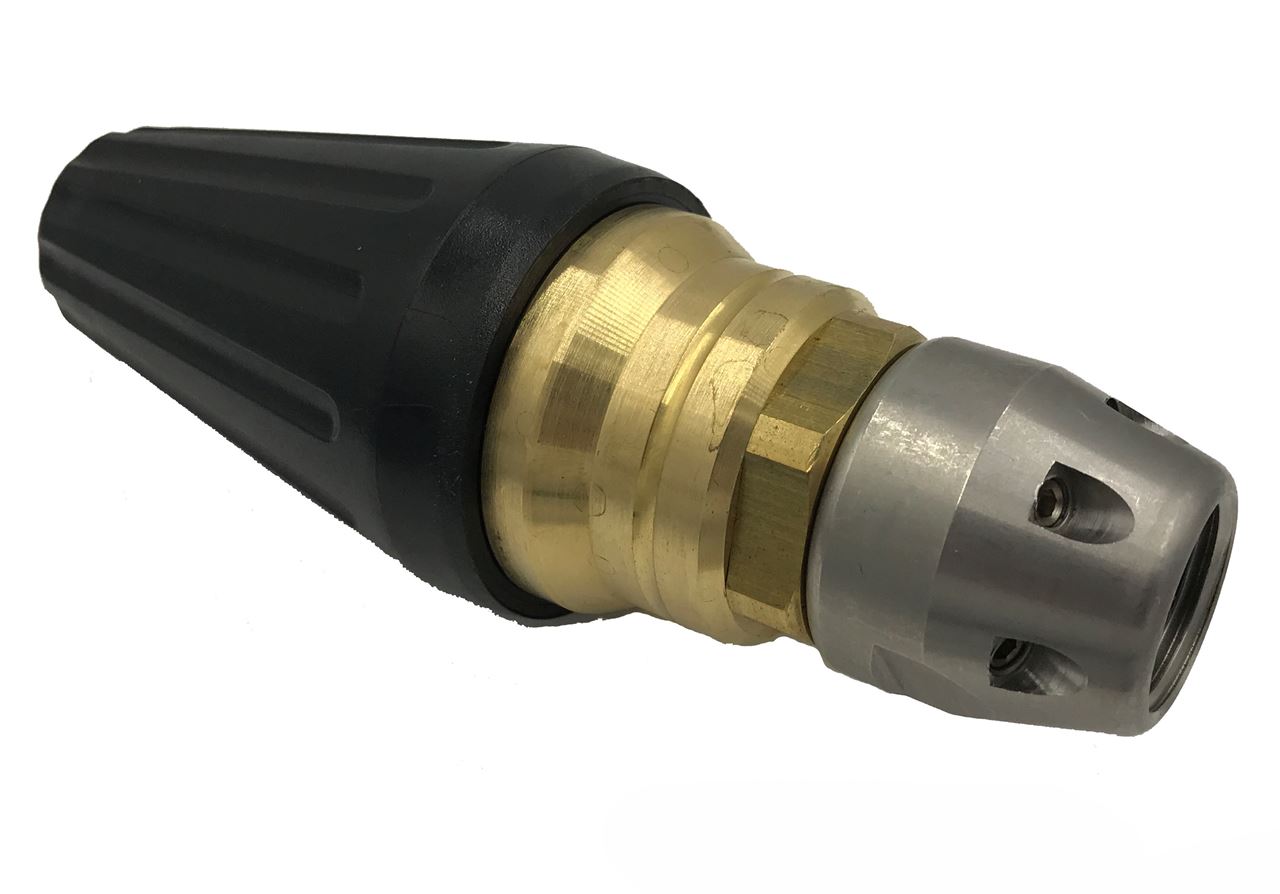

• You will have to add the corresponding ST-457 or ST-559 turbo nozzle to complete the driver (2nd Picture)


Specifications:
• Material: Hardened stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet (Sewer Hose): 1/2” Female
• Outlet (Turbo Nozzle): 1/4” Male
• Nozzle Size: # 12.0 (With a #4.5 ST-457 or #5.0 ST-559 nozzle)
Note: Requires #4.5 ST-457 or #5.0 ST-559 1/4” turbo nozzle (Not Included)
• Weight: 0.30 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
