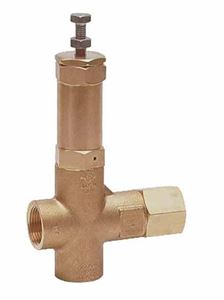

Picture of PA VB 200/150 Pressure Regulating Unloader 53 GPM 2,450 PSI

PA VB 200/150 Pressure Regulating Unloader 53 GPM 2,450 PSI

SKU: 60.5000.00

Brand: P.A. Srl

$349.93

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


PA VB 200/150 Pressure Regulating Unloader Valve 53 GPM 2,450 PSI. At gun shut off, the water flow is bypassed at reduced pressure


Features:
• Sturdy steel and brass construction
• Hexagonal shaped check valve to avoid jamming
• Max pressure adjustment by screw and locknut


Specifications:
• Rated Pressure: 2,200 PSI
• Permissible Pressure: 2,450 PSI
• Rated Flow Rate: 53 GPM
• Rated Temperature: 195° F
• Inlet Port: 1” FPT
• Outlet Port: 1” FPT
• Bypass Port: 1” FPT
• Weight: 72.16 oz



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
