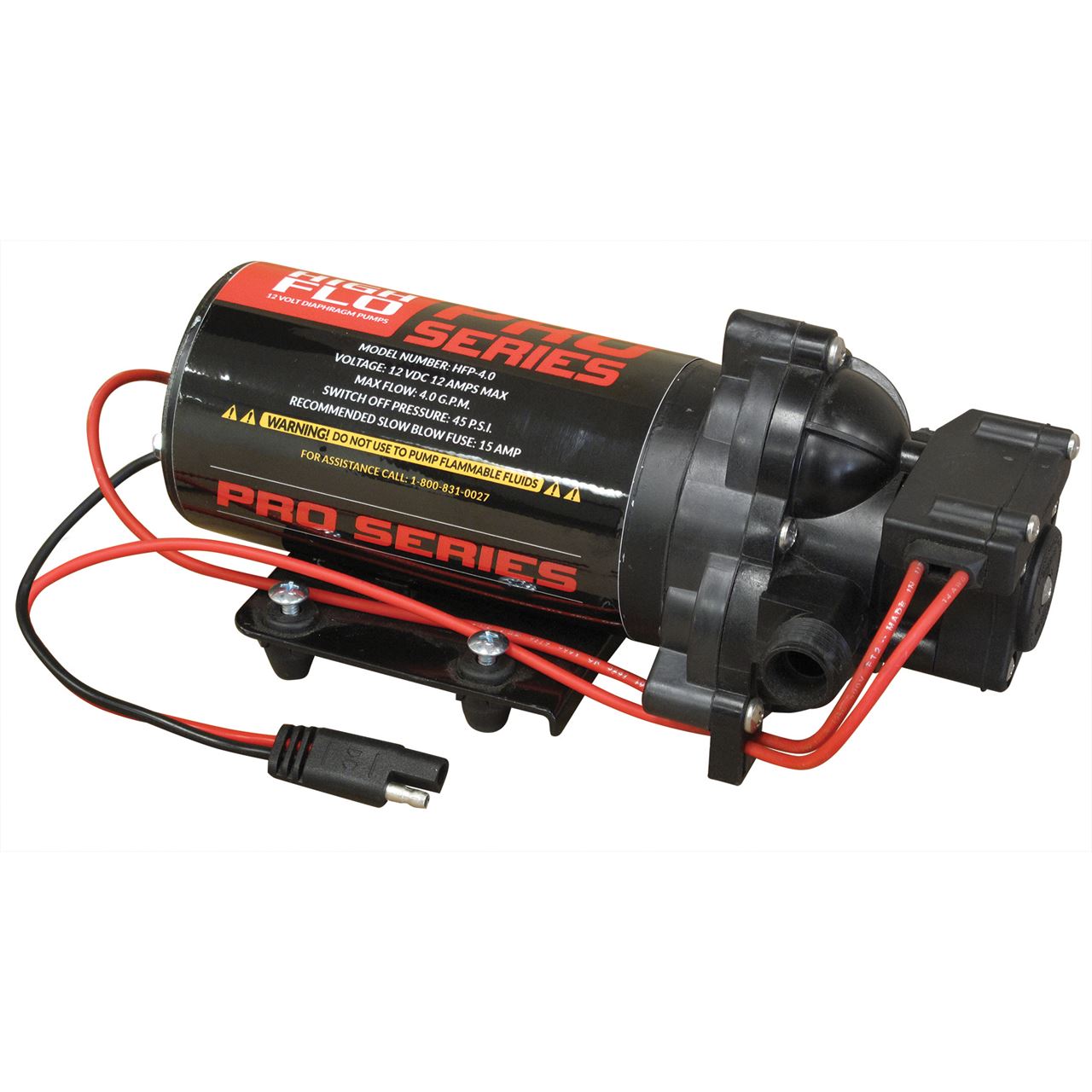

Fimco High-Flo Pro Series 4.0 GPM 45 PSI 12 Volt Diaphragm Pump. Professional grade pump with upgraded elastomers is ideal for use with harsh chemicals and oil-based chemicals with surfactants
Features:• High-Flo 12 Volt Pro Series Pump; 4.0 GPM• Professional Grade Pump - Upgraded Elastomers• Geolast® Diaphragm• Heavy Duty Motor

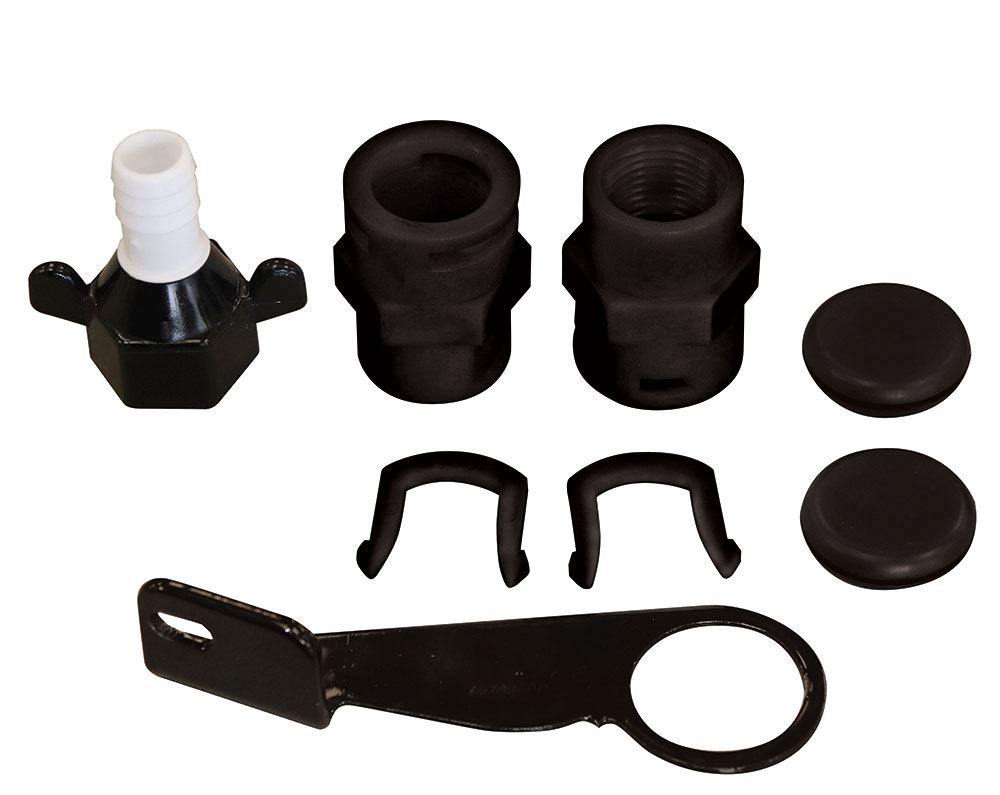

Specifications:• Voltage: 12 VDC 12 AMPS Max• Max Flow: 4.0 GPM• Switch Off Pressure: 45 PSI• Recommended Slow Blow Fuse: 15 AMP• Diaphragm: Geolast®• Check Valve: Viton • 1/2”-14 NPT Male Threads• Two Pin Connector: 6” Long• Includes Retrofit Kit• Fimco Box #: 5281326• Fimco Model #: HFP-4.0• Fimco Pump #: 5151073• DO NOT USE With Flammable Or Combustible Liquids • Packaging: Small box • Weighs 6.45 lbs
Fimco 5281326/5151073 Pump Breakdown
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
The FIMCO Drive Assembly for 4.0 GPM High Flo Pro Series 12V Pump is designed to function with the valve assembly and draw fluid from the tank to provide spray solution to the boom or hand gun.
• OEM replacement part• Works on Fimco High-Flo Models # 5151073, 5281326 & HFP-4.0
The FIMCO 45 PSI Pressure Switch will shut off your pump when flow is stopped. Built to replace the pressure switch for 4.0 GPM High Flo Pro Series Pumps.
The FIMCO Check Valve Kit for 4.0 GPM High Flo Pro Pumps works with the diaphragm/piston/cam bearing kit to create the pumping action for the pumps. Built to replace the check valve assembly for the 4.0 GPM High Flo Pro Pumps.
The FIMCO Pump Mount Grommet for 12V High Flo Pro Series Pumps easily attaches to pump for support. No installation hardware is needed, clip into place and mounting feet stay secure with minimal effort. Built to replace the mounting feet for FIMCO High Flo Pro Series Pump 5151073 and 5151075.
• OEM replacement part.• Works on Fimco High-Flo Models # 5151073, 5151075, 5281325, 5281326, HFP-2.2 & HFP-4.0
The Upper Housing for 4.0 GPM High Flo Pro Series 12V Pump with 1/2" MNPT Ports works with the valve assembly and drive assembly to create the pumping action for the pumps. Built to replace the upper housing for the 5151073 Pump.
The FIMCO Valve Assembly Kit for 4.0 GPM High Flo Pro Series 12V Pump works with the drive assembly to create the pumping action for the pumps. Built to replace the valve assembly kit for the 4.0 GPM High Flo Pumps.
