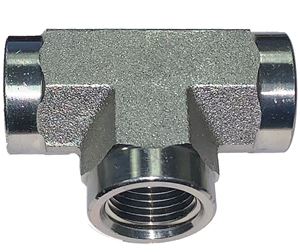

Accutek® S1001-E Steel Female Tee 3/4 FPT x 3/4 FPT x 3/4 FPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 2,500 PSI• Burst Pressure: 10,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.84 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Accutek® S1010-EC Steel Hex Bushing 3/4 Male Pipe x 3/8 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 2,500 PSI• Burst Pressure: 10,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.20 lbs
Accutek® S1016-C Steel 90° Street Elbow 3/8 Male Pipe x 3/8 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.21 lbs
General Pump 15° (Yellow) #2.5 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 15° (Yellow)• Nozzle Size: 2.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
General Pump New & Improved DuraView Inlet Water Filter 1/2" MPT X 3/4 FGH with 1/4" Bypass Ports. For general purpose pressure wash use
Features• NEW FEATURE: over-molded easy grip nut!• Strongest see-through filter on the market• Loadbearing brass spine• Integrated garden hose connector• Flow through design• Clear plastic cover
Specifications• Maximum Temperature: 180° F• Max Volume: 8.0 GPM• Maximum Operating Pressure: 150 PSI• Minimum Operating Pressure: 15 PSI • Materials: Brass, Stainless Steel, Buna-N• Inlet: Female garden hose (FGH)• Outlet: 1/2” NPT-M• Bypass Ports: 1/4” NPT-F Bypass Port• Dimensions: 1.125” x 3.75”• Weight: 1.50 Lbs
