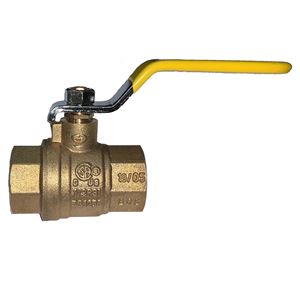

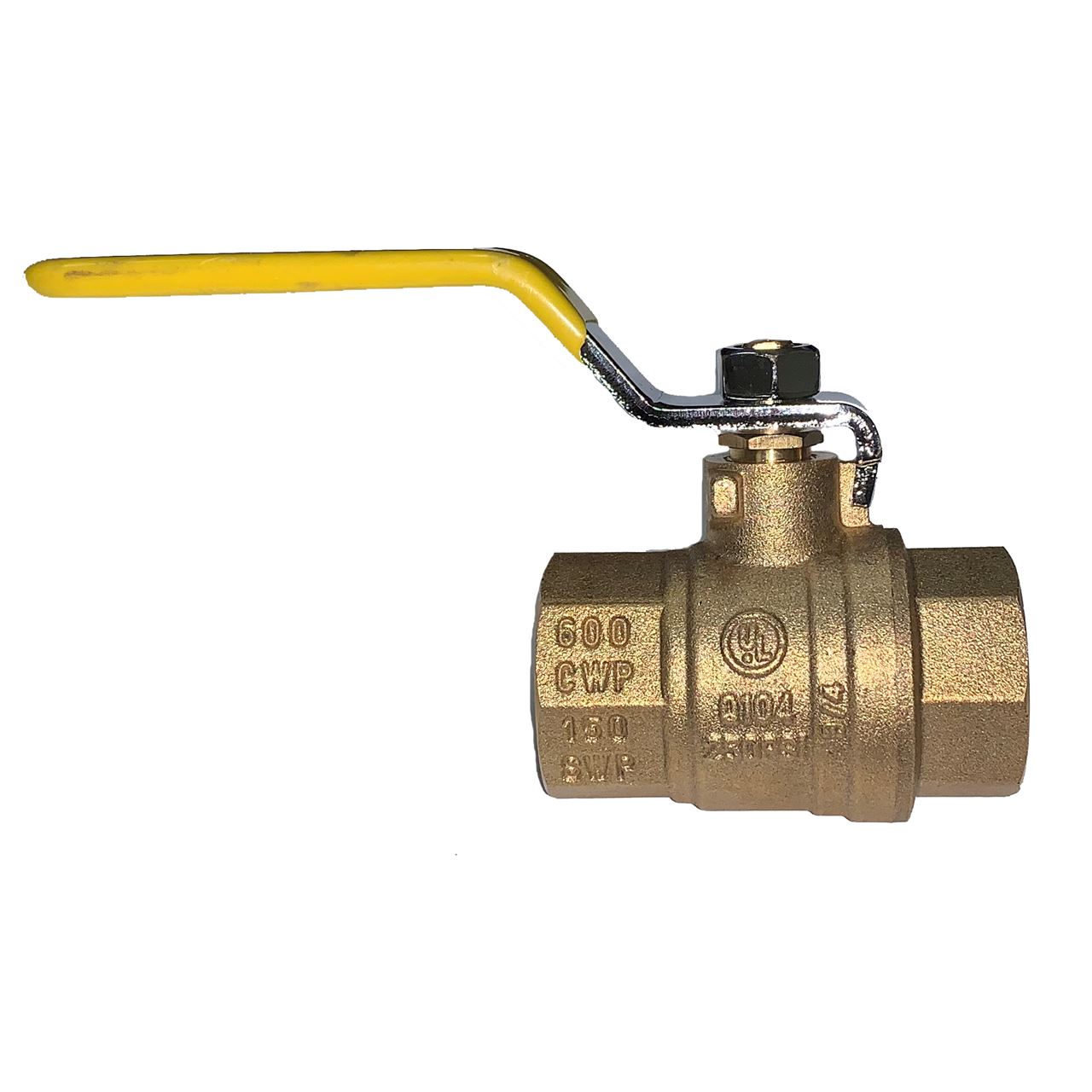

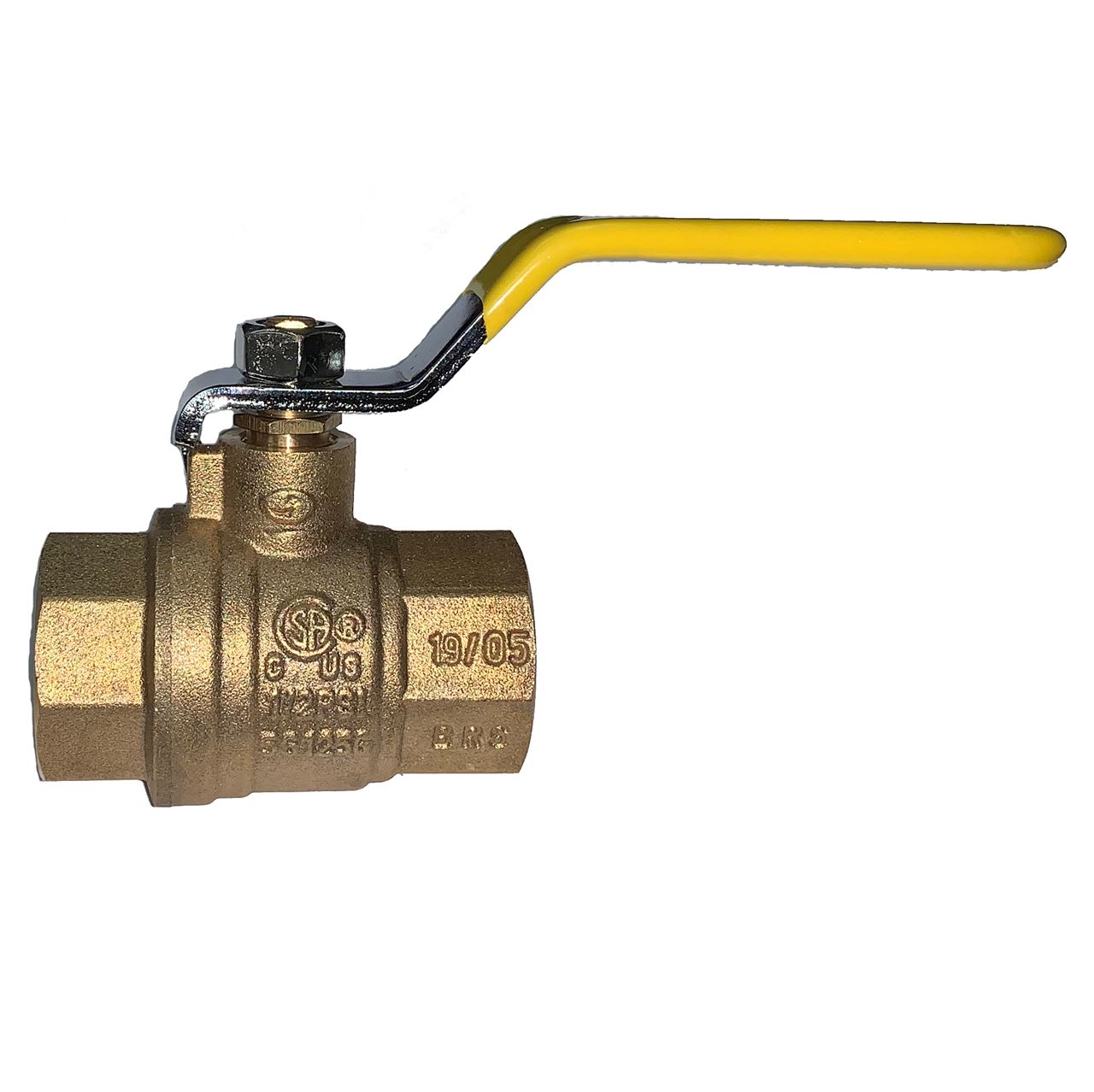

Fairview GAS-FLO™ BV2103-B 1/4" FPT Forged Brass Ball Valve 600 WOG, 150 WSP. Fairview's Forged Brass Ball Valves are full port and CSA, CGA & UL certified
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Features:• Brass valves for use in W.O.G. = Water, Oil and Gas; W.S.P. = Working Steam Pressure applications• Two piece Body• Full Port• Blowout-Proof Stem• PTFE Seats• CSA - ANSI Z21.15/CGA 9.1, ASME B16.44, CGA CR 91-00 • CAN/CGA 3.16, ASME B16.33 & ASME B16.38• UL 842 (MHKZ): Manual valves-250 psi
Specifications:• W.O.G: 600• W.S.P: 150• Pipe Size: 1/4” FPT• Connection Type: Female to Female• Materials: Brass C3700, Chrome & Nickel Plated Steel, PTFE• Weight: 0.16 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
5/16" Stainless Steel Worm Gear Hose Clamp Size 04 - 7/32" to 5/8"
Specifications:• Size: 04• Min. Clamp Dia.: 7/32”• Max. Clamp Dia.: 5/8”• Band Width: 5/16”• Band, Housing & Screw: Series 300 Stainless Steel• Weight: 0.2 oz
Fairview BV4103-B 1/4" NPTF Forged Brass Ball Valve 600 WOG. Fairview's Forged Brass Ball Valves are full port, feature brass balls and fine NPTF threads
Features:• Brass valves for use in W.O.G. = Water, Oil and Gas• Two piece Body• Full Port• Blowout-Proof Stem• PTFE Seats
Specifications:• W.O.G: 600• Pipe Size: 1/4” NPTF• Connection Type: Female to Female• Materials: Brass C3700, Nickel Plated Steel, PTFE• Operating temperature: -40°F to 356°F (-40°C to 180°C)• Weight: 0.21 lbs
Mecline 15° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT
Features• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts• Ceramic insert is resistant to wear• The ceramic insert guarantees a more precise and stronger stream• Stainless Steel AISI303 body
Specifications• Flat fan jet angle: 15°• Nozzle Size: 3.0• Rated Pressure: 4,500 PSI• Permissible Pressure: 5,075 PSI • Rated Temperature: 300° F• Inlet: 1/4” Male NPT• Weight: 0.63 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Fairview 125-4B 1/4 Hose ID x 1/4 Male Pipe Brass Hose Barb Fitting. Brass hose barbs are recommended for general purpose air, water and other low pressure applications. CA360 brass construction prevents rust and corrosion
Specifications:• Working Temperature: -40°F to +220°F, -40°C to +104°C • All hose barbs must be firmly fastened with hose clamps or ferrules• Weight: 0.04 lbs
