Fairview GAS-FLO™ 1/4” ID x 15” AOL Type 1 Thermoplastic Propane Hose Assembly with 1/4” Male Inverted Flare x QCC Fittings. Fairview's Type 1 Thermoplastic QCC Pigtails are CSA Certified to 350 PSI WP -40°F To 140°F

Applications:
• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I
• UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)

TECHNICAL DATA SHEET

INSTALLATION INSTRUCTIONS

Specifications:
• Hose ID: 1/4”
• Assembly Overall Length: 15” (Tolerance ± 1/4 of an inch)
• Temperature: -40°F to +140°F
• Color: Black
• Max Pressure: 350 PSI
• End: 1/4” Brass Male Inverted Flare
• End: QCC1 ACME
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 0.30 lbs

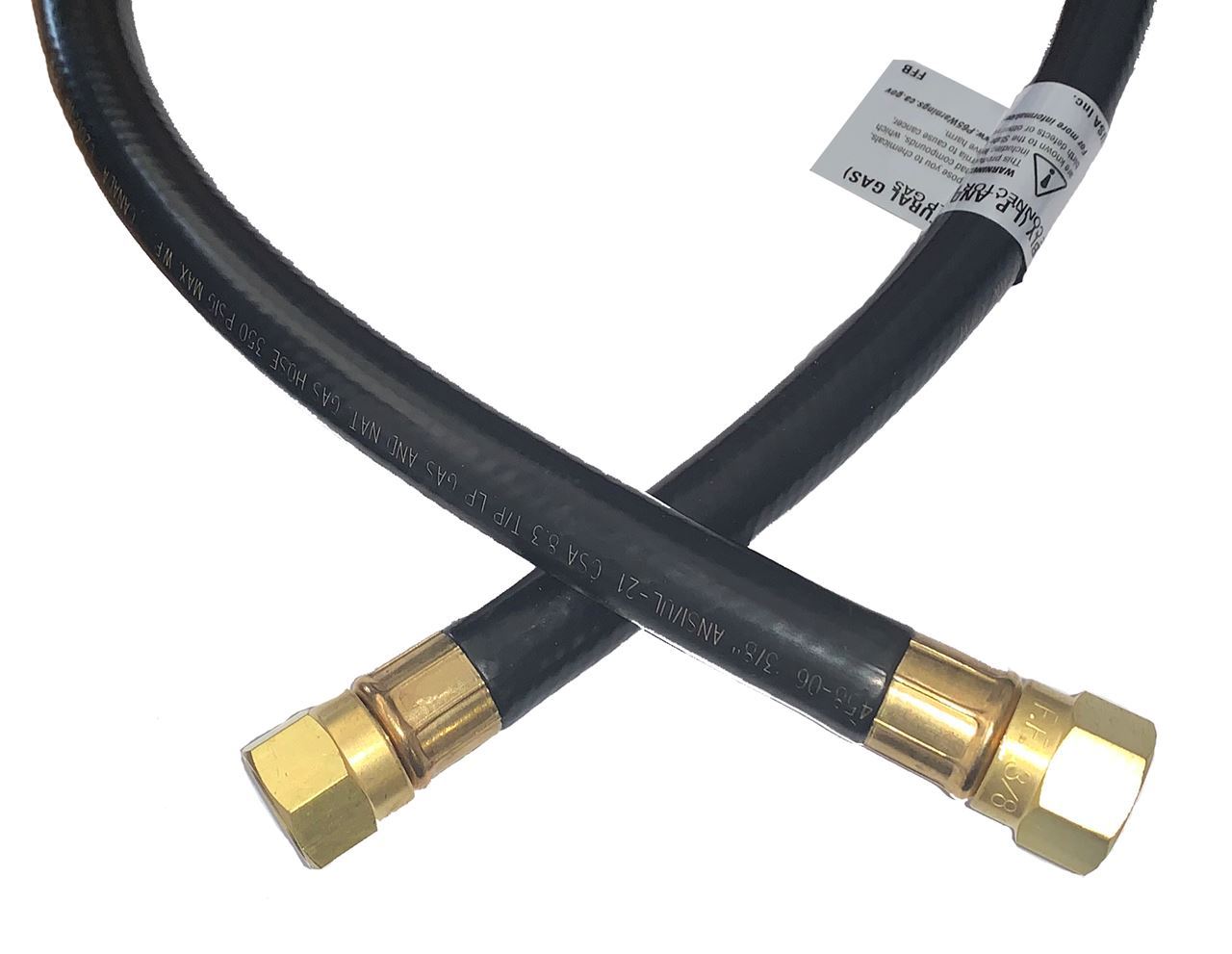

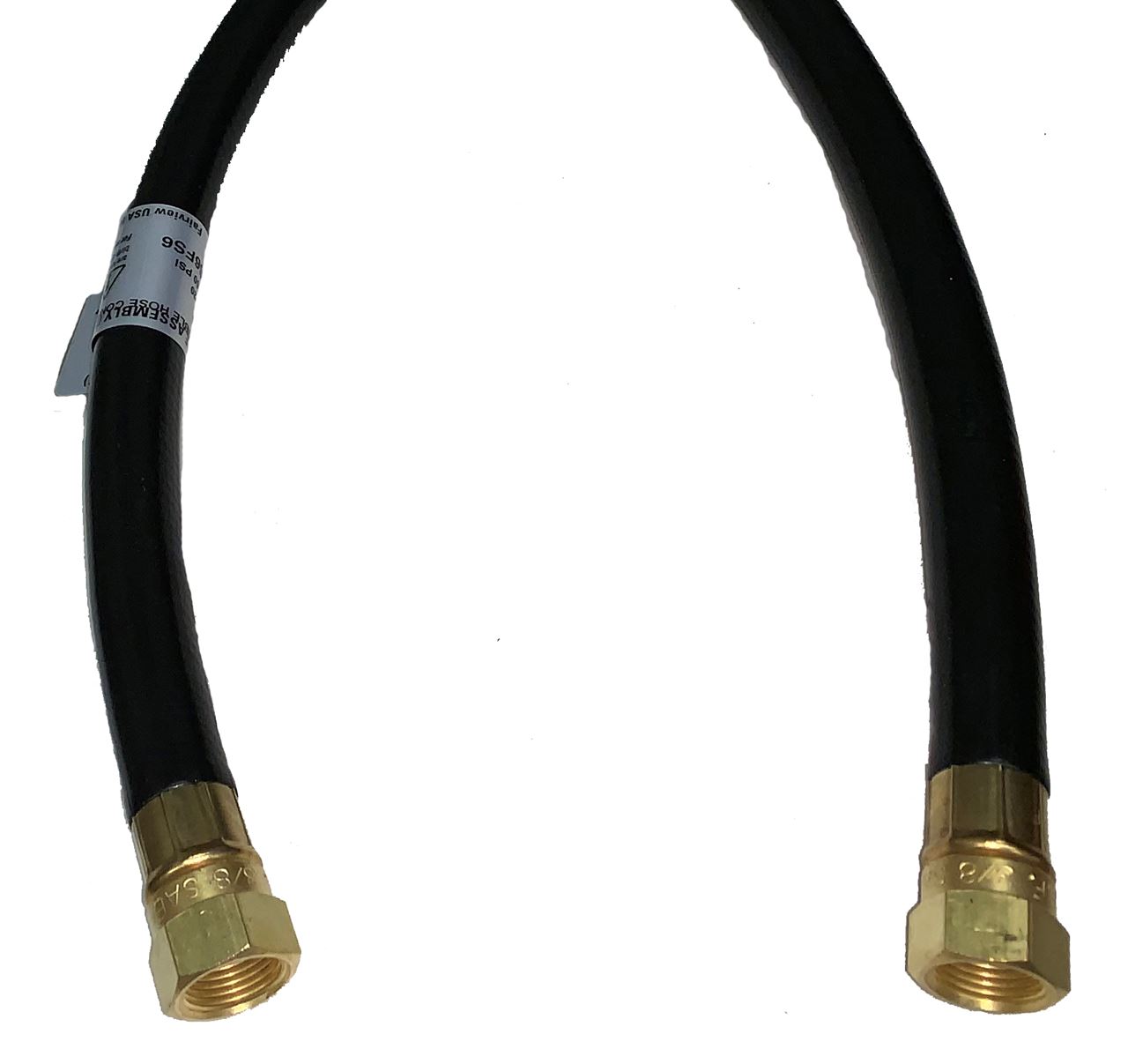

Fairview GAS-FLO™ 3/8” ID x 600” AOL Type 1 Rubber Propane Hose Assembly with 3/8” 45° SAE Female Swivel Flare x 3/8” 45° SAE Female Swivel Flare Fittings. Fairview's Type 1 Rubber F.SAE Assemblies are CSA Certified to 350 PSI WP -60°F To 212°F

Applications:
• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I
• UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)

TECHNICAL DATA SHEET

Specifications:
• Hose ID: 3/8”
• Assembly Overall Length: 600” (Tolerance ±1% of length measured to the nearest 1/8 of an inch)
• Temperature: -60°F to +212°F
• Color: Black
• Max Pressure: 350 PSI
• End: 3/8” Brass 45° SAE Female Swivel Flare
• End: 3/8” Brass 45° SAE Female Swivel Flare
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 7.50 lbs

Fairview 49-6C 3/8 Tube OD x 3/8 Male Pipe Brass 90° Elbow. Fairview's Forged Brass 90° Male Pipe Elbow SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared
• Working Pressure: 1,000 PSI
• Material: Forged brass
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Weight: 0.09 lbs
