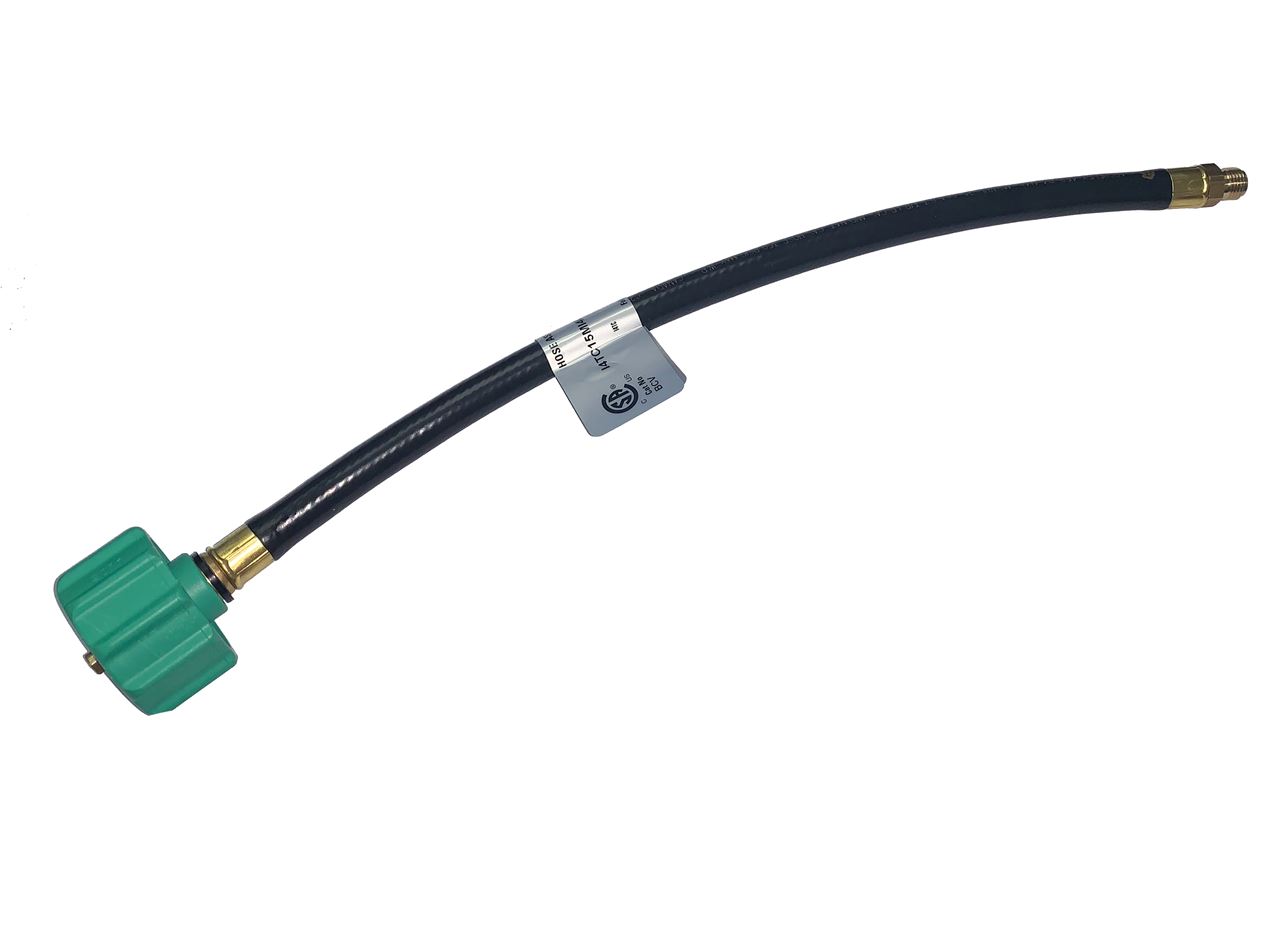

Fairview GAS-FLO™ 1/4” ID x 15” AOL Type 1 Thermoplastic Propane Hose Assembly with 1/4” Male Inverted Flare x QCC Fittings. Fairview's Type 1 Thermoplastic QCC Pigtails are CSA Certified to 350 PSI WP -40°F To 140°F
Applications:• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I • UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)
TECHNICAL DATA SHEET

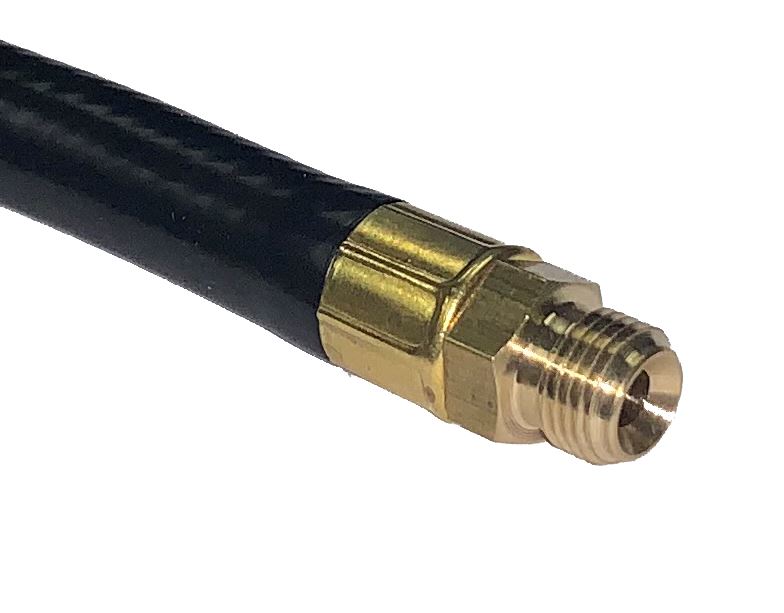

Specifications:• Hose ID: 1/4”• Assembly Overall Length: 15” (Tolerance ± 1/4 of an inch)• Temperature: -40°F to +140°F• Color: Black• Max Pressure: 350 PSI• End: 1/4” Brass Male Inverted Flare• End: High Capacity Green QCC1 ACME• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 0.30 lbs
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview Screw for Installing Brackets Onto GAS-FLO® Propane Regulators
Fairview 122-C 3/8 MPT x 3/8 MPT Brass Hex Nipple. Fairview's Hex Nipple Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP
INSTALLATION DATA SHEET
Specifications:• Use with Brass, Steel, Iron Pipe• Working Pressure: 1,200 PSI• Burst Pressure: 5,000 PSI• Material: Brass• Pipe threads must be sealed using approved thread sealant• Weight: 0.07 lbs
Fairview GAS-FLO® GR-9959 Low Pressure LP Gas Two Stage Regulator 1/4 FPT In x 3/8 FPT Out 9:00 Vent 225,000 BTU/HR. Fairview's GAS-FLO® Two Stage LP Gas Regulators are ideal for use on RV's and commercial size grill
Features:• The X-SERIES* model GR-9950 and GR-9959 regulator combines both a high pressure first stage and a low pressure second stage regulator into a single unit• Ideally designed for RV applications, these regulators ensure a smooth and continuous flow of gas to all appliances• Excess Flow• Zinc Die Cast• Molded Rubber Diaphragms• CSA Listed to U.L. 144• 2nd Stage Relief Mechanism Per U.L. 144• Adjusting Screw and Dust Cap Design• Powder Coated
Specifications:• Inlet: 1/4 FPT• Outlet: 3/8 FPT • Vent position: 9:00 / 90°• Capacity BTU/Hr Propane: 225,000• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 1.25 lbs
Fairview GAS-FLO® Z Mounting Bracket for Fairviiew RV LP-Gas Regulators
