Picture of Gas-Flo Low Pressure LP Gas Two Stage Regulator 1/4 FPT x 3/8 FPT 9:00 Vent

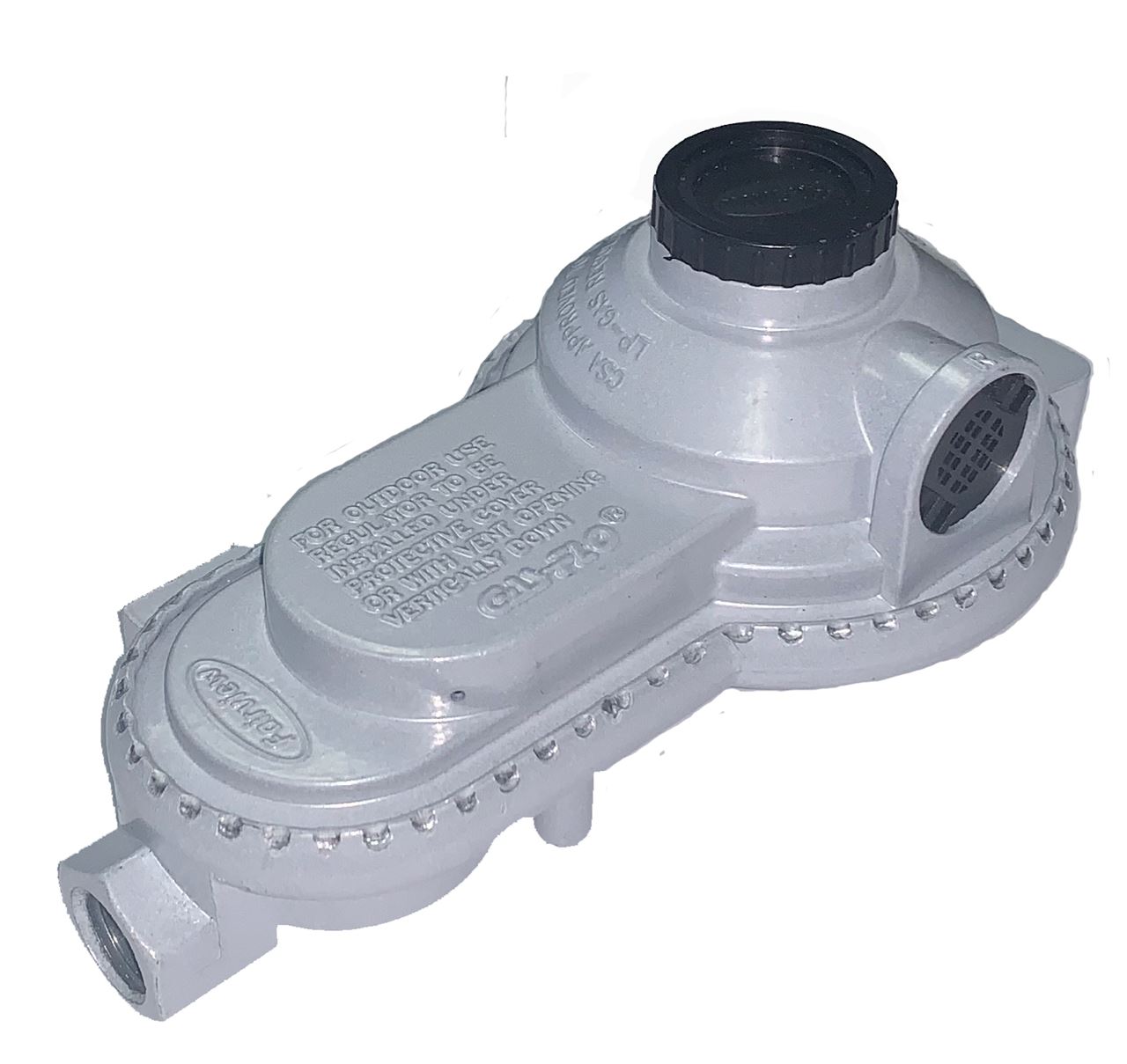

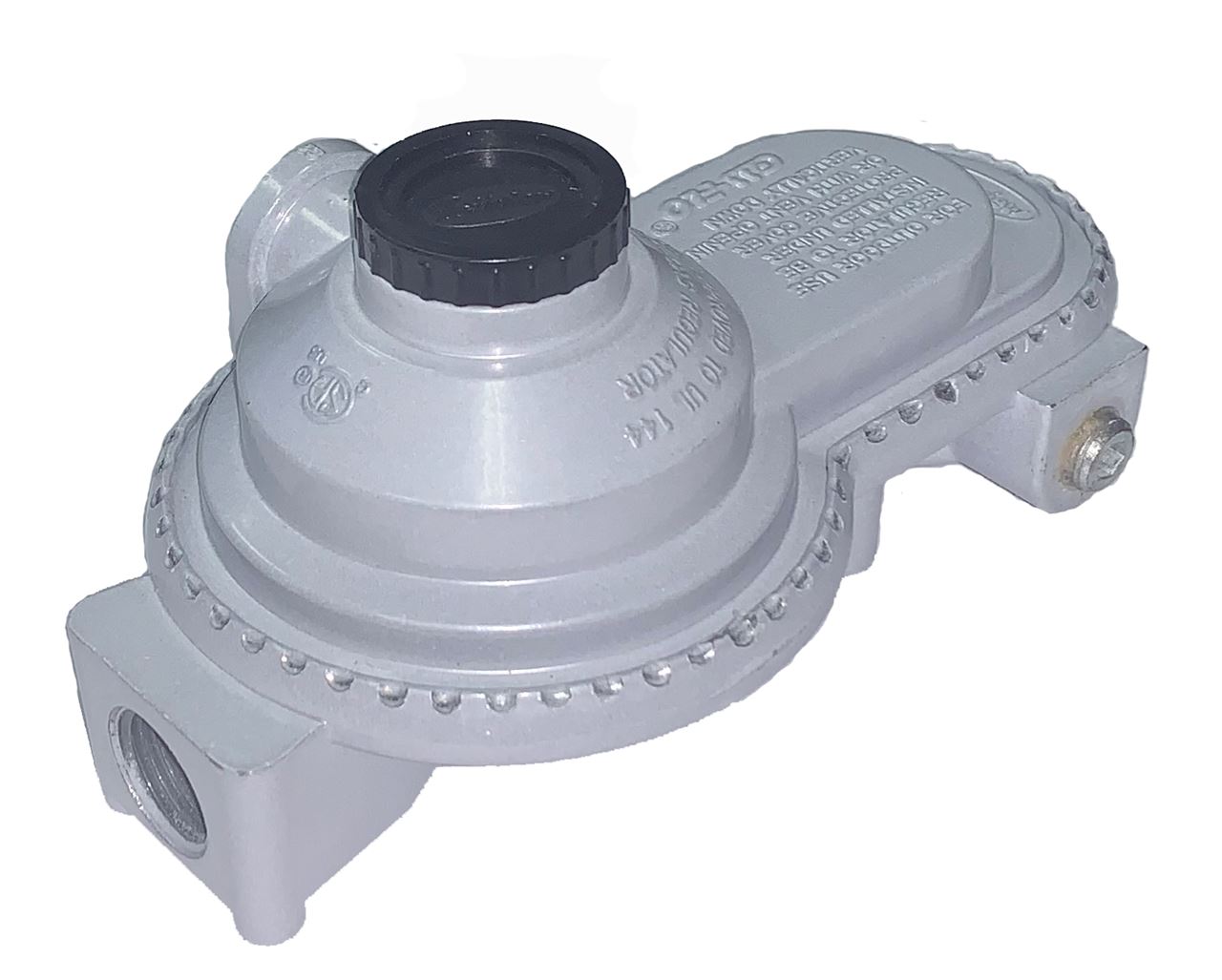

Gas-Flo Low Pressure LP Gas Two Stage Regulator 1/4 FPT x 3/8 FPT 9:00 Vent

SKU: GR-9959

Brand: Fairview USA Inc.

$29.35

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Fairview GAS-FLO® GR-9959 Low Pressure LP Gas Two Stage Regulator 1/4 FPT In x 3/8 FPT Out 9:00 Vent 225,000 BTU/HR. Fairview's GAS-FLO® Two Stage LP Gas Regulators are ideal for use on RV's and commercial size grill

Features:
• The X-SERIES* model GR-9950 and GR-9959 regulator combines both a high pressure first stage and a low pressure second stage regulator into a single unit
• Ideally designed for RV applications, these regulators ensure a smooth and continuous flow of gas to all appliances
• Excess Flow
• Zinc Die Cast
• Molded Rubber Diaphragms
• CSA Listed to U.L. 144
• 2nd Stage Relief Mechanism Per U.L. 144
• Adjusting Screw and Dust Cap Design
• Powder Coated

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlet: 1/4 FPT
• Outlet: 3/8 FPT
• Vent position: 9:00 / 90°
• Capacity BTU/Hr Propane: 225,000
TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 1.25 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
