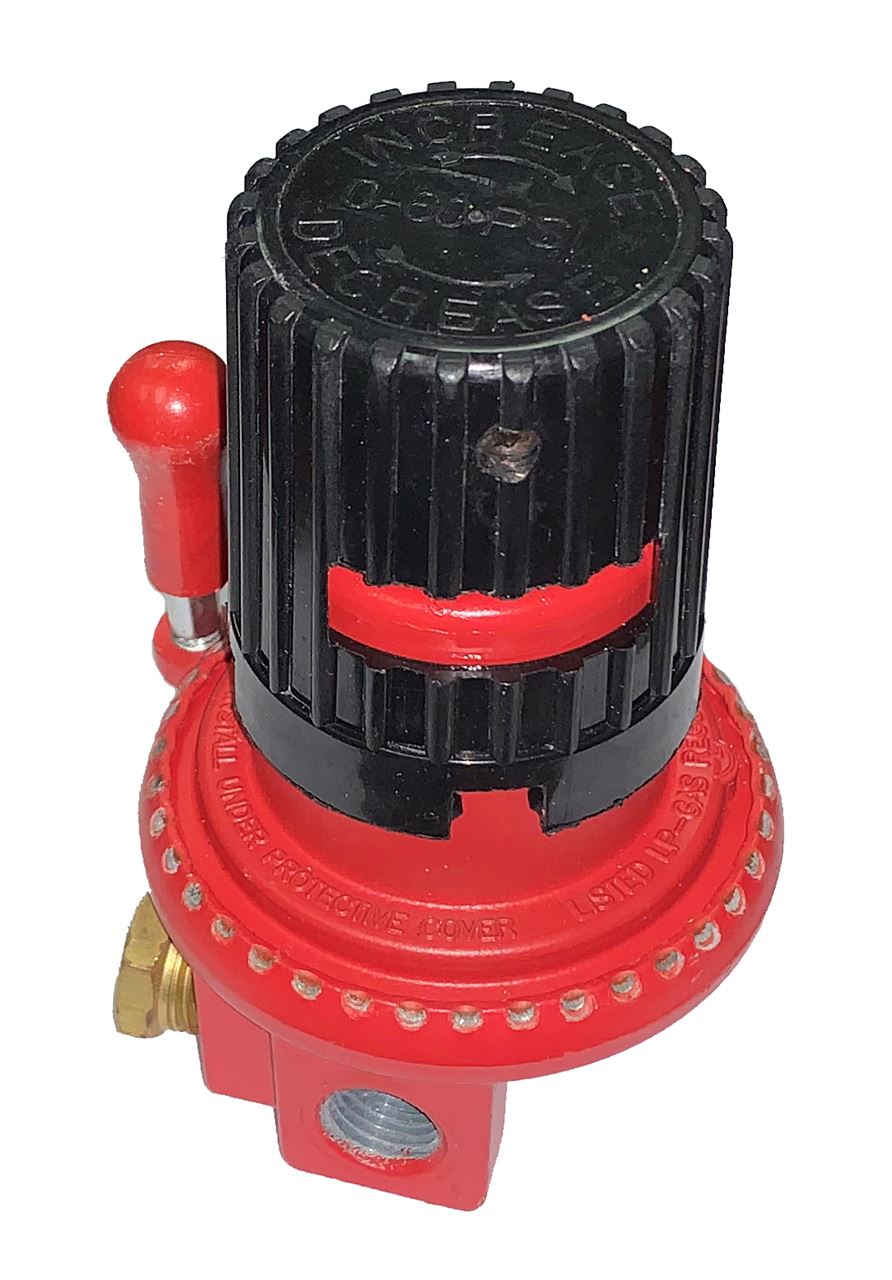

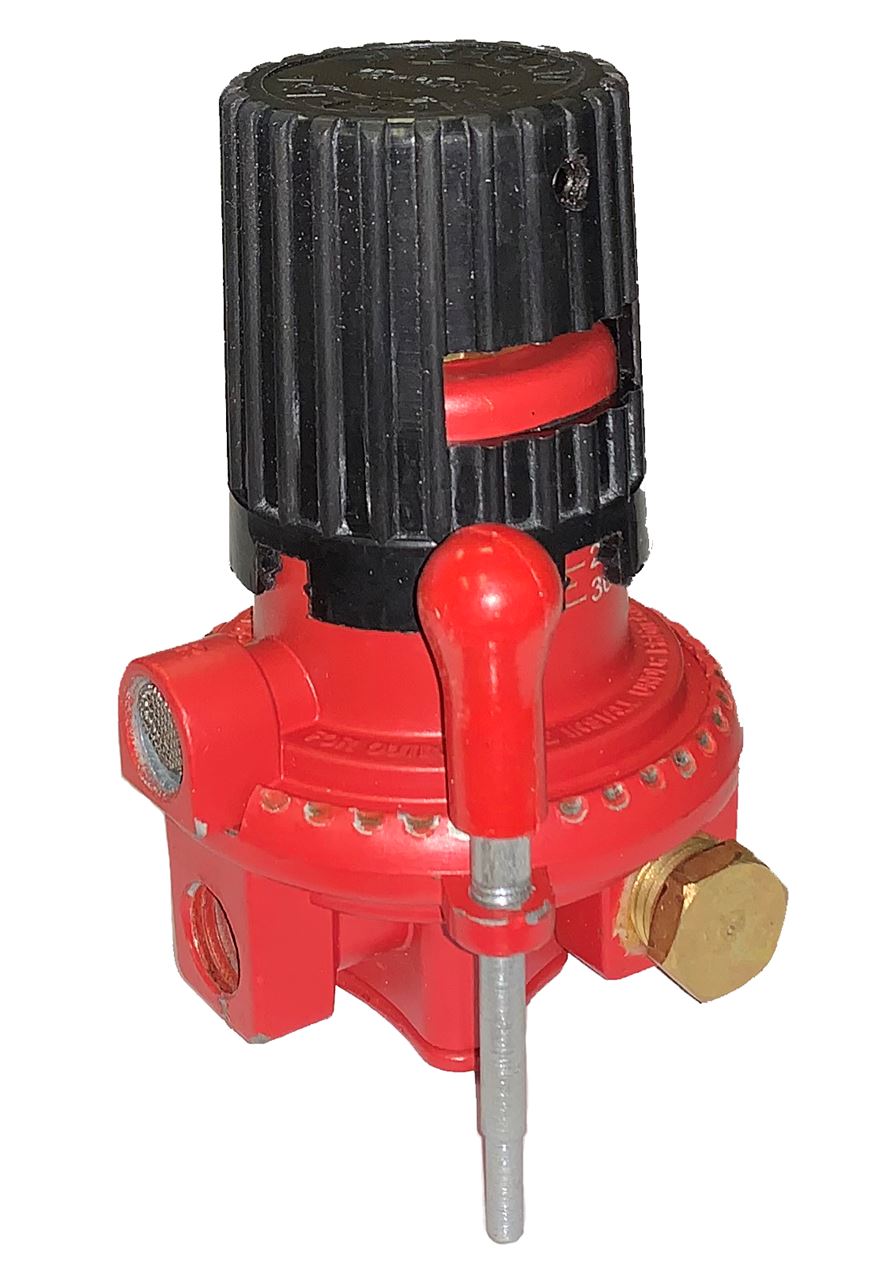

Picture of Gas-Flo High Pressure Lbs to Lbs LP-Gas Regulator 1/4 FPT 0-60 PSIG Range

Gas-Flo High Pressure Lbs to Lbs LP-Gas Regulator 1/4 FPT 0-60 PSIG Range

SKU: GR-360

Brand: Fairview USA Inc.

$30.56

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Fairview GAS-FLO® GR-360 High Pressure Pounds-To-Pounds LP Gas Regulator 1/4 FPT 2,000,000 BTU/HR 0-60 PSIG Range. Fairview's GAS-FLO® Lbs to Lbs adjustable LP-Gas Regulators are ideal for LP torches and other high flow applications

Applications:
• Designed for cylinder systems in liquid or vapor service
• Delivery pressures are adjustable from 0-60 PSI
• Ideally suited for a variety of industrial applications
• Torches • Construction Heaters • Fish Cookers • Tar Pot Heaters • Flame Cultivators
• UL Listed

TECHNICAL DATA SHEET

Specifications:
• Inlet: 1/4 FPT
• Outlet: 1/4 FPT
• Delivery Pressure Range: 0-60 PSIG
• Outlet Pressure (Set Point): 60 PSIG
• Maximum Inlet Pressure: 250 PSIG
• Capacity BTU/Hr Propane: 2,000,000
• Gauge Port: 1/4 FPT (Plugged)
TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 1.30 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

Gas-Flo 1 Stage Hi-Pressure LP-Gas Regulator 1/4 FPT 30 PSIG Set Outlet

SKU: GR-630B


Fairview GAS-FLO® GR-630B Single Stage Hi-Pressure RV Camper LP / Propane Gas Regulator 1/4 FPT 500,000 BTU/HR. This Fairview's GAS-FLO® High Pressure LP Regulator has outlet setting 30 PSIG

Applications:
• Ideally suited for applications where pounds instead of inches of w.c. are required
• Factory pre-set 30 PSIG
• Used on Gas Grills, Smokers and Fish Cookers
• UL Listed

TECHNICAL DATA SHEET

Specifications:
• Inlet: 1/4 FPT
• Outlet: 1/4 FPT
• Outlet Pressure (Set Point): 30 PSIG
• Inlet Pressure: 100 PSIG
• Capacity At 10% Droop from set point BTU/Hr: 500,000
TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 0.45 lbs

  Price: $11.26

100 PSI Bottom Mount 2" ABS Pressure Gauge

SKU: 1124DAB100


Valley Industries Series 24 Single Scale General Service 100 PSI Bottom Mount 2" ABS Dry Pressure Gauge. These gauges are designed for use with gas, oil, and water or any medium not corrosive to brass or bronze


Features:
• Dial Range: 0 – 100 PSI
• Casing: 2" Diameter
• Movement: Brass
• Bourdon Tube: C-Shaped in copper alloy
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: ABS
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• Accuracy: ASME/ANSI B40.1 Grade B (3- 2-3%)
• Fill Material: Dry only
• Wetted Parts: Copper alloy
• Weight: 0.15 lbs.



  Price: $5.00
