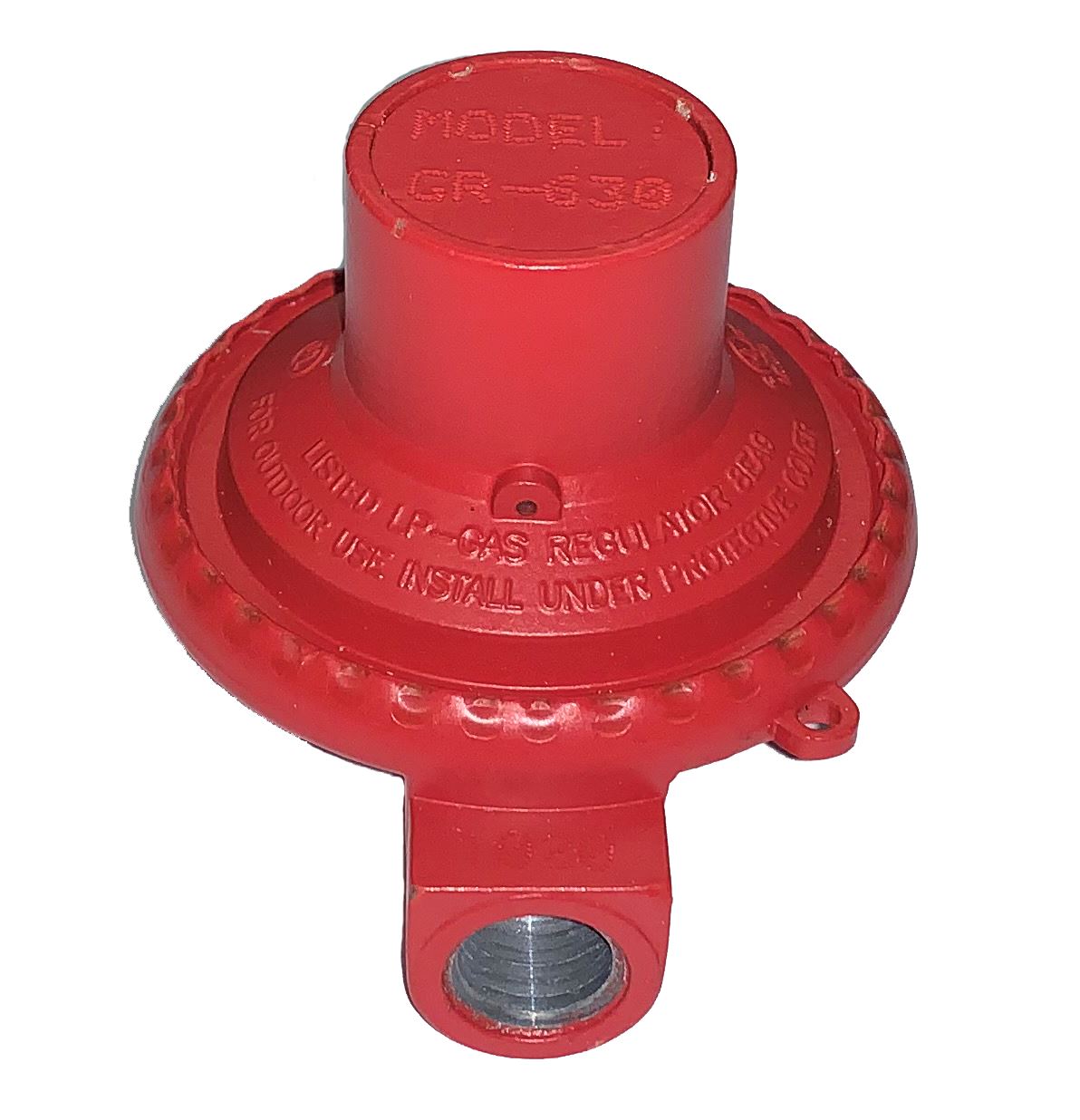

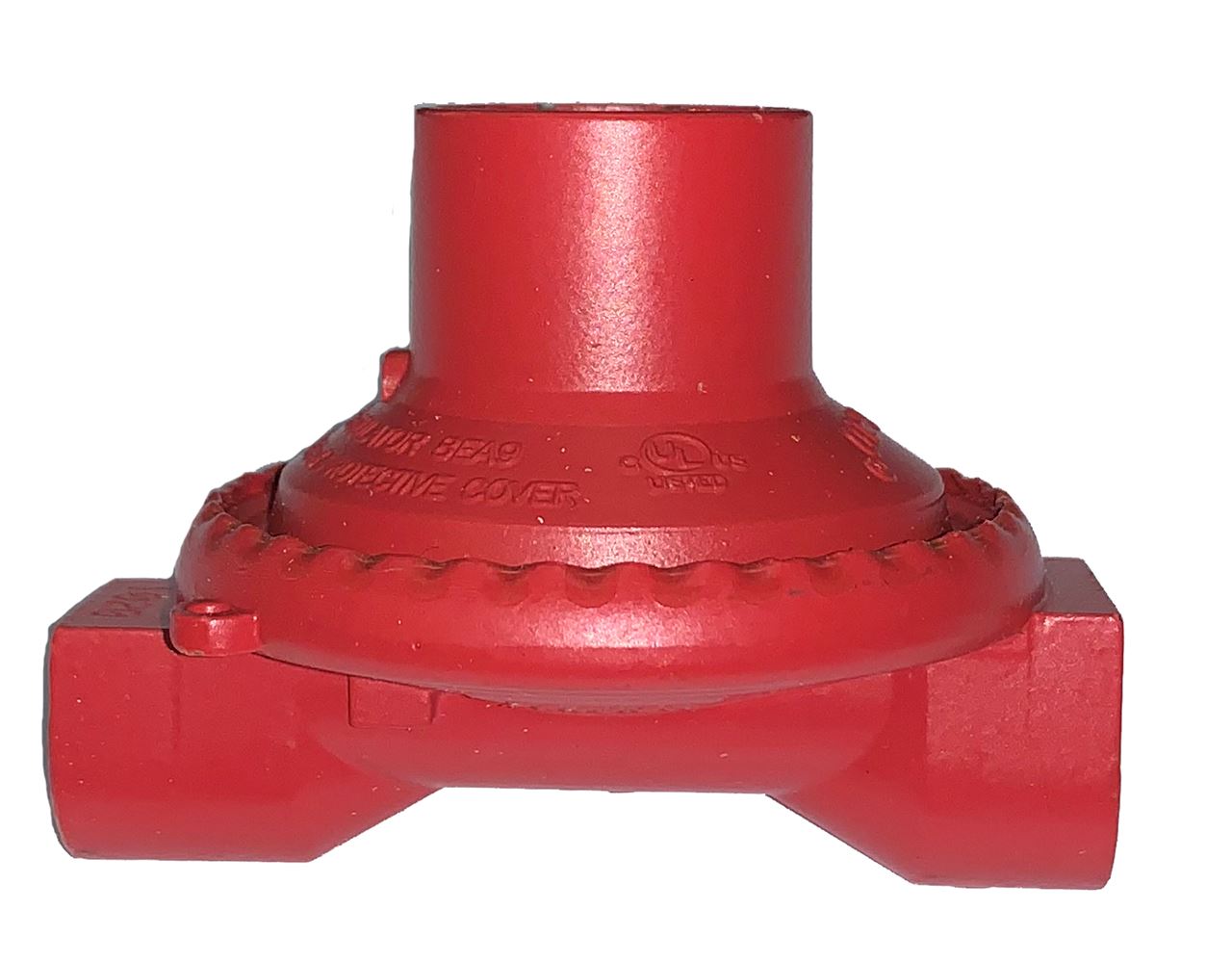

Fairview GAS-FLO® GR-630B Single Stage Hi-Pressure RV Camper LP / Propane Gas Regulator 1/4 FPT 500,000 BTU/HR. This Fairview's GAS-FLO® High Pressure LP Regulator has outlet setting 30 PSIG
Applications:• Ideally suited for applications where pounds instead of inches of w.c. are required• Factory pre-set 30 PSIG• Used on Gas Grills, Smokers and Fish Cookers• UL Listed
TECHNICAL DATA SHEET
Specifications:• Inlet: 1/4 FPT• Outlet: 1/4 FPT • Outlet Pressure (Set Point): 30 PSIG• Inlet Pressure: 100 PSIG • Capacity At 10% Droop from set point BTU/Hr: 500,000• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 0.45 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview GAS-FLO™ 1/4” ID x 16” AOL Type 1 Thermoplastic Propane Hose Assembly with 1/4” Male Inverted Flare x QCC Fittings. Fairview's Type 1 Thermoplastic QCC Pigtails are CSA Certified to 350 PSI WP -40°F To 140°F
Applications:• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I • UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)
INSTALLATION INSTRUCTIONS
Specifications:• Hose ID: 1/4”• Assembly Overall Length: 16” (Tolerance ± 1/4 of an inch)• Temperature: -40°F to +140°F• Color: Black• Max Pressure: 350 PSI• End: 1/4” Brass Male Inverted Flare• End: High Capacity Green QCC1 ACME• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 0.30 lbs
Fairview GAS-FLO® FF-KIT117 Custom 262,500 BTU 2 Stage Auto-Changeover LPG Regulator Kit With (2) 12" Pigtails and 1/2 Male SAE 45° Flare Fitting Outlet. This is an assembled 2 bottle regulator kit ready to mount
Features:• The Fairview X-SERIES Compact Automatic Changeover Regulator redirects LP gas vapor flow from an empty designated service cylinder to a reserve cylinder, without interruption of service• It features a green indicator dome which changes to red when the service cylinder needs to be refilled
Kit Includes:• (1) GAS-FLO® GR-9994 2 Stage Automatic Changeover Regulator• (1) GAS-FLO® GR-5994 Protective Cover for GR-9994• (1) GAS-FLO® GR-RVB RV Style U Mounting Bracket• (2) GAS-FLO® GR-SCREW Screw for Installing Brackets Onto Gas-Flo Propane Regulators• (2) GAS-FLO® I4TC12MI4QC 1/4 ID 12" Type 1 Propane Hose Assy Thermoplastic 1/4 MI x QCC• (1) GAS-FLO® 48-8C 1/2 Male SAE 45° flare fitting (Installed)
INSTALLATION DATA SHEET
Specifications:• Inlets (2): High Capacity Green QCC1 ACME• Outlet: 1/2 Male SAE 45° flare fitting• Capacity BTU/Hr Propane (Service Cylinder): 262,500• Capacity BTU/Hr Propane (Reserve Cylinder): 210,000• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 2.40 lbs
Fairview GAS-FLO® GR-9994 Compact Low Pressure LP Gas Two Stage Automatic Changeover Regulator 1/4 F. Inv. Flare In (2) x 3/8 FPT Out. Fairview's GAS-FLO® LP-Gas Two Stage Automatic Changeover is used by Recreational Vehicle (RV) Manufacturers across North America
Features:• The Fairview X-SERIES Compact Automatic Changeover Regulator redirects LP gas vapor flow from an empty designated service cylinder to a reserve cylinder, without interruption of service• It features a green indicator dome which changes to red when the service cylinder needs to be refilled• Excess Flow• Zinc Die Cast• Molded Rubber Diaphragms• CSA Listed to U.L. 144• 2nd Stage Relief Mechanism Per U.L. 144 • Powder Coated
Specifications:• Inlets (2): 1/4 Female Inverted Flare• Outlet: 3/8 FPT• Capacity BTU/Hr Propane (Service Cylinder): 262,500• Capacity BTU/Hr Propane (Reserve Cylinder): 210,000• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 1.45 lbs
Fairview WR-RV55 Lead-Free RV Water Pressure Regulator 55 PSI. Fairview's Lead-Free R.V. Water Pressure Regulator offers the highest water flow available while maintaining 55 PSI WP Max
Features:• Lead-Free design• Keeps outlet pressure at 55 PSI• Highest water flow available• Screened washer filters debris• Fits all standard water hose and riser connections• Heavy-Duty impact resistant design
Specifications:• Connections: FWH X MWH• Weight: 8.2 oz
