Picture of Gas-Flo Custom 2 Stage Auto-Changeover LPG Regulator Kit W/ 12" Pigtails 345,000 BTU

Gas-Flo Custom 2 Stage Auto-Changeover LPG Regulator Kit W/ 12" Pigtails 345,000 BTU

SKU: TRAILTRAVEL-KIT2400G

Brand: Fairview USA Inc.

$78.45

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description

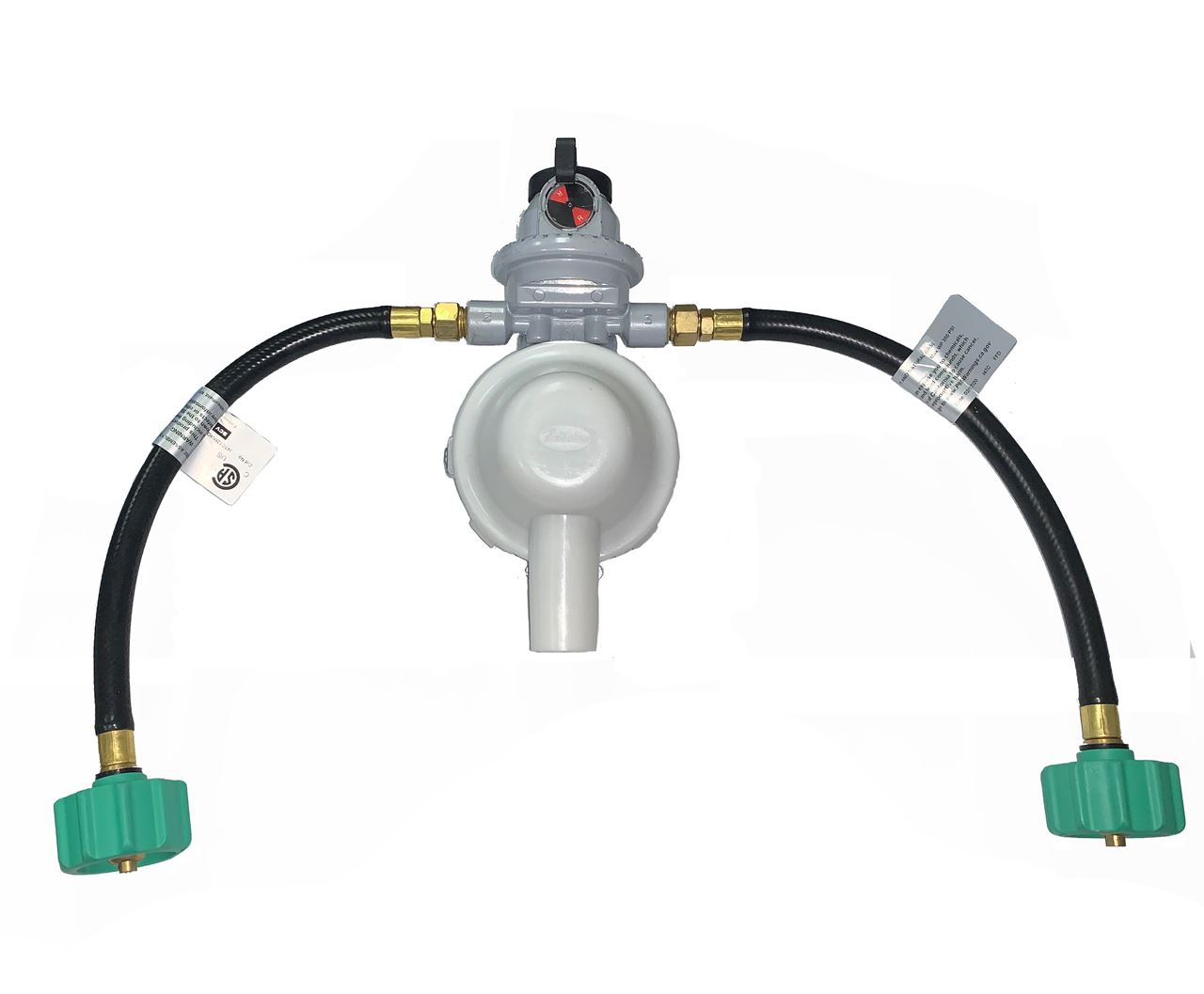

Fairview GAS-FLO® TRAILTRAVEL-KIT2400G Custom 345,000 BTU 2 Stage Auto-Changeover LPG Regulator Kit With (2) 12" Pigtails and 3/8 FPT Outlet. This is an assembled 2 bottle regulator kit ready to mount

Features:
• The Fairview X-SERIES Compact Automatic Changeover Regulator redirects LP gas vapor flow from an empty designated service cylinder to a reserve cylinder, without interruption of service
• It features a green indicator dome which changes to red when the service cylinder needs to be refilled
• Highest Flow Available in Cold Temps!

Kit Includes:

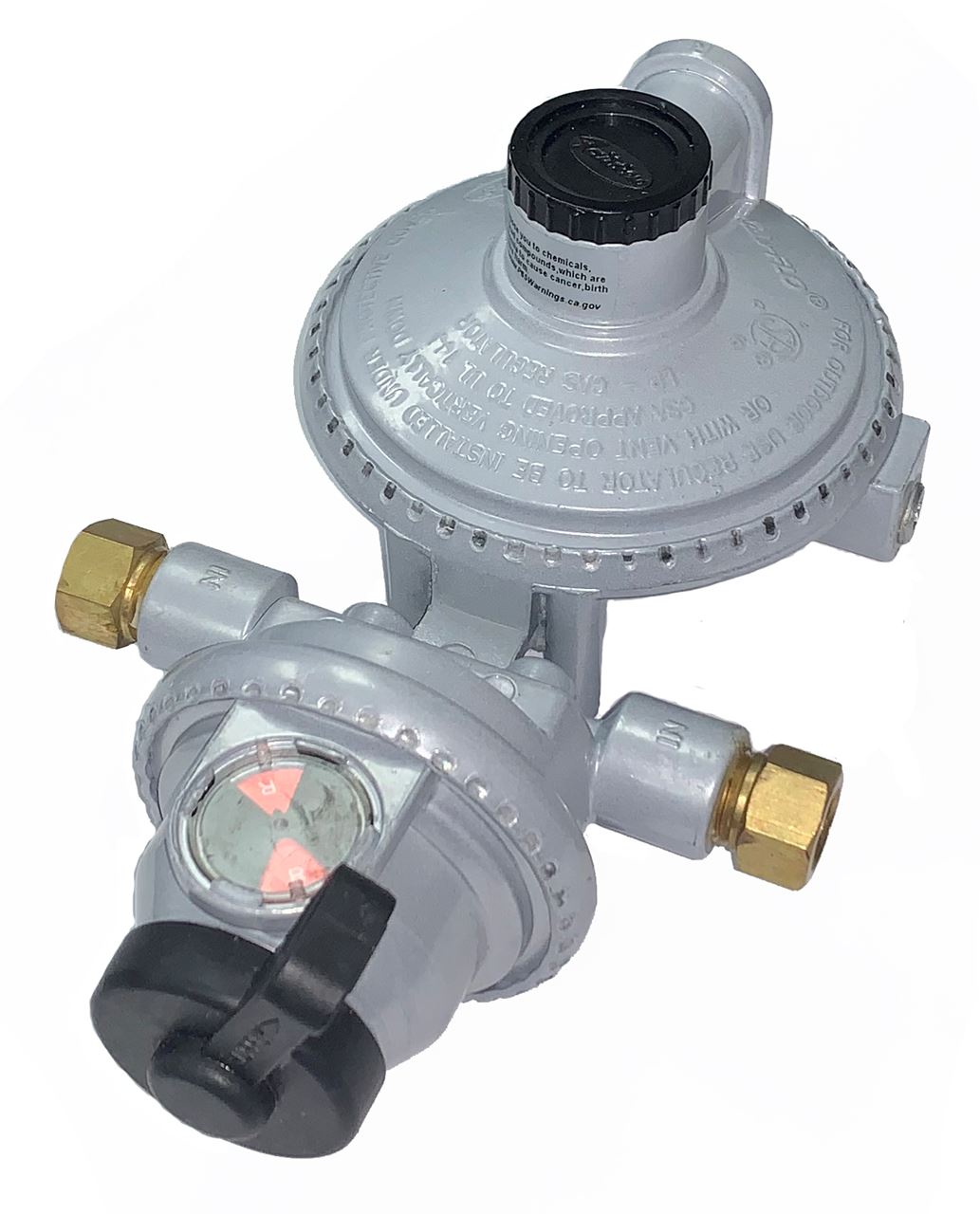

• (1) GAS-FLO® GR-9984 2 Stage Automatic Changeover Regulator

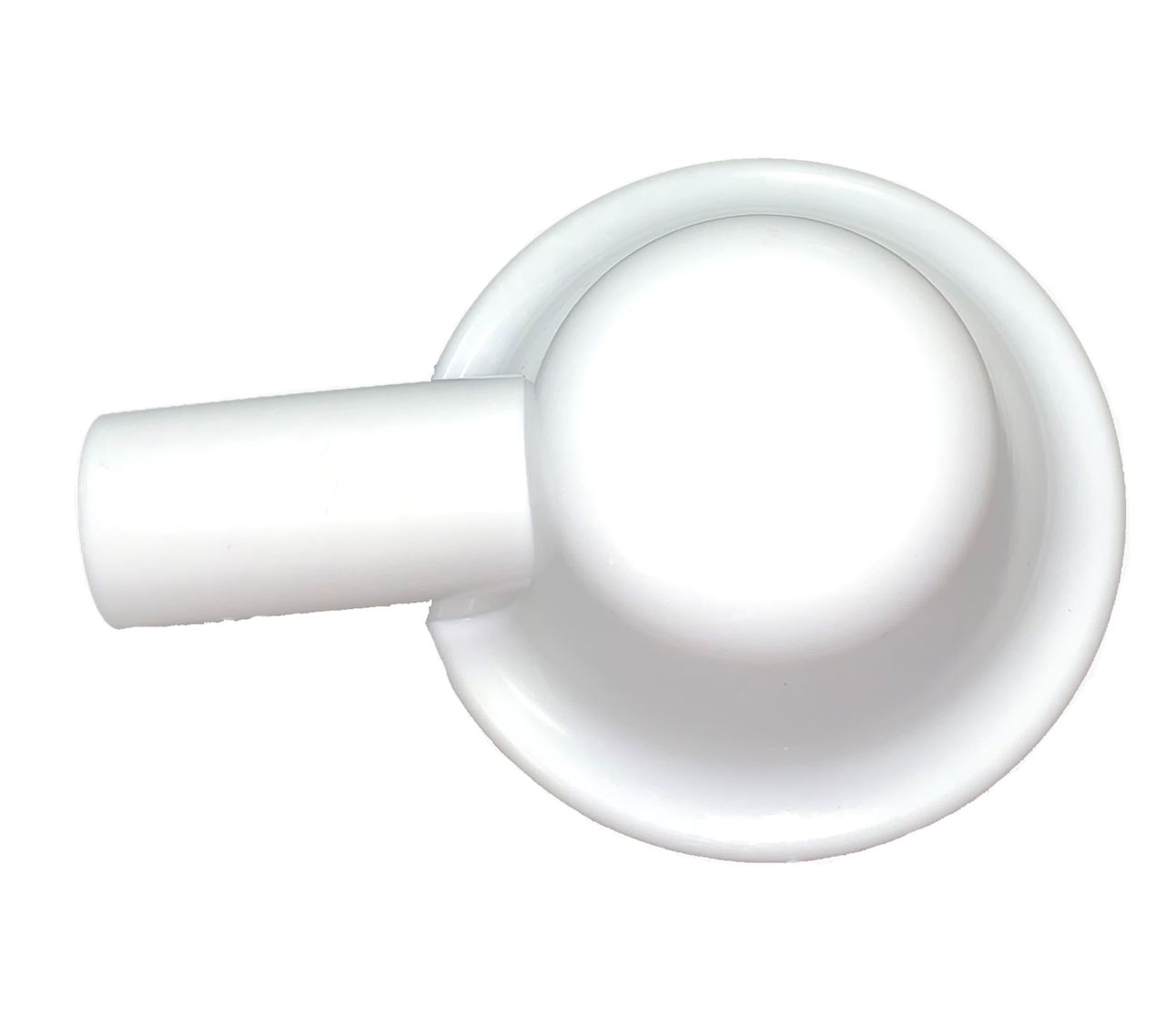

• (1) GAS-FLO® GR-5984 Protective Cover for GR-9984

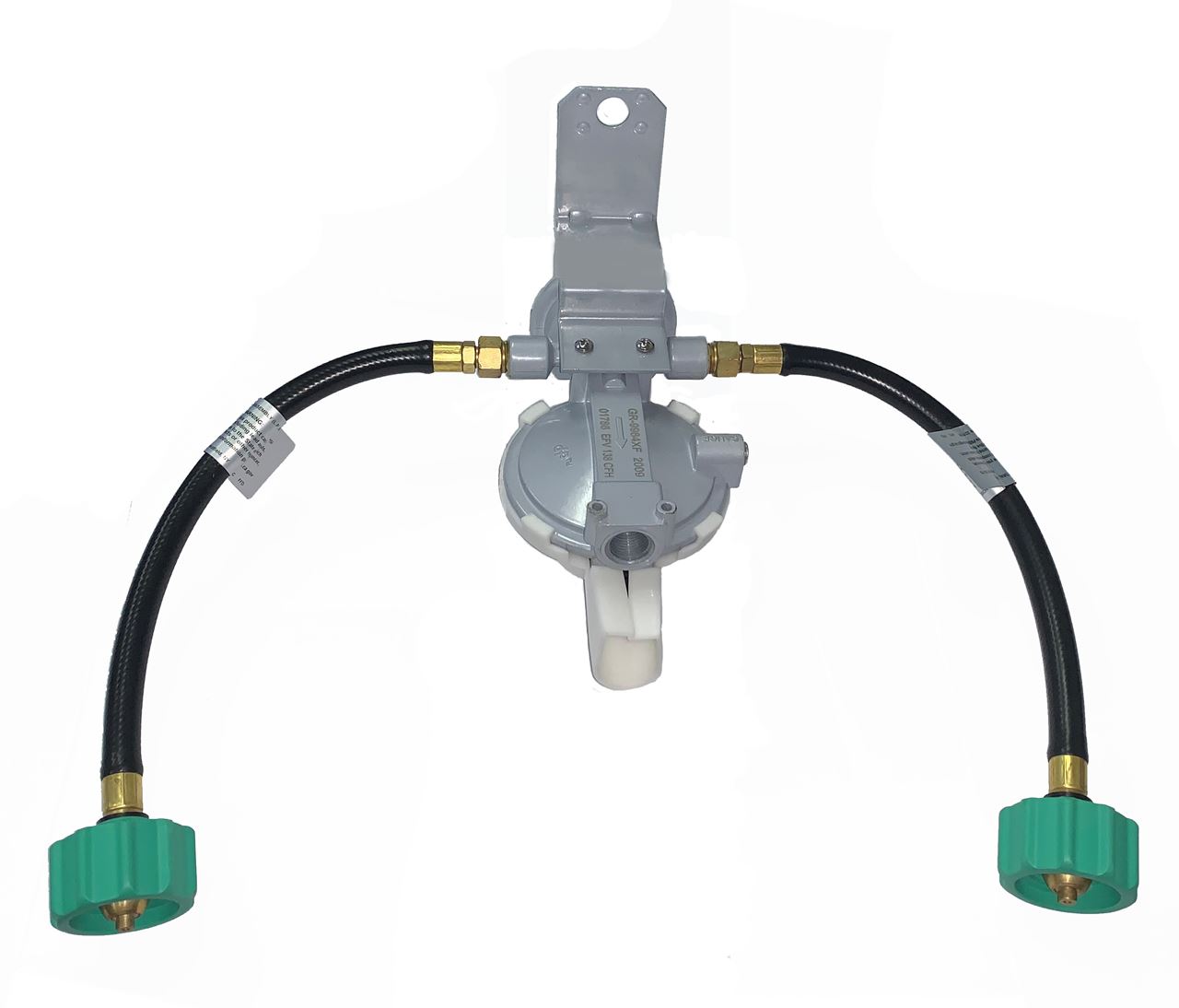

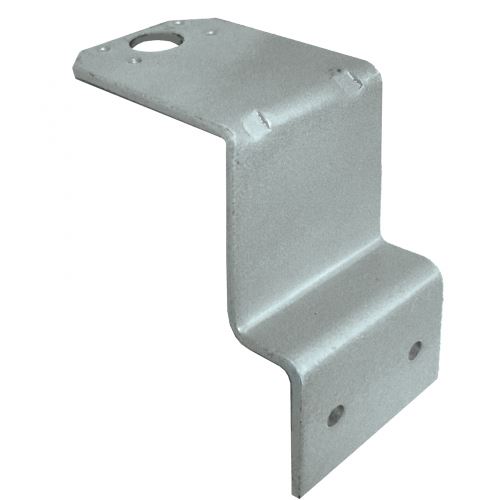

• (1) GAS-FLO® GR-RVB RV Style U Mounting Bracket
• (2) GAS-FLO® GR-SCREW Screw for Installing Brackets Onto Gas-Flo Propane Regulators

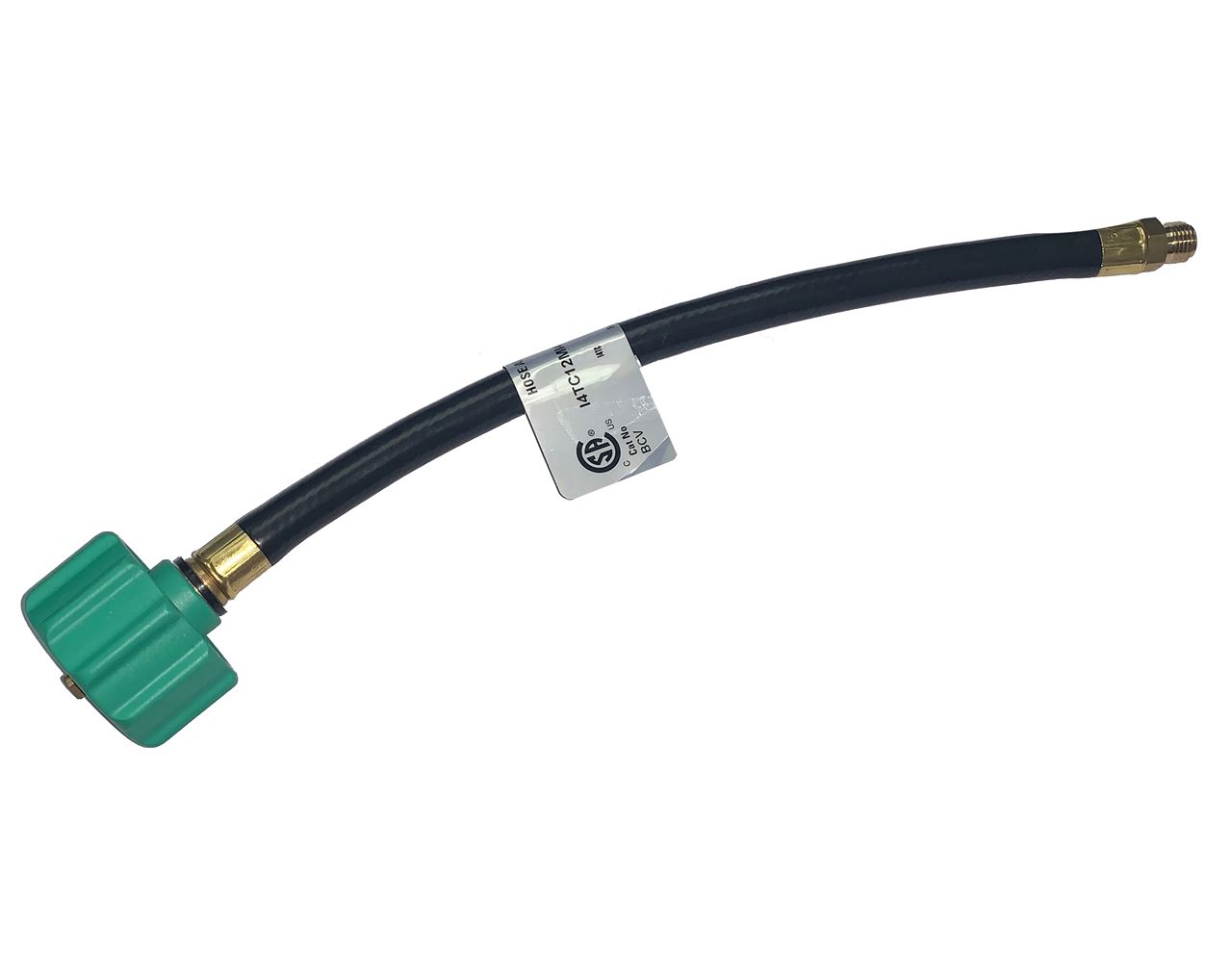

• (2) GAS-FLO® I4TC12MI4QC 1/4 ID 12" Type 1 Propane Hose Assy Thermoplastic 1/4 MI x QCC

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlets (2): High Capacity Green QCC1 ACME
• Outlet: 3/8 FPT
• Capacity BTU/Hr Propane (Service Cylinder): 345,000
• Capacity BTU/Hr Propane (Reserve Cylinder): 200,000
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 2.65 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
