Fairview GAS-FLO® UL Listed Green QCC1 Connection x 1/4 MPT 400,000 BTU

Fairview's U.L. Listed QCC1 Connections are color coded for BTU/HR ow rate identication

Fairview GAS-FLO® GR-9959 Low Pressure LP Gas Two Stage Regulator 1/4 FPT In x 3/8 FPT Out 9:00 Vent 225,000 BTU/HR. Fairview's GAS-FLO® Two Stage LP Gas Regulators are ideal for use on RV's and commercial size grill

Features:
• The X-SERIES* model GR-9950 and GR-9959 regulator combines both a high pressure first stage and a low pressure second stage regulator into a single unit
• Ideally designed for RV applications, these regulators ensure a smooth and continuous flow of gas to all appliances
• Excess Flow
• Zinc Die Cast
• Molded Rubber Diaphragms
• CSA Listed to U.L. 144
• 2nd Stage Relief Mechanism Per U.L. 144
• Adjusting Screw and Dust Cap Design
• Powder Coated

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlet: 1/4 FPT
• Outlet: 3/8 FPT
• Vent position: 9:00 / 90°
• Capacity BTU/Hr Propane: 225,000
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 1.25 lbs

Fairview GAS-FLO® TRAILTRAVEL-KIT2400G Custom 345,000 BTU 2 Stage Auto-Changeover LPG Regulator Kit With (2) 12" Pigtails and 3/8 FPT Outlet. This is an assembled 2 bottle regulator kit ready to mount

Features:
• The Fairview X-SERIES Compact Automatic Changeover Regulator redirects LP gas vapor flow from an empty designated service cylinder to a reserve cylinder, without interruption of service
• It features a green indicator dome which changes to red when the service cylinder needs to be refilled
• Highest Flow Available in Cold Temps!

Kit Includes:
• (1) GAS-FLO® GR-9984 2 Stage Automatic Changeover Regulator
• (1) GAS-FLO® GR-5984 Protective Cover for GR-9984
• (1) GAS-FLO® GR-RVB RV Style U Mounting Bracket
• (2) GAS-FLO® GR-SCREW Screw for Installing Brackets Onto Gas-Flo Propane Regulators
• (2) GAS-FLO® I4TC12MI4QC 1/4 ID 12" Type 1 Propane Hose Assy Thermoplastic 1/4 MI x QCC

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlets (2): High Capacity Green QCC1 ACME
• Outlet: 3/8 FPT
• Capacity BTU/Hr Propane (Service Cylinder): 345,000
• Capacity BTU/Hr Propane (Reserve Cylinder): 200,000
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 2.65 lbs

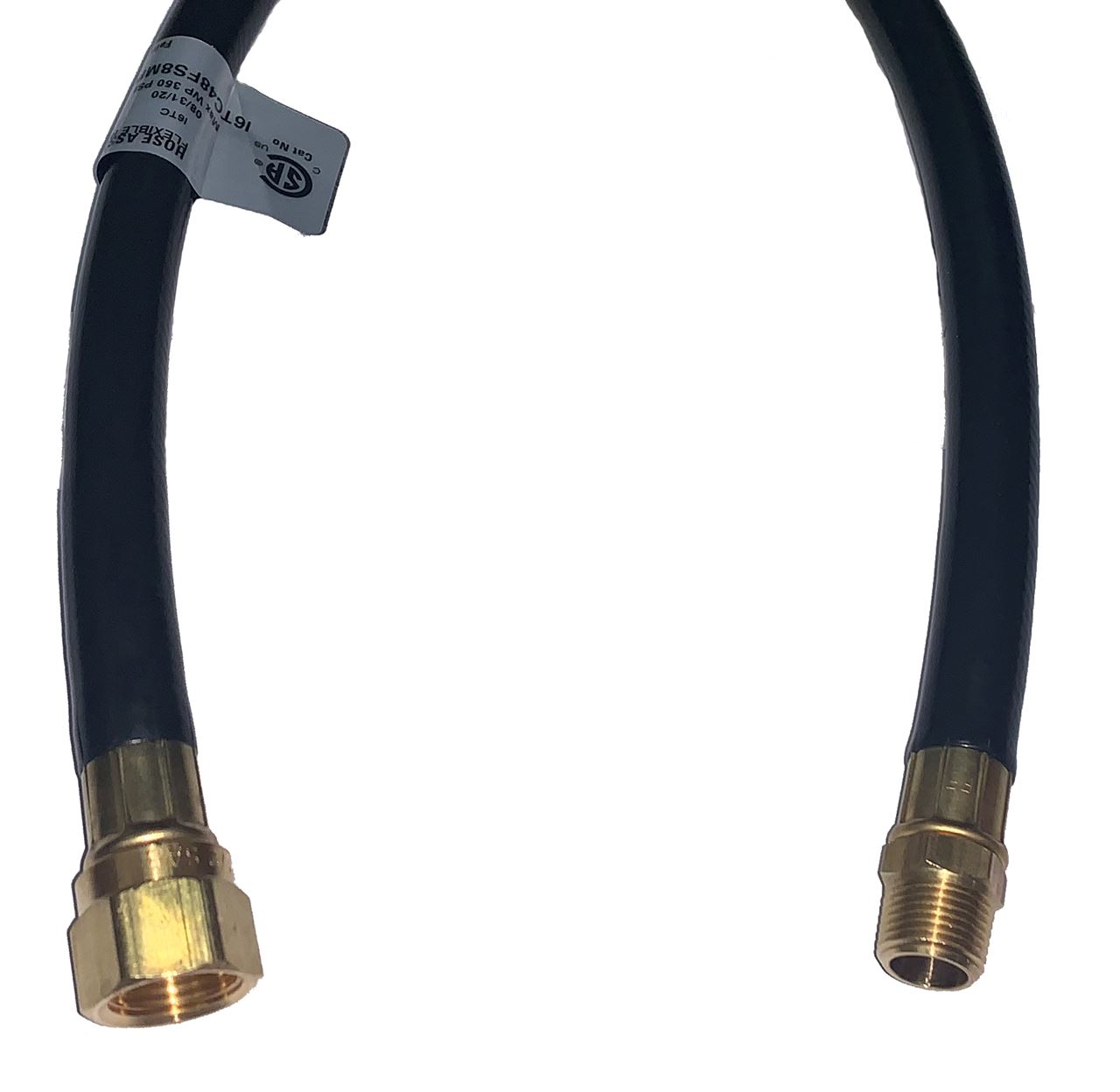

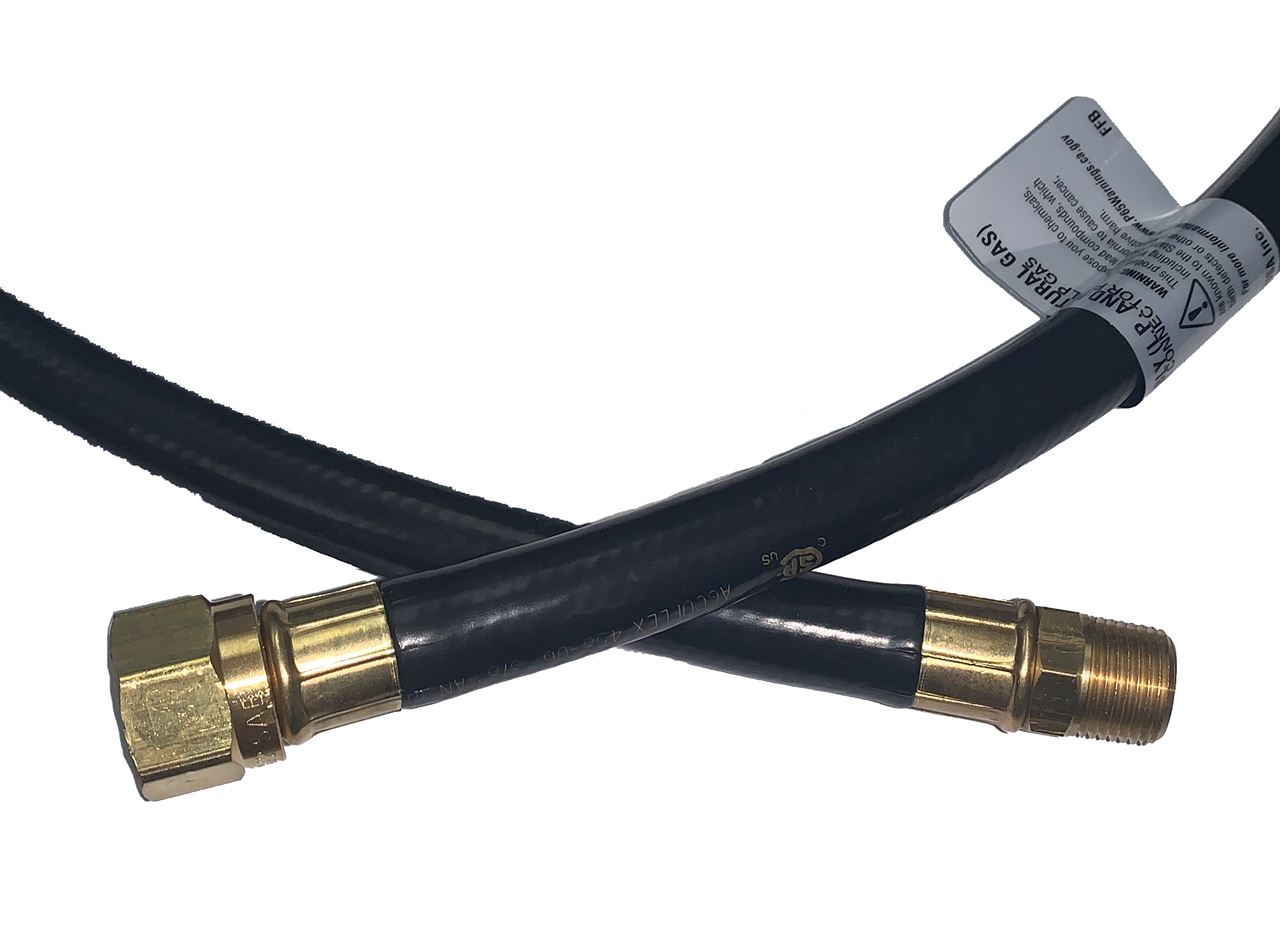

Fairview GAS-FLO™ 3/8” ID x 48” AOL Type 1 Thermoplastic Propane Hose Assembly with 3/8” 45° SAE Female Swivel Flare x 3/8” MPT Fittings. Fairview's Type 1 Thermoplastic F.SAE X MPT Assemblies are CSA Certified to 350 PSI WP -40°F To 140°F

Applications:
• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I
• UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)

TECHNICAL DATA SHEET

Specifications:
• Hose ID: 3/8”
• Assembly Overall Length: 48” (Tolerance ±1% of length measured to the nearest 1/8 of an inch)
• Temperature: -40°F to +140°F
• Color: Black
• Max Pressure: 350 PSI
• End: 3/8” Brass 45° SAE Female Swivel Flare
• End: 3/8” Brass MPT
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 0.65 lbs
