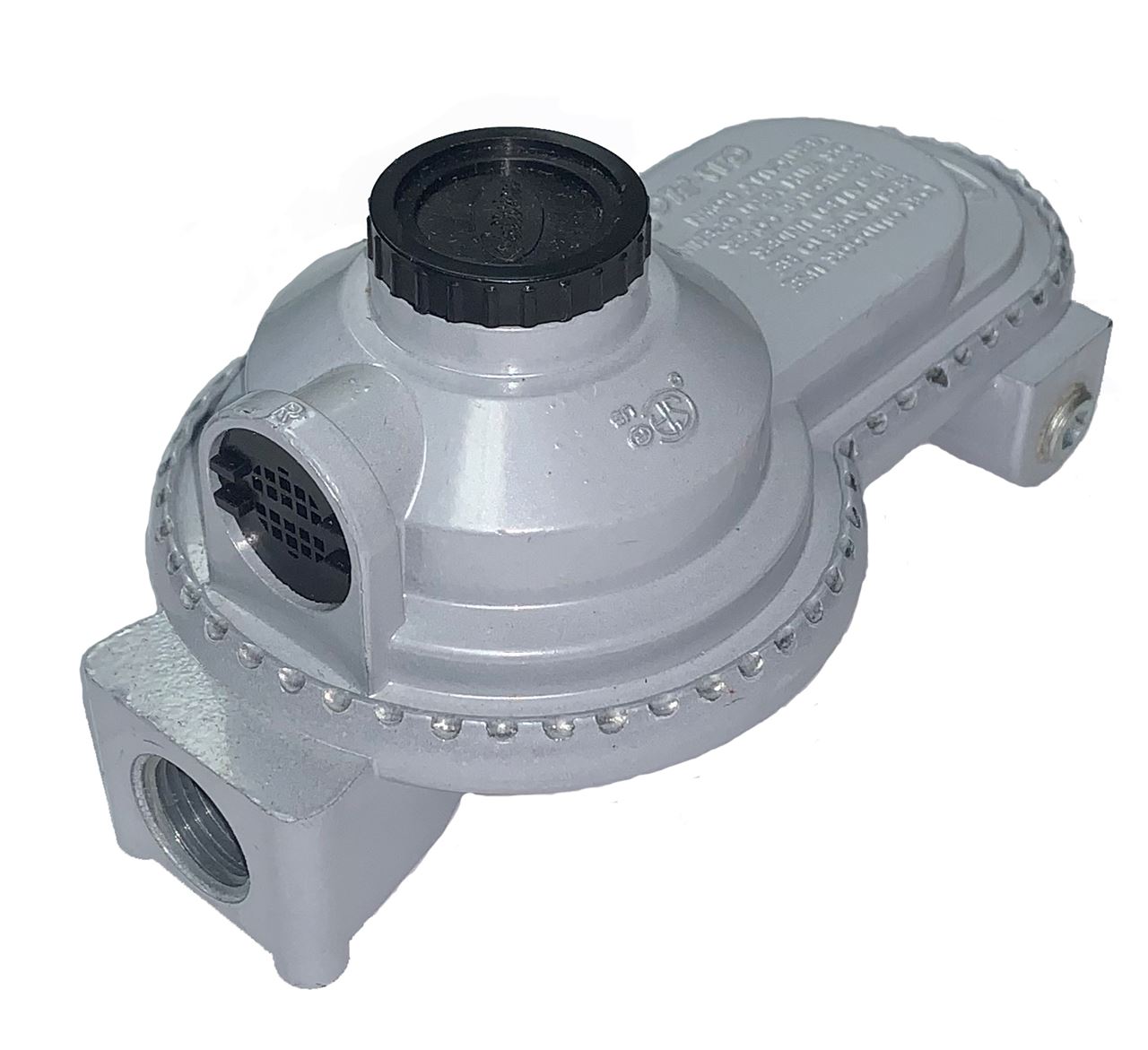

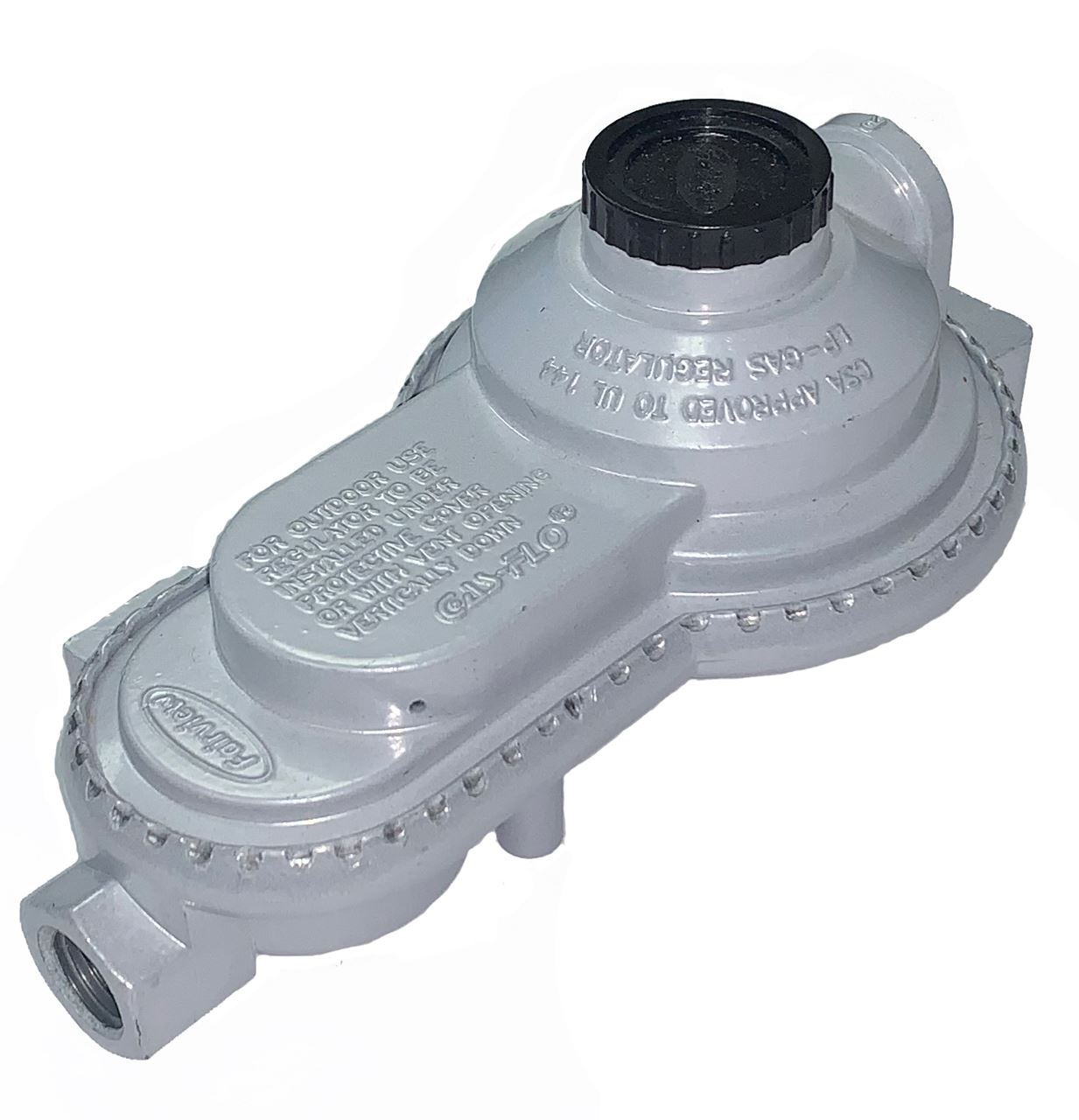

Fairview GAS-FLO® GR-9950 Low Pressure LP Gas Two Stage Regulator 1/4 FPT In x 3/8 FPT Out 225,000 BTU/HR. Fairview's GAS-FLO® Two Stage LP Gas Regulators are ideal for use on RV's and commercial size grill
Features:• The X-SERIES* model GR-9950 and GR-9959 regulator combines both a high pressure first stage and a low pressure second stage regulator into a single unit• Ideally designed for RV applications, these regulators ensure a smooth and continuous flow of gas to all appliances• Excess Flow• Zinc Die Cast• Molded Rubber Diaphragms• CSA Listed to U.L. 144• 2nd Stage Relief Mechanism Per U.L. 144• Adjusting Screw and Dust Cap Design• Powder Coated
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Inlet: 1/4 FPT• Outlet: 3/8 FPT • Vent position: Above Outlet• Capacity BTU/Hr Propane: 225,000• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 1.25 lbs
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview GAS-FLO™ 3/8” ID x 120” AOL Type 1 Thermoplastic Propane Hose Assembly with 3/8” 45° SAE Female Swivel Flare x 3/8” 45° SAE Female Swivel Flare Fittings. Fairview's Type 1 Thermoplastic F.SAE Assemblies are CSA Certified to 350 PSI WP -40°F To 140°F
Applications:• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I • UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)
Specifications:• Hose ID: 3/8”• Assembly Overall Length: 120” (Tolerance ±1% of length measured to the nearest 1/8 of an inch)• Temperature: -40°F to +140°F• Color: Black• Max Pressure: 350 PSI• End: 3/8” Brass 45° SAE Female Swivel Flare• End: 3/8” Brass 45° SAE Female Swivel Flare • TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 1.40 lbs
Fairview 50-6E 3/8 Tube OD x 3/4 Female Pipe Brass 90° Elbow. Fairview's Forged Brass 90° Female Pipe Elbow SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more
Specifications:• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared• Working Pressure: 1,000 PSI• Material: Forged brass• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Weight: 0.17 lbs
Fairview Screw for Installing Brackets Onto GAS-FLO® Propane Regulators
