Specifications:
• Compact Design - Shorter overall length
• Trip Temperature: 145º F.
• Brass body
• Inlet thread size: 1/2" MPT
• 1/4” Hose barb
• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing
• Weight: 1.5 oz

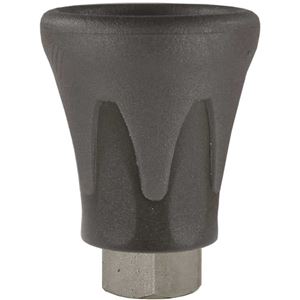

Suttner ST-10 Nozzle Protector 1/4" F Grey & Black

Features
• 2-Component nozzle protector ST-10
• The ST-10 is the ideal combination made out of hard and soft plastics
• The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture and food industry
• The ST-10 is unimpeachable, protects your nozzles and preserves the surfaces to be cleaned at the same time

Specifications
• Suitable for nozzles 1/4" M NPT
• Material: Plastic / Zinc-plated steel
• Color: Grey / black
• Max PSI: 5,800
• Max Temp: 300° F.
• Inlet:: 1/4" Female NPT
• Outlet: 1/4" Female NPT
• Note: 1/4” MPT Nozzle not included
• Weight: 0.10 lbs

General Pump D10118 2 Way Steel Unloader Mounting Block, 3/8" NPT-F x 3/8" NPT-F, Bolt-down

Features:
• Mounting blocks provide flexibility to mount additional accessories to your system

Specifications Sheet

Specifications:
• Max Pressure: 5,500 PSI
• Material: Steel, with YZD Finish

New Design Features:
• Interior Design – more efficient flow and operation
• Dual Locking Nuts – vibration resistant for setting maximum pressures
• New Spring Material – more resistant to fatigue, powder paint resists rusting
• Piston – large diameter, more strength and contact area for shifting alignment
• Discharge Nipple – sealing o-ring has been moved to the lower part of the thread, increases hydro strength and fitting strength
• Shutter Valve – hex design, less contact area for smooth shifting (prevents binding). larger size, longer life and more positive shifting

Featuring:
• Built-In easy start valve relieves back pressure during engine start up
• Over sized handle – easier adjustment
• Forged valve body – excellent strength
• Two inlet ports
• Two by-pass ports
• Ultra thick inlet and discharge ports - added strength
• Color coded springs and caps – easy valve identification
• All ports are FNPT

Specifications:
• Spring Color: Black:
• Replaces AL606EZ, AL606XEZ, AL607EZ & AL607XEZ
• Maximum Pressure: 4,495 PSI
• Max. Volume: 8.0 GPM
• Adjustable pressure
• Brass valve body
• Max. Fluid Temp.: 194° F.
• Inlet Port (1): 3/8" FNPT
• Discharge Port (1): 3/8” FNPT
• Bypass Ports (2): 3/8” FNPT
• Weight: 29.6 oz
