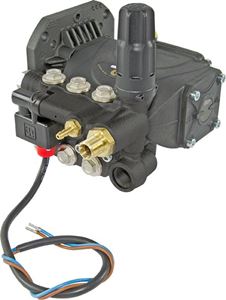

General ET1504E34UTSL 2,610 PSI 2.0 GPM (Left Handed) Direct Drive Pump with Total Start-Stop flanged to direct couple on electric NEMA 56 C motors Features:• Total start-stop feature allows flow to activate electric motor• Built-in unloader• Nickel-plated cast manifold manufactured like heavy-duty pump line• New generation seal package• New dust protection chamber• Solid ceramic plungers• New oversized plunger guide• New optimized inlet and outlet valves• New oil seal• Left side shaft, right side manifold
ET Series Spec Sheet
Specifications:• Max. Volume: 2.0 GPM• Max. Discharge Pressure: 2,610 PSI • Max. Horsepower Requirements: 3.6 EBHP• Max. Pump Speed: 3,400 RPM • Max. Fluid Temp.: 165º F• Oil Capacity: 8.5 oz • Inlet Port Thread: 1/2"-10 BSP-F• Discharge Port Thread: 3/8"-13 BSP-F• Shaft Diameter: 5/8” Hollow• Dimensions – Nominal: 8" x 7.4" x 4.7" • Weight: 11.0 lb
