General Pump PTP™ Series Pressure Washer Thermal Relief Valve with 1/2" Male Inlet. Protects the pump from damaging heat build-up while it is in bypass mode. The thermal relief valve, sensing a rise in temperature, opens and discharges a small amount of heated fluid. This allows cooler water to enter the system and cool the pump. When the gun is discharged the cooler water will cause the valve to close immediately.

Specifications:
• Compact Design - Shorter overall length
• Trip Temperature: 190º F.
• Brass body
• Inlet thread size: 1/2" MPT
• 1/4” Brass hose barb
• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing
• Weight: 1.5 oz

Propulse 6,000 PSI Grey “mark-less” 6' jumper hose. This grey jumper hose can be used as a bypass hose from unloader to pump, connector / whip hose from pump to heater coil, heater coil to outlet and for connecting pressure washer to a hose reel. Also is an ideal connector hose for carwash self service bays and pump room.

Features:
• Suitable for cold and hot water commercial pressure cleaning applications
• Reinforcement: Two layers of high tensile braided steel – R2 Rating
• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 6’
• Working (Maximum): Up to 6,000 PSI
• Burst (Minimum): 18,000 PSI
• Color: Grey, “mark-less”
• Maximum Temperature: 212° F.
• Ends: 3/8" MPT (1 solid & 1 swivel)
• Weight 2.15 lbs

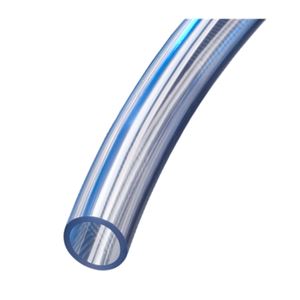

Kuri Tec® K050 Utility grade non-toxic clear food grade PVC tubing for general use applications

Features:
• FDA compliant, non-toxic PVC compound
• High gloss crystal clear appearance with glass smooth interior to reduce sediment buildup
• Self-extinguishing
• Compound hardness 73±3 Shore "A"


Applications:
• Air conditioning Drainage
• Refrigeration Drainage
• Airlines
• Printing press Equipment
• High efficiency furnace drainage
• Transfer of weak chemicals and acids


Specifications:
• Service Temp. Range: +25º F to 150º F
• Nominal ID: 5/8”
• Nominal OD: 13/16"
• Wall Thickness: 3/32”
• Color: Clear
• Working Pressure @ 70º F: 35 PSI
• Length: 100’
• Weight: 11.6 lb.



ProPulse™ Blue Smooth Rubber “Mark-Less” 3/8" x 12' Boom Hose Assembly 4,000 PSI with 3/8" MPT Fittings. Perfect for self service car wash bays. Smooth blue and less marking cover with a seamless heat and chemical resistant tube

Features:
• Assembled in USA with high quality components
• Suitable for self service car wash applications
• Rubber construction throughout
• Reinforcement: One layer of high tensile braided steel – R1 Rating
• Cover: Smooth, “Mark-Less” with printed lay line
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 12’
• Working (Maximum): Up to 4,000 PSI
• Burst (Minimum): 12,000 PSI
• Color: Blue
• Maximum Temperature: 250° F.
• Ends: 3/8" MPT (solid)
• Black bend restrictor on one end
• Weight 2.55 lbs
