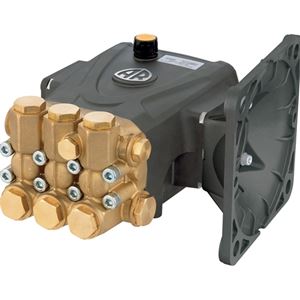

Picture of 3000PSI, 3.5GPM Annovi Reverberi Direct Drive Pump

3000PSI, 3.5GPM Annovi Reverberi Direct Drive Pump

SKU: RRA3.5G30E-F17

Brand: Annovi Reverberi - AR North America

Only $312.50

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Annovi Reverberi / AR North America RRA E Version with F17 flange series pumps are designed to direct drive on electric NEMA 182 - 184 frame motors ranging from 6.2 – 11.3 EBHP. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RRA is a result of our combined 60 years of pumps building experience and expertise


Features:
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft


Specifications:
• Max. Volume: 3.5 GPM
• Max. Discharge Pressure: 3,000 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 1-1/8” Hollow
• Max. Horsepower Requirements: 7.2 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 13.35 oz
• Weight: 18.0 lb.
