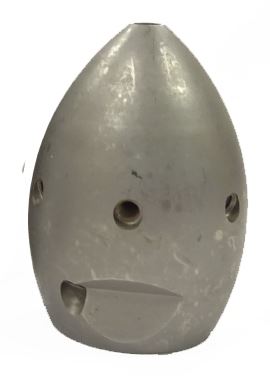

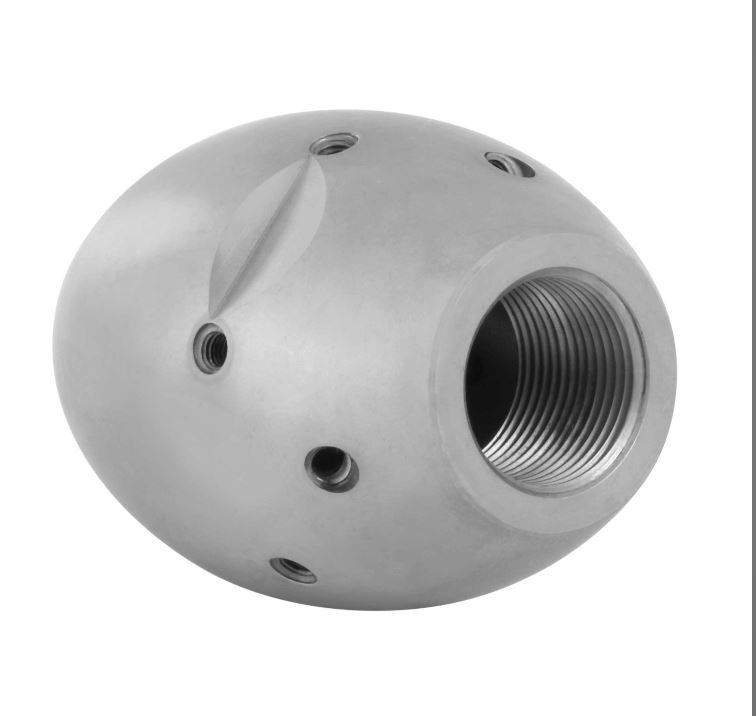

1/2” Suttner # 12.0 Warhead / Egg Radial Sewer Cleaning Nozzle. With 1 Front, 6 Side and 3 Rear jets and rated to 7,250 PSI. The ideal tool for the toughest applications of hard grease and scale that may be encrusted on the interior wall of the pipe
Features:• High Quality, German engineered components• Best performing and most durable design for higher efficiency• These are light and agile used as a great all around nozzle with replaceable inserts. They include a forward jet• The egg-type radial nozzle is wear resistant and cost competitive• Great for sanitary applications• With unrivaled cleaning power on heavy encrusted grease and sludge• Hardened stainless steel body and replaceable nozzle inserts for longer life
Specifications:• Nozzle Size: # 12.0• Jets: 1 at 0°• Jets: 6 at 75°• Jets: 3 at 30°• Material: Stainless steel• Maximum Pressure: 7,250 PSI• Inlet: 1/2” Female• Outside Diameter (O.D.): 1.58”• Length: 2.76”• Weight: 22.22 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump DHR50150 3/8" x 150' Industrial Hose Reel with Mounting Base. Rated 5,000 PSI and up to 185° F. Heavy duty steel frame structure is ideal for pressure washer and sewer jetter use. Quickly and easily mounts to most vertical and horizontal surfacesFEATURES • Direct hand-crank rewind• Includes drum locking pin• Solid steel construction• Durable black powder coated finish • 5,000 PSI rated swivel with nickel plated hose mounting arm• Hardware provided for mounting to cart handle or bumper
Specifications Sheet
SPECIFICATIONS• Capacity: 150’ of 3/8” pressure washer/sewer jetter hose• Max. PSI: 5,000• Max Temp: 185° F.• Color: Black• Inlet: 3/8 NPT-M• Outlet: 3/8 NPT-F• Carton Dimensions: 15.75” x 18.5” x 16.5”• Replaces DHR50150D• Weight 21.05 lbs
3/8” Suttner # 5.5 ST-49 Laser Sewer Nozzle 1 Front 3 Rear 4,200 PSI.
Features• High Quality, German engineered components• 1 Front jet for penetrating of completely clogged pipes and frozen pipelines • 3 Rear jets (30°) for maximum thrust and simultaneously, a flushing away of the waste material• Stainless steel• Works best on 4" to 8" Pipes
Specifications • Nozzle Size: # 5.5• Material: Stainless steel• Maximum Pressure: 4,200 PSI• Inlet: 3/8” Female• Outside Diameter (O.D.): .92”• Weight: 1.30 oz
1/2” Suttner #12.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 6 Rear jets and rated to 5,076 PSI
Features:• High Quality, German engineered components• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage• The sharp edges cut, break and penetrate through every kind of blockage• Made out of wear-resistant, hardened stainless steel• 1 Centric front jet with nozzle insert• 3 Lateral front jets with nozzle inserts• 6 Rear jets with nozzle inserts• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer
Applications:• Penetration of completely clogged pipes• Opening of root masses• Opening of frozen pipelines• Hydraulic thrust boring flushing operations
Specifications:• Nozzle Size: # 12.0• Material: Stainless steel• Maximum Pressure: 5,076 PSI• Inlet: 1/2” Female• Outside Diameter (O.D.): 1.23”• Weight: 5.7 oz
