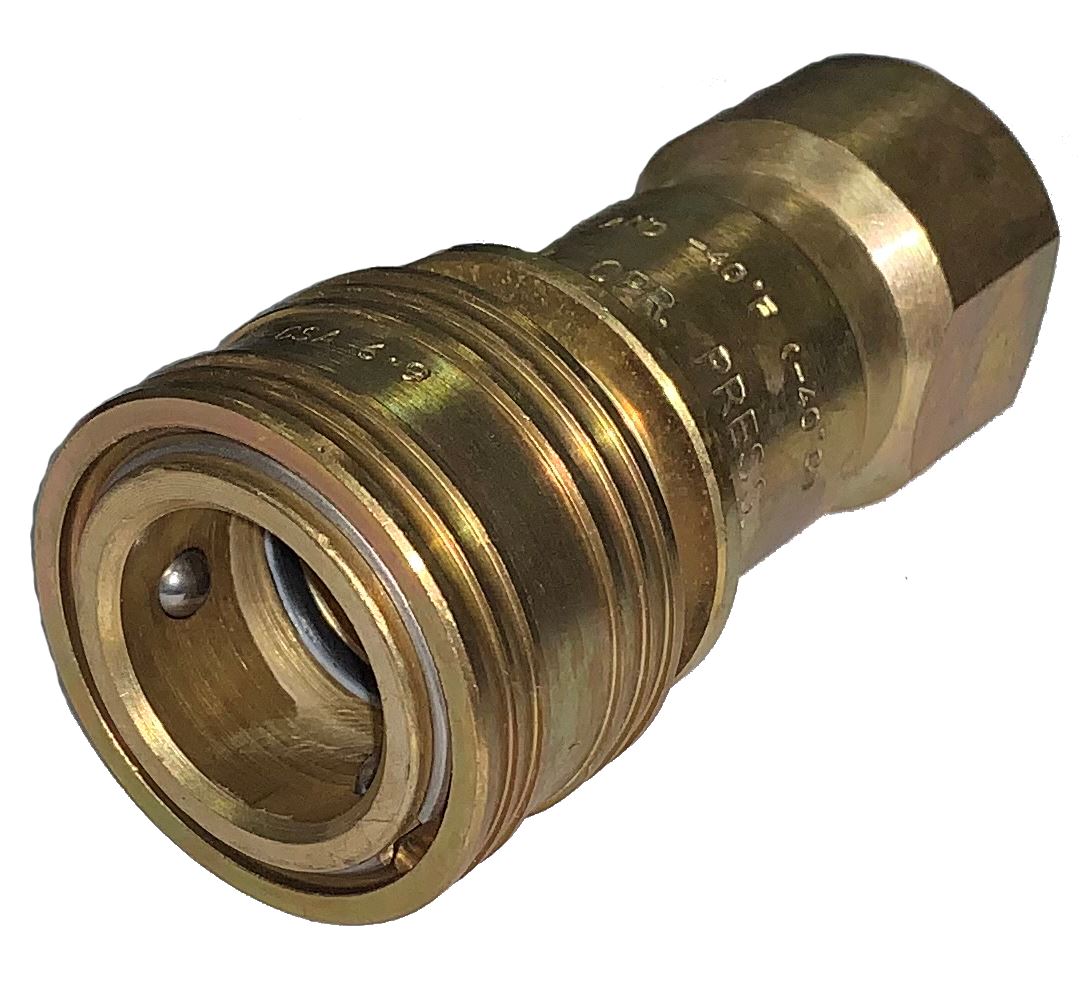

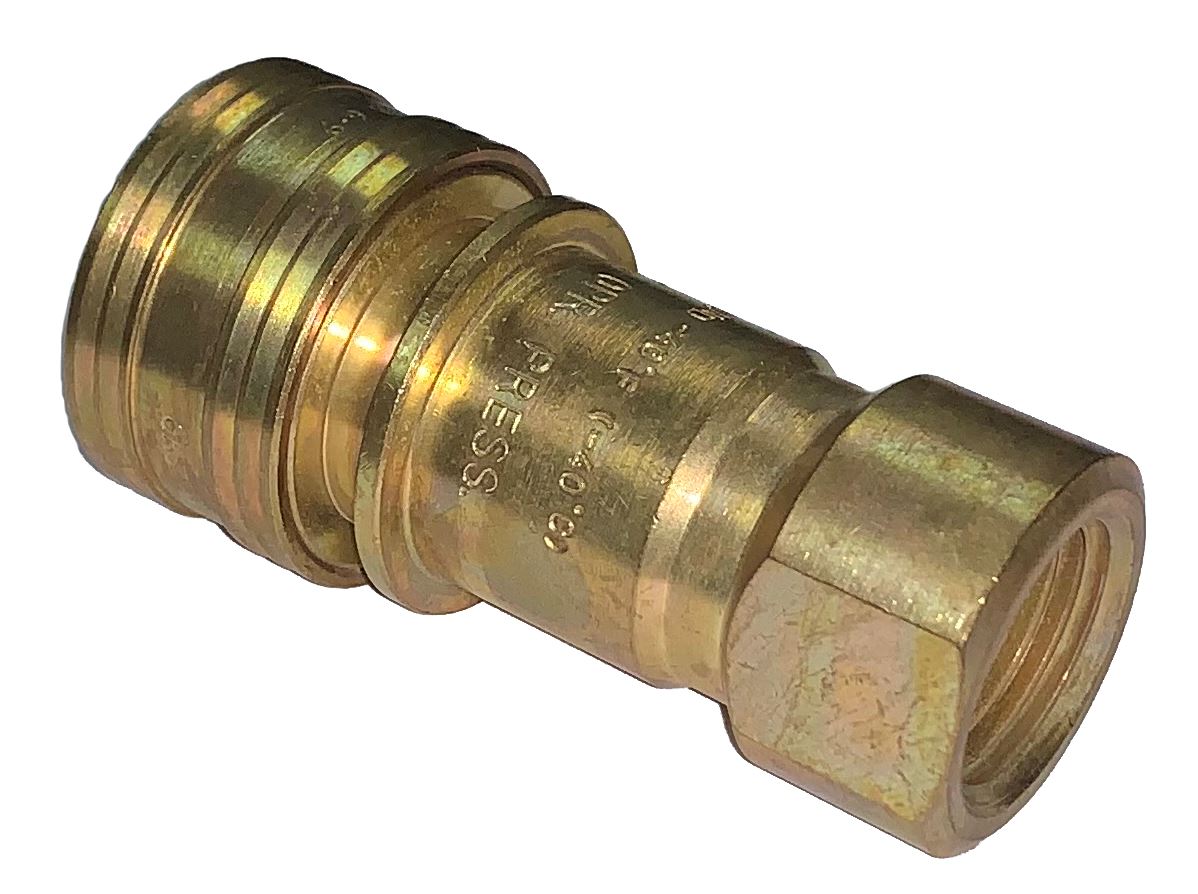

Fairview QD-GMC8-8F GAS-FLO™ 1/2” Coupler x 1/2” FPT LPG/Nat. Gas Quick Disconnect. Fairview's CSA LPG/Nat. Gas Couplers are CSA Certified up to 60 PSI WP
Features:• C.S.A. GAS INTERCHANGE QUICK DISCONNECTS (QD-GMC)• CSA certified to Z21.41/CSA6.9 for Natural Gas and LP-Gas – air mixtures• All QD-GMC Quick Disconnects Rated To 60 P.S.I.• QD-GMC Sizes 1/4, 3/8, 1/2 & 3/4 Quick Disconnects Are Rated To A Temperature -40°F
TECHNICAL DATA SHEET
INSTALLATION INSTRUCTIONS
Specifications:• Coupler (Body Size): 1/2• Female Pipe Thread: 1/2• Quick Disconnect BTU Capacity: 120,000• Material: Brass• Weight: 7.4 oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview QD-GMN8-8F GAS-FLO™ 1/2” Nipple x 1/2” FPT LPG/Nat. Gas Quick Disconnect. Fairview's CSA LPG/Nat. Gas Nipples are CSA Certified up to 60 PSI WP
Features:• C.S.A. GAS INTERCHANGE QUICK DISCONNECTS (QD-GMC)• CSA certified to Z21.41/CSA6.9 for Natural Gas and LP-Gas – air mixtures• QD-GMC Quick Disconnects Rated To 60 P.S.I.• QD-GMC Sizes 1/4, 3/8, 1/2 & 3/4 Quick Disconnects Are Rated To A Temperature -40°F
Specifications:• Nipple (Body Size): 1/2• Female Pipe Thread: 1/2• Quick Disconnect BTU Capacity: 120,000• Material: Brass• Weight: 2.8 oz
Fairview QD-GMRVN4-4M GAS-FLO™ 1/4” Nipple x 1/4” MPT CSA RV Gas Quick Disconnect. Fairview's Recreational Vehicle Gas QDs are CSA Certied up to 60 PSI WP
Features:• C.S.A. (C.G.A. / A.G.A.) design certified for natural gas and L.P. gas - air mixtures• Full flow plug for quick connect and disconnect of R.V. style coupler
Specifications:• Nipple (Body Size): 1/4• Male Pipe Thread: 1/4• Material: Brass• Weight: 1.0 oz
Fairview GAS-FLO™ BV5221-C 3/8" FPT Forged Full Port Brass Ball Valve 600 WOG. Fairview's Brass Female Pipe Gas Cocks are CSA certified to 5 P.S.I. (-40°) from the appliance to the meter
INSTALLATION DATA SHEET
Features:• For Indoor/Outdoor applications. C.S.A. Certified forged brass ball valves for Natural and Propane Gas (vapor)• Brass valves for use in W.O.G. = Water, Oil and Gas • Full Port• Blowout-Proof Stem• PTFE Seats• CSA certified to 5 P.S.I.
Specifications:• W.O.G: 600• Pipe Size: 3/8” FPT• Connection Type: Female to Female• Materials: Aluminum, Brass, NBR, PTFE, Steel• Operating temperature: -40°F to +125°F (-40°C to +52°C)• Weight: 0.22 lbs
Fairview QD-GMN6-6F GAS-FLO™ 3/8” Nipple x 3/8” FPT LPG/Nat. Gas Quick Disconnect. Fairview's CSA LPG/Nat. Gas Nipples are CSA Certified up to 60 PSI WP
Specifications:• Nipple (Body Size): 3/8• Female Pipe Thread: 3/8• Quick Disconnect BTU Capacity: 85,000• Material: Brass• Weight: 1.4 oz
