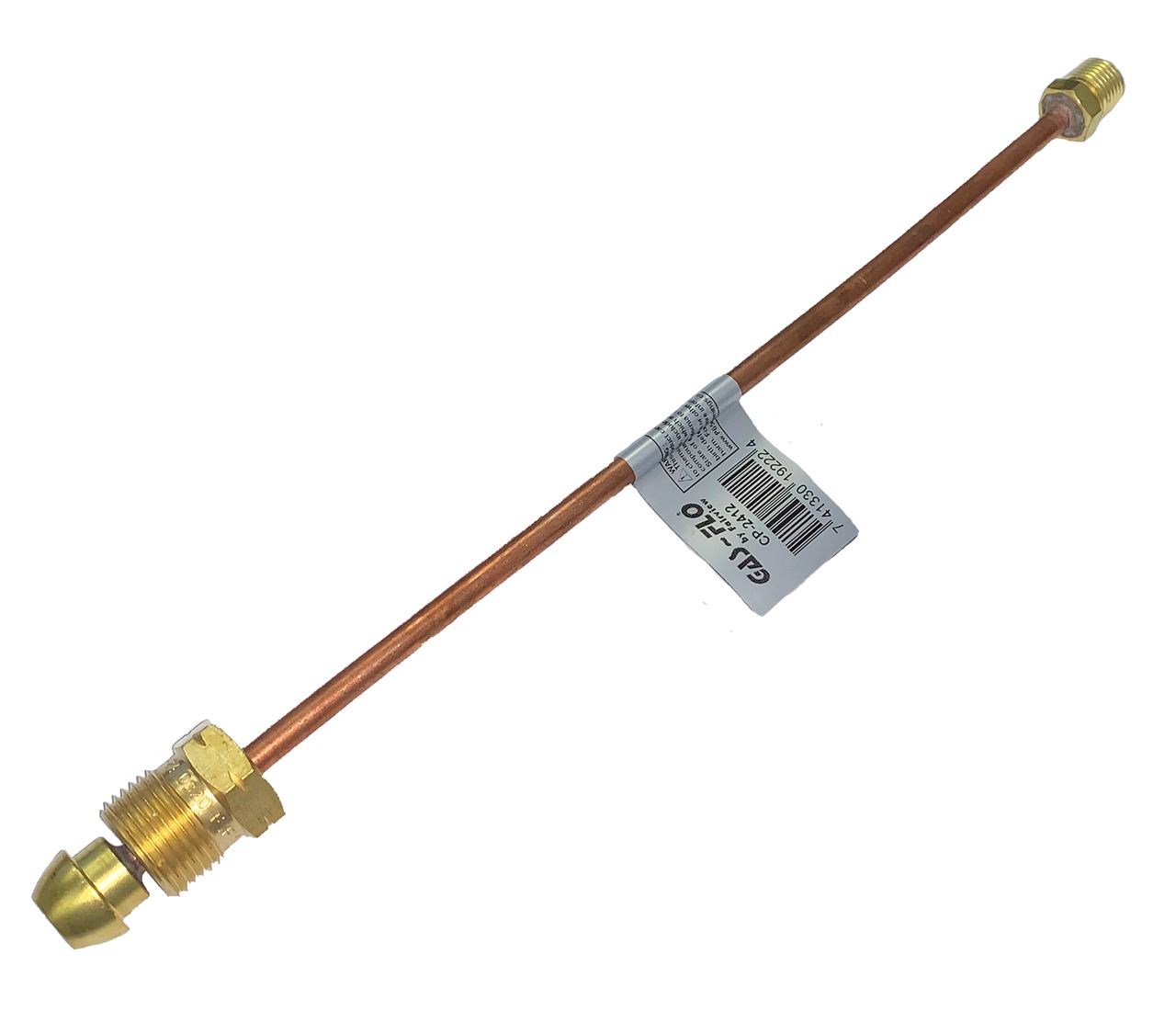

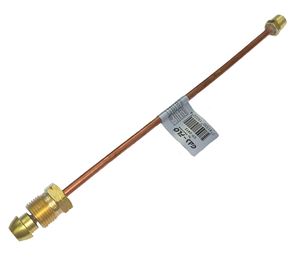

Fairview GAS-FLO™ CP-2412 1/4” OD x 12” Short Nose POL x 1/4 MPT Copper Propane Gas Pigtail. Fairview's Short POL To 1/4 MPT Copper pigtails are ideal for use with Propane Gas
Applications:• Propane gas copper pigtails and hogtails provide a flexible connection between the container valve and the regulator• Solder connections Copper tube for PIGTAILS is 1/4" O.D. by .049 WALL• Usage depends on application and requirements• With soldered ends and a wide selection of connections and lengths
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET

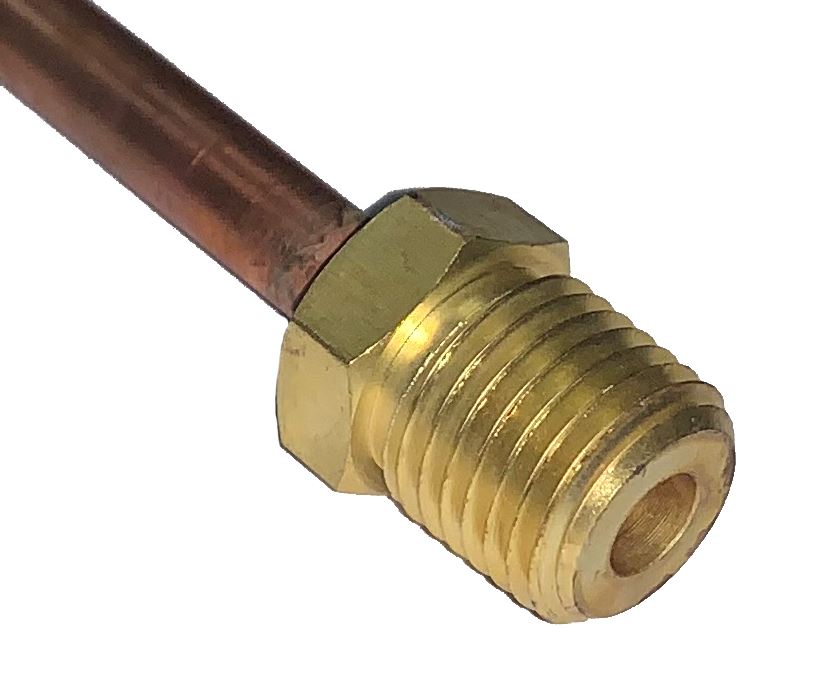

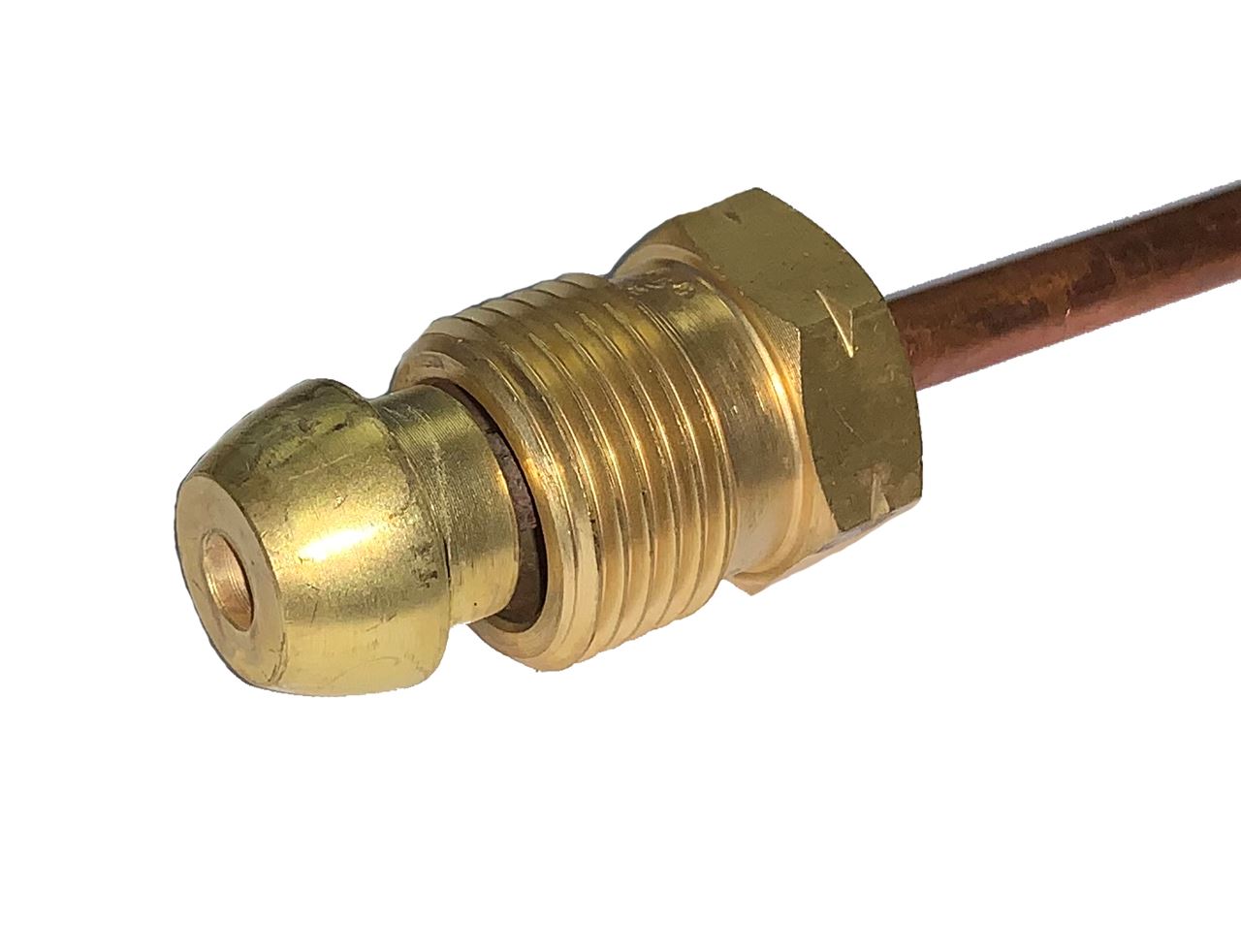

Specifications:• Tube OD: 1/4”• Approx. Length: 12”• Tube Material: Copper• End: Short Nose P.O.L• End: 1/4 MPT• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 0.30 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
