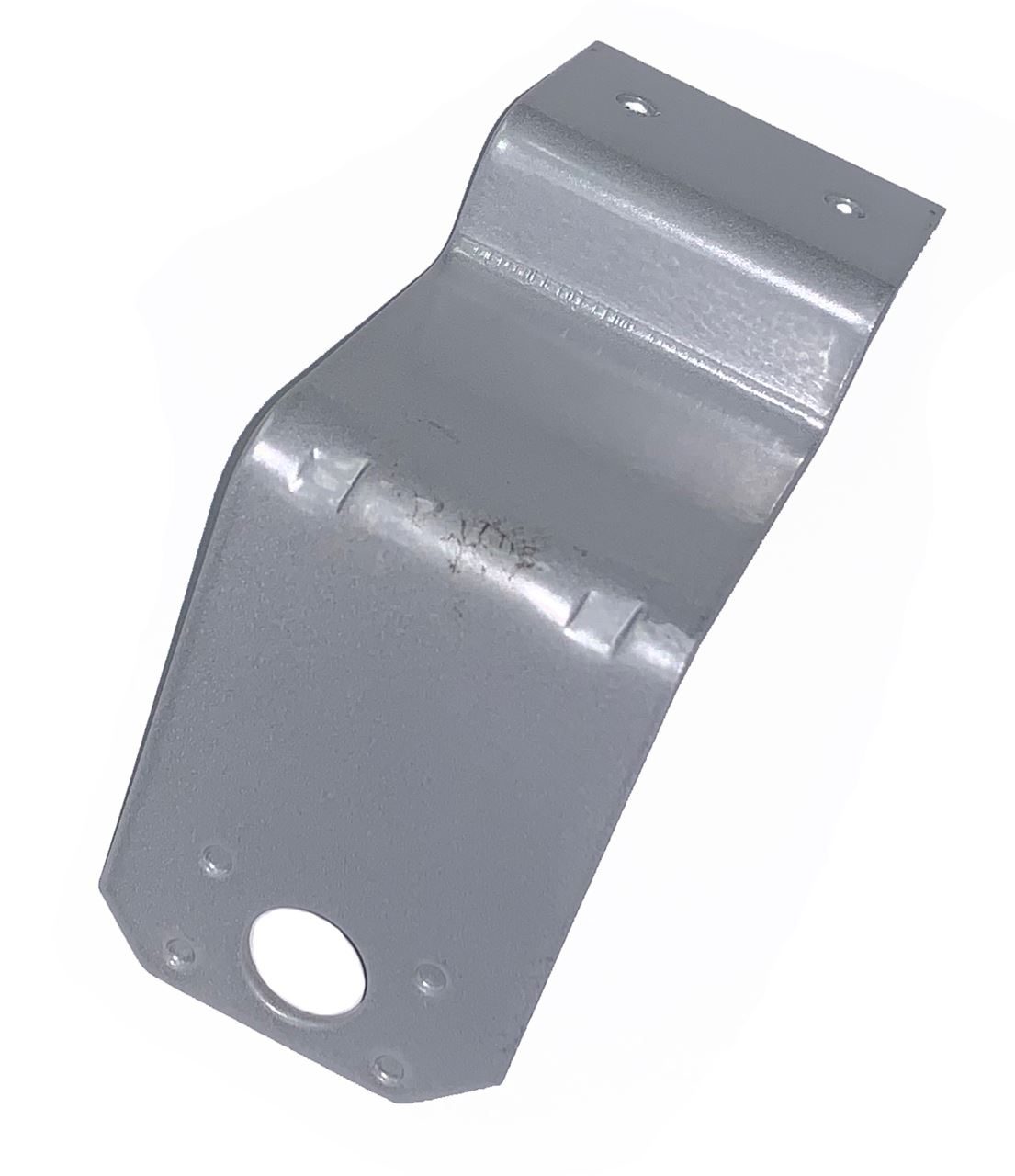

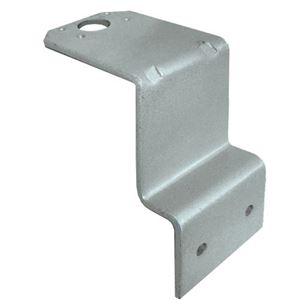

Fairview GAS-FLO® RV Style U Mounting Bracket
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview Screw for Installing Brackets Onto GAS-FLO® Propane Regulators
Fairview GAS-FLO® GR-9994 Compact Low Pressure LP Gas Two Stage Automatic Changeover Regulator 1/4 F. Inv. Flare In (2) x 3/8 FPT Out. Fairview's GAS-FLO® LP-Gas Two Stage Automatic Changeover is used by Recreational Vehicle (RV) Manufacturers across North America
Features:• The Fairview X-SERIES Compact Automatic Changeover Regulator redirects LP gas vapor flow from an empty designated service cylinder to a reserve cylinder, without interruption of service• It features a green indicator dome which changes to red when the service cylinder needs to be refilled• Excess Flow• Zinc Die Cast• Molded Rubber Diaphragms• CSA Listed to U.L. 144• 2nd Stage Relief Mechanism Per U.L. 144 • Powder Coated
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Inlets (2): 1/4 Female Inverted Flare• Outlet: 3/8 FPT• Capacity BTU/Hr Propane (Service Cylinder): 262,500• Capacity BTU/Hr Propane (Reserve Cylinder): 210,000• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 1.45 lbs
Fairview GAS-FLO™ 1/4” ID x 12” AOL Type 1 Thermoplastic Propane Hose Assembly with 1/4” Male Inverted Flare x QCC Fittings. Fairview's Type 1 Thermoplastic QCC Pigtails are CSA Certified to 350 PSI WP -40°F To 140°F
Applications:• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I • UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)
Specifications:• Hose ID: 1/4”• Assembly Overall Length: 12” (Tolerance ± 1/4 of an inch)• Temperature: -40°F to +140°F• Color: Black• Max Pressure: 350 PSI• End: 1/4” Brass Male Inverted Flare• End: QCC1 ACME• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 0.30 lbs
