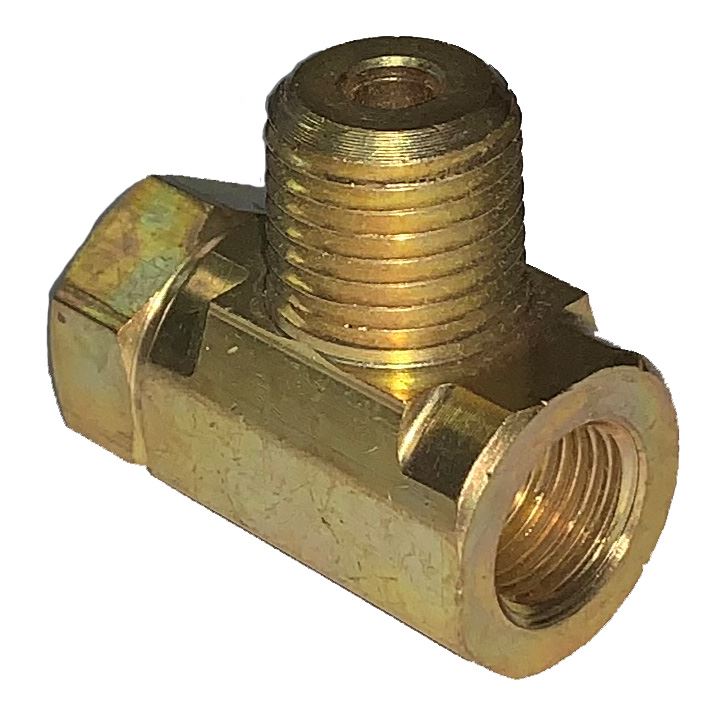

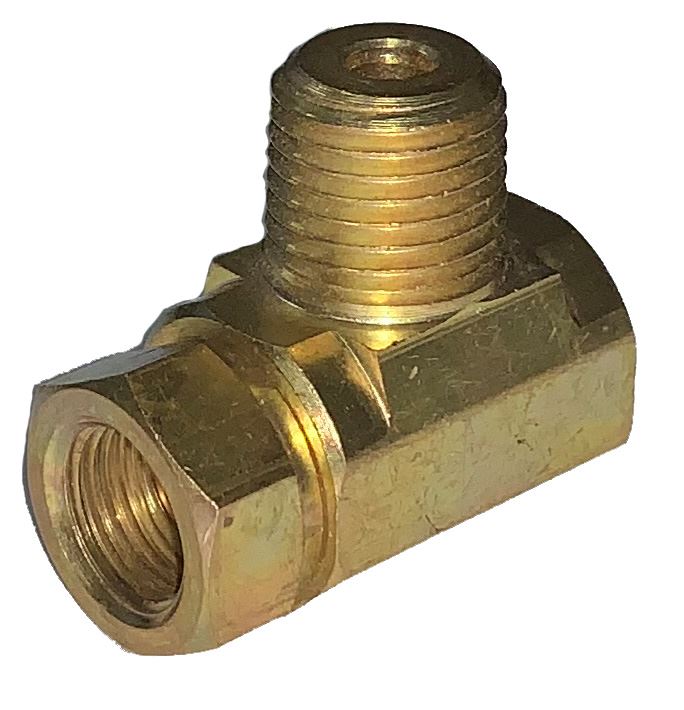

Fairview GAS-FLO™ 2000 Dual Tank Manifold Tee 1/4 Inv Flare Inlets x 1/4 MPT Outlet. Fairview's Dual Tank Manifold Tee is ideal for adding a secondary Propane tank to a gas system
Specifications: • Inlets (2): 1/4 Inverted Flare• Outlet: 1/4 MPT• Material: Brass• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 2.2 oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview GAS-FLO™ 1/4” ID x 15” AOL Type 1 Thermoplastic Propane Hose Assembly with 1/4” Male Inverted Flare x QCC Fittings. Fairview's Type 1 Thermoplastic QCC Pigtails are CSA Certified to 350 PSI WP -40°F To 140°F
Applications:• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I • UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)
TECHNICAL DATA SHEET
INSTALLATION INSTRUCTIONS
Specifications:• Hose ID: 1/4”• Assembly Overall Length: 15” (Tolerance ± 1/4 of an inch)• Temperature: -40°F to +140°F• Color: Black• Max Pressure: 350 PSI• End: 1/4” Brass Male Inverted Flare• End: QCC1 ACME• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 0.30 lbs
Fairview 48-6C 3/8 Tube OD x 3/8 Male Pipe Brass Connector. Fairview's Forged Brass Male Pipe Connector SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more
INSTALLATION DATA SHEET
Specifications:• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared• Working Pressure: 1,000 PSI• Material: Forged brass• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Weight: 0.07 lbs
Fairview 46-6B 3/8 Tube OD x 1/4 Female Pipe Brass Connector. Fairview's Forged Brass Female Pipe Connector SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more
Specifications:• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared• Working Pressure: 1,000 PSI• Material: Forged brass• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Weight: 0.06 lbs
Fairview 42-6 3/8 Tube OD x 3/8 Tube OD Brass Union Coupling. Fairview's Forged Brass Union Coupling Male Flare to Male Flare SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more
Specifications:• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared• Working Pressure: 1,000 PSI• Material: Forged brass• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Weight: 0.08 lbs
