Fairview 726-8D 1/2 Hose ID x 1/2 Female Pipe Brass Grip-Tite Fitting. Grip-Tite Push-On style brass hose barbs are recommended for general purpose air, fuel, lube, Oil Lines, water and other low pressure applications. CA360 brass

Specifications:
• Working Pressure: 300 PSI
• Working Temperature: -40°F to +220°F, -40°C to +104°C
• When used with Grip-Tite or similar push-on hose, no clamps are needed
• Weight: 0.14 lbs

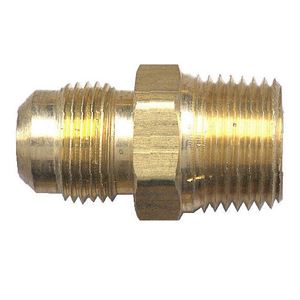

Fairview 48-8D 1/2 Tube OD x 1/2 Male Pipe Brass Connector. Fairview's Forged Brass Male Pipe Connector SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared
• Working Pressure: 750 PSI
• Material: Forged brass
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Weight: 0.11 lbs

Fairview GAS-FLO™ 1/4” ID x 12” AOL Type 1 Thermoplastic Propane Hose Assembly with 1/4” Male Inverted Flare x QCC Fittings. Fairview's Type 1 Thermoplastic QCC Pigtails are CSA Certified to 350 PSI WP -40°F To 140°F

Applications:
• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I
• UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)

TECHNICAL DATA SHEET

INSTALLATION INSTRUCTIONS

Specifications:
• Hose ID: 1/4”
• Assembly Overall Length: 12” (Tolerance ± 1/4 of an inch)
• Temperature: -40°F to +140°F
• Color: Black
• Max Pressure: 350 PSI
• End: 1/4” Brass Male Inverted Flare
• End: QCC1 ACME
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 0.30 lbs

Fairview Screw for Installing Brackets Onto GAS-FLO® Propane Regulators
