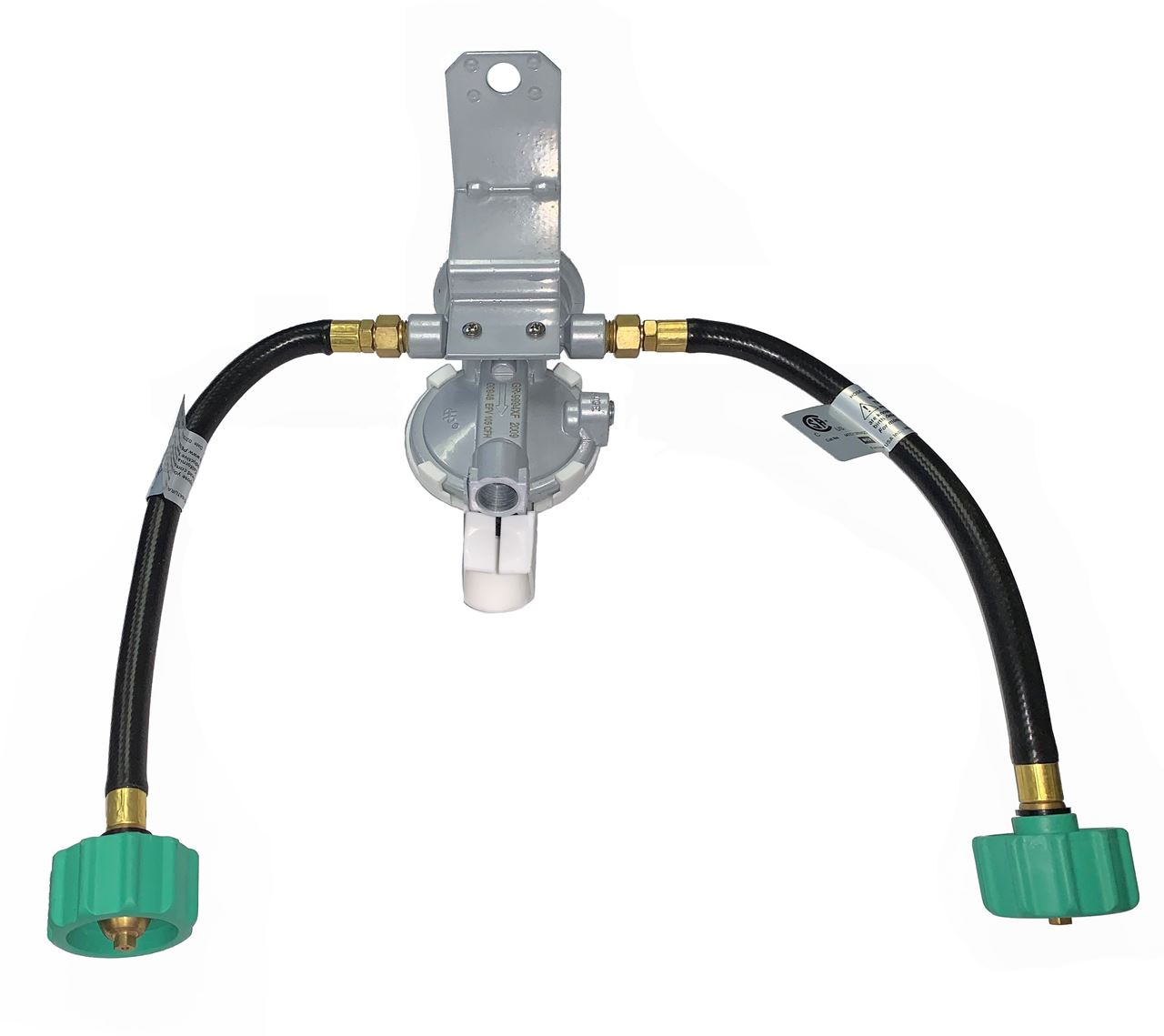

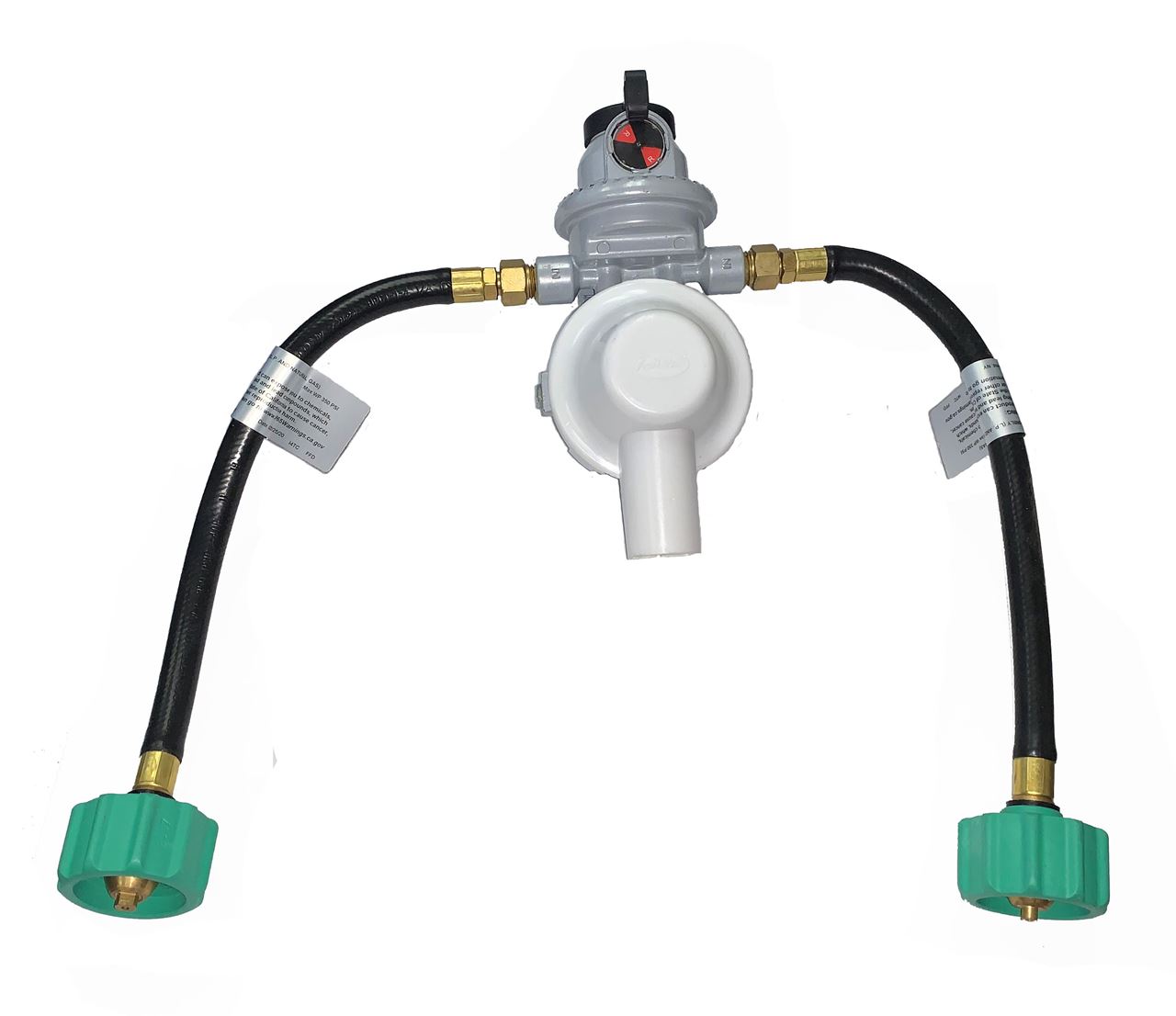

Fairview GAS-FLO® FF-KIT117 Custom 262,500 BTU 2 Stage Auto-Changeover LPG Regulator Kit With (2) 12" Pigtails and 1/2 Male SAE 45° Flare Fitting Outlet. This is an assembled 2 bottle regulator kit ready to mount

Features:
• The Fairview X-SERIES Compact Automatic Changeover Regulator redirects LP gas vapor flow from an empty designated service cylinder to a reserve cylinder, without interruption of service
• It features a green indicator dome which changes to red when the service cylinder needs to be refilled

Kit Includes:

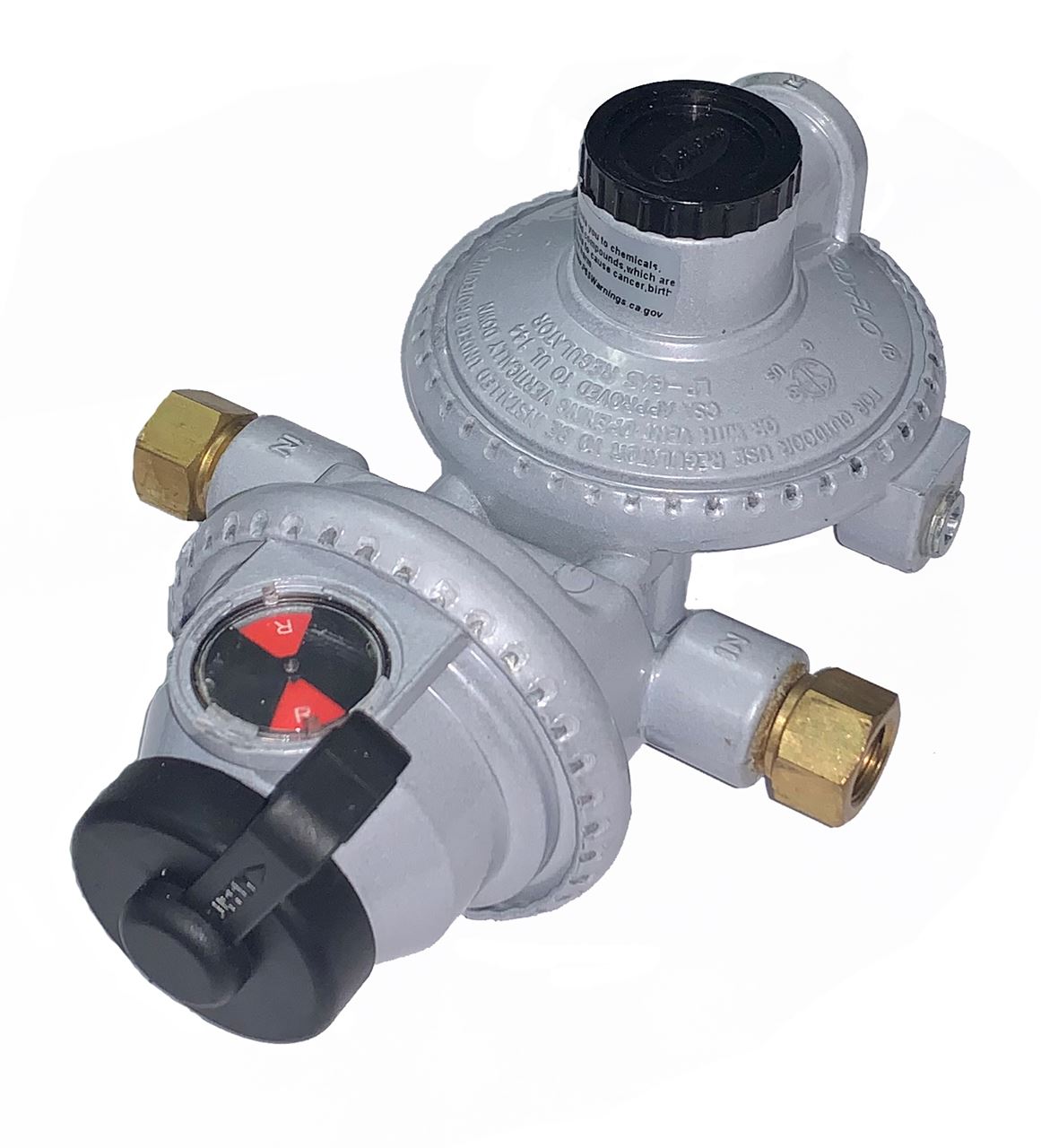

• (1) GAS-FLO® GR-9994 2 Stage Automatic Changeover Regulator

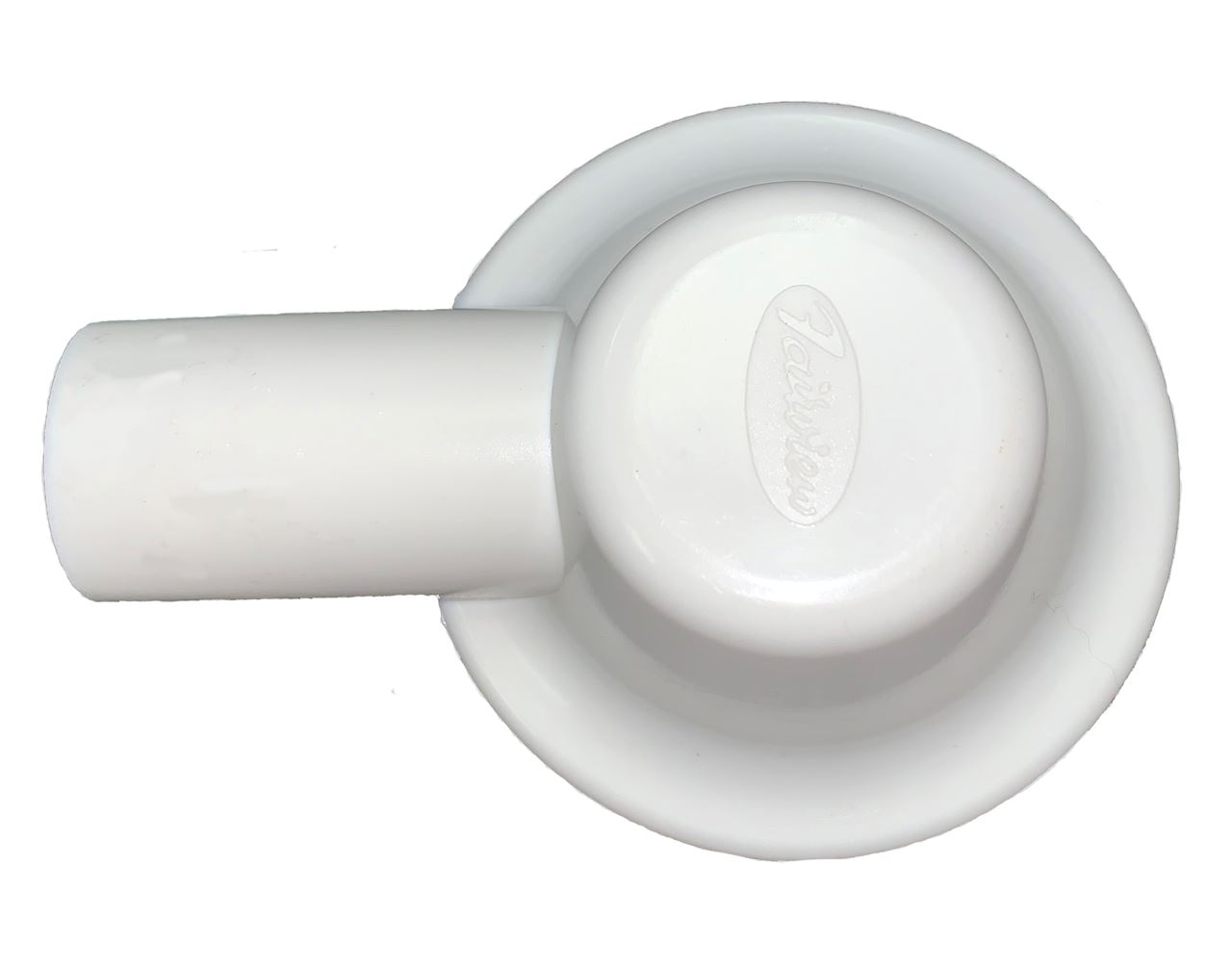

• (1) GAS-FLO® GR-5994 Protective Cover for GR-9994

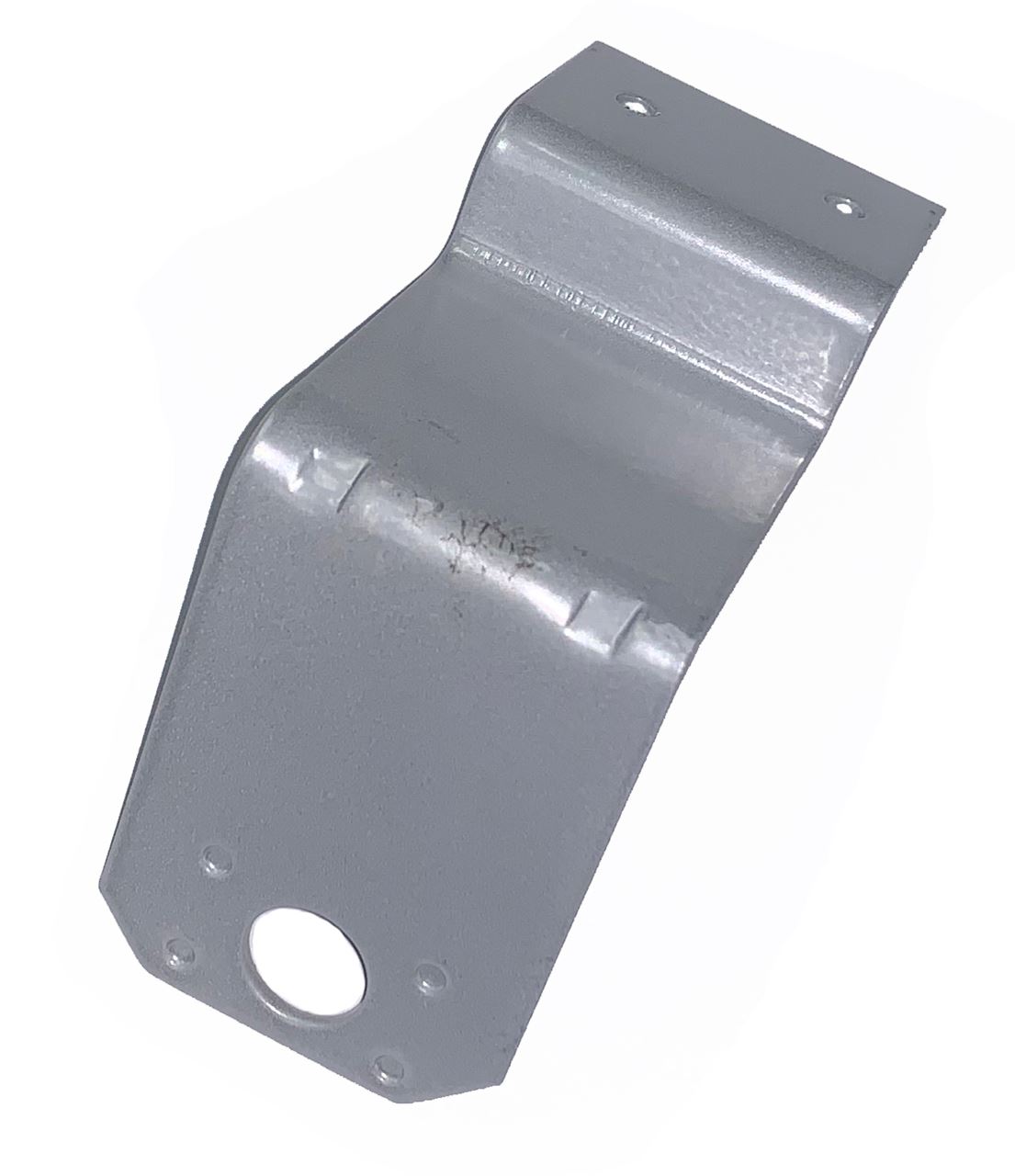

• (1) GAS-FLO® GR-RVB RV Style U Mounting Bracket
• (2) GAS-FLO® GR-SCREW Screw for Installing Brackets Onto Gas-Flo Propane Regulators

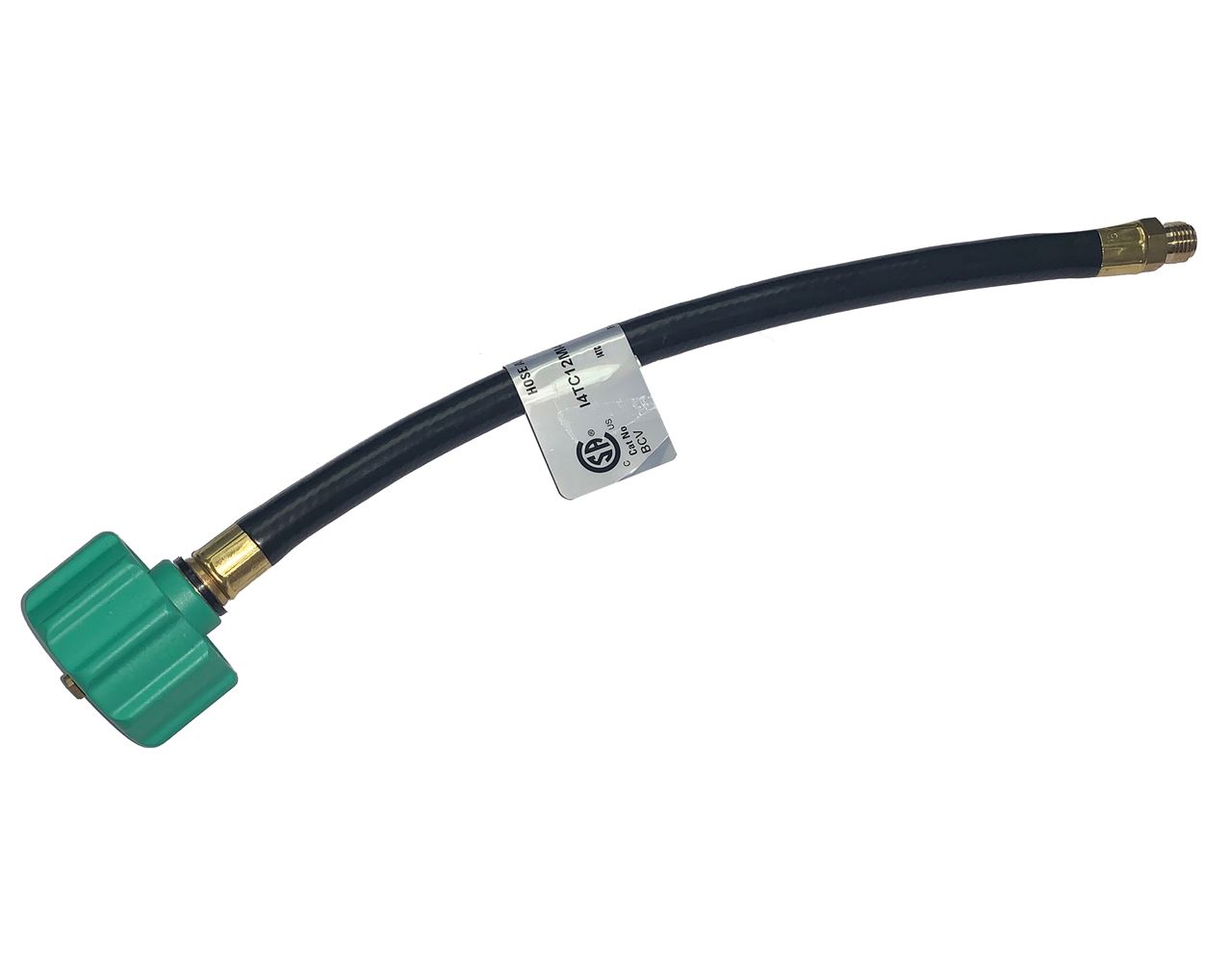

• (2) GAS-FLO® I4TC12MI4QC 1/4 ID 12" Type 1 Propane Hose Assy Thermoplastic 1/4 MI x QCC
• (1) GAS-FLO® 48-8C 1/2 Male SAE 45° flare fitting (Installed)

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlets (2): High Capacity Green QCC1 ACME
• Outlet: 1/2 Male SAE 45° flare fitting
• Capacity BTU/Hr Propane (Service Cylinder): 262,500
• Capacity BTU/Hr Propane (Reserve Cylinder): 210,000
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 2.40 lbs

Fairview Screw for Installing Brackets Onto GAS-FLO® Propane Regulators

Fairview GAS-FLO™ CP-2412 1/4” OD x 12” Short Nose POL x 1/4 MPT Copper Propane Gas Pigtail. Fairview's Short POL To 1/4 MPT Copper pigtails are ideal for use with Propane Gas

Applications:
• Propane gas copper pigtails and hogtails provide a flexible connection between the container valve and the regulator
• Solder connections Copper tube for PIGTAILS is 1/4" O.D. by .049 WALL
• Usage depends on application and requirements
• With soldered ends and a wide selection of connections and lengths

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Tube OD: 1/4”
• Approx. Length: 12”
• Tube Material: Copper
• End: Short Nose P.O.L
• End: 1/4 MPT
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 0.30 lbs

Fairview 48-8C 1/2 Tube OD x 3/8 Male Pipe Brass Connector. Fairview's Forged Brass Male Pipe Connector SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared
• Working Pressure: 750 PSI
• Material: Forged brass
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Weight: 0.08 lbs
